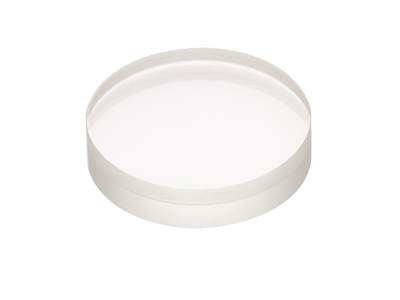

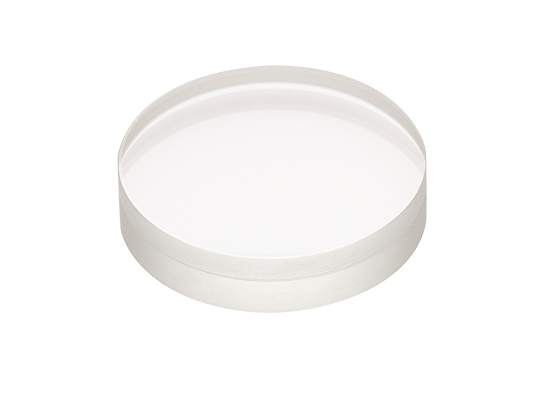

Achromatic Doublet Lens, Visible, 25.4 mm, 63.5 mm EFL, 430-700 nm

Model: PAC043AR.14

$136

3 Weeks

Compare

Product Series Overview

Visible Achromatic Lenses

The PAC043AR.14 Visible Achromatic Doublet Lens is a 430 to 700 nm antireflection coated, 1 inch (25.4 mm) diameter, N-BaF10 and N-SF10 precision achromatic doublet lens with an effective focal length of 63.5 mm. This achromat is computer designed to effectively minimize spherical aberration and coma when operating at infinite conjugate ratio, yielding smaller focused spot sizes. Unlike singlet lenses, this results in a constant focal length independent of aperture and far better off-axis performance. Achromats are superior to singlet lenses for monochromatic applications at any visible wavelength.

Specifications

Technical Specs

Lens Type
Achromatic Doublet
Lens Shape
Plano-Convex
Diameter
25.4 mm
Antireflection Coating
430-700 nm
Coating Type
Visible Multilayer
Coating Code
AR.14
Damage Threshold
1.0 J/cm² @ 1064 nm, 10 ns , 10 Hz
Transmission
T>97%
Lens Material
N-BAF10/N-SF10
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
Effective Focal Length (EFL)
63.5 mm
Back Focal Length (BFL)
58.7 mm
F/#
2.5
Radius of Curvature (R)
43.858 mm

Radius 2
-26.617 mm
Radius 3
-266.977 mm
Edge Thickness (Te)
6.3 mm
Center Thickness (Tc)
8.5 mm
Thickness, Center 1
6.5 mm
Thickness, Center 2
2.0 mm
Orientation
Steepest convex surface should face the infinite conjugate
Design Wavelengths
589 nm
Centration
≤3 arc min
Diameter Tolerance
+0/-0.1 mm
Focal Length Tolerance
±2.0%
Center Thickness Tolerance
±0.2 mm
Cleaning
See How to Clean Optics

Lens Type
Achromatic Doublet
Lens Shape
Plano-Convex
Diameter
25.4 mm
Antireflection Coating
430-700 nm
Coating Type
Visible Multilayer
Coating Code
AR.14
Damage Threshold
1.0 J/cm² @ 1064 nm, 10 ns , 10 Hz
Transmission
T>97%
Lens Material
N-BAF10/N-SF10
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ
Effective Focal Length (EFL)
63.5 mm
Back Focal Length (BFL)
58.7 mm
F/#
2.5
Radius of Curvature (R)
43.858 mm

Radius 2
-26.617 mm
Radius 3
-266.977 mm
Edge Thickness (Te)
6.3 mm
Center Thickness (Tc)
8.5 mm
Thickness, Center 1
6.5 mm
Thickness, Center 2
2.0 mm
Orientation
Steepest convex surface should face the infinite conjugate
Design Wavelengths
589 nm
Centration
≤3 arc min
Diameter Tolerance
+0/-0.1 mm
Focal Length Tolerance
±2.0%
Center Thickness Tolerance
±0.2 mm
Cleaning
See How to Clean Optics
