Sorry, this product is no longer offered for sale. It was discontinued on Oct 30, 2019

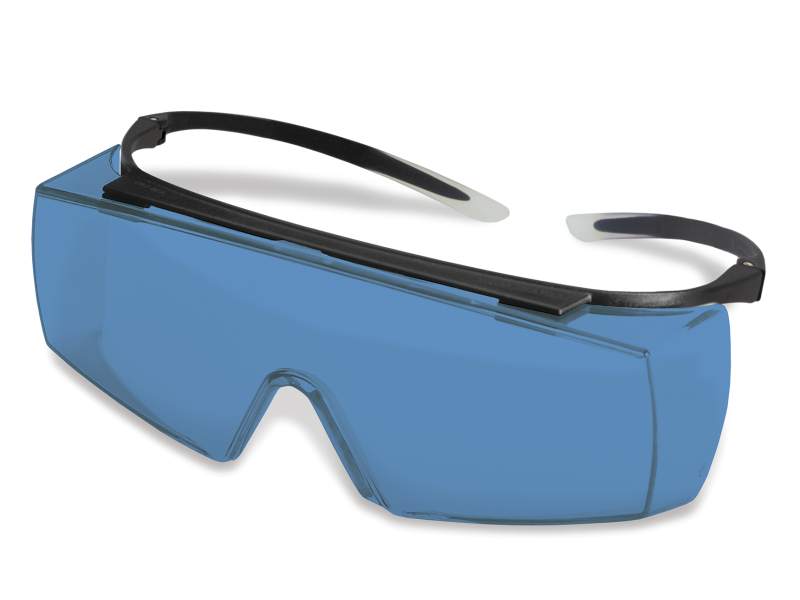

Laser Safety Glasses, Diode Alignment, 42% VLT, Polycarbonate

The LV-F22.P4B05 is for Diode Alignment. F22 style glasses with blue color polycarbonate lenses. Laservision's Polycarbonate eyewear is designed to provide excellent field-of-vision lenses with multiple wavelength coverage. 42 % VLT (visible light transmission). F22 glasses are light weight providing comfort during long term use, and easily fit over prescription eyewear. Meets ANSI Z136.1 and EN207 requirements.

Specifications

Technical Specs

Frame Style
F22 OTG Glasses
Visible Light Transmission
42%
Filter Color
Blue
Filter Type
P4B05
Optical Density
OD > 2-3 @ 610–650 nm
OD > 2 @ 650–660 nm
OD > 3 @ 660–665 nm
OD > 4 @ 665–670 nm
OD > 7 @ 670-680 nm
Laser Type
Diode Alignment

Lens Material
Polycarbonate
CE
Yes
EN207
650-660 nm (DIR LB2)
660-665 nm (DIR LB3)
665-670 nm (DIR LB4)
670-680 nm (D LB5 + IR LB7)

Frame Style
F22 OTG Glasses
Visible Light Transmission
42%
Filter Color
Blue
Filter Type
P4B05
Optical Density
OD > 2-3 @ 610–650 nm
OD > 2 @ 650–660 nm
OD > 3 @ 660–665 nm
OD > 4 @ 665–670 nm
OD > 7 @ 670-680 nm
Laser Type
Diode Alignment

Lens Material
Polycarbonate
CE
Yes
EN207
650-660 nm (DIR LB2)
660-665 nm (DIR LB3)
665-670 nm (DIR LB4)
670-680 nm (D LB5 + IR LB7)

Resources & Downloads

Literature

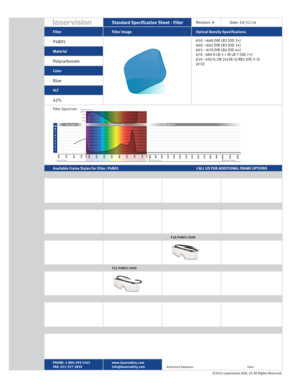

Laservision_P4B05(614.6 kB, PDF)
