Sorry, this product is no longer offered for sale. It was discontinued on Nov 22, 2021
Active Isolation Workstation, 36 x 60 x 4.3 in. PG Breadboard, 20-320 lb.

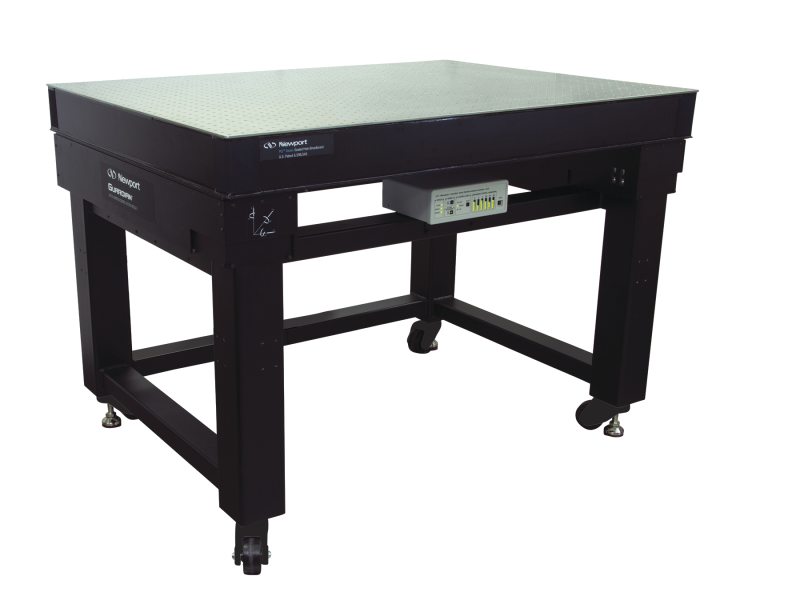

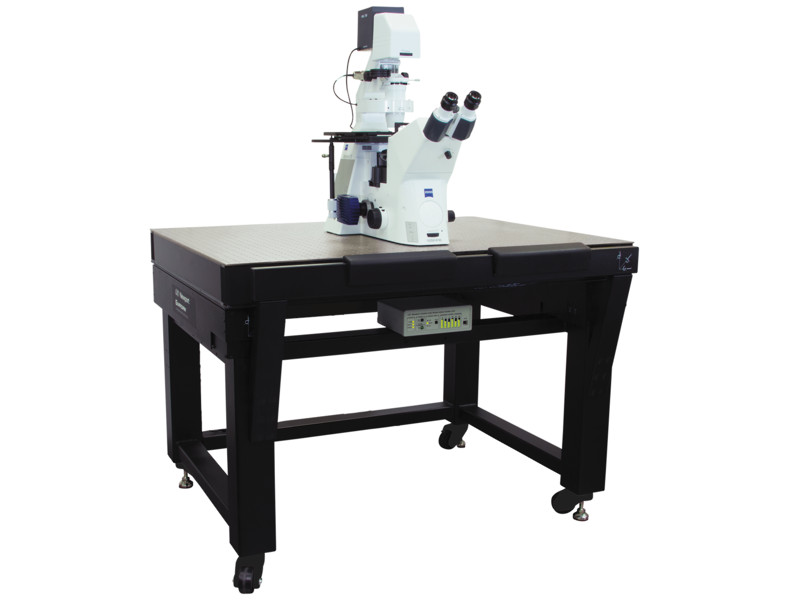

The GW3660-PG4-H Guardian® Active Isolation Workstation delivers sub-hertz vibration isolation (six degrees of freedom) in a plug-and-play form factor. The Guardian platforms dynamically respond to vibrations in the environment enabling sub-hertz vibration isolation starting at 0.5 Hz and reaching 20 dB attenuation (10X) at 1.5 Hz. The GW3648-PG4-H provides a 36 x 60 inch table surface at a working height of 34 inches. It can support a payload of up to 240 lbs. Guardian workstations feature 4 inch thick damped PG breadboards, a rigid fully welded frame with casters, integrated active and passive isolation modules, ultra-low noise electronics and advanced DSP control system, and a user friendly, computer interface. All of these features have been designed specifically to deliver high performance and improve setup and ease of use.
Specifications
Active Vibration Isolation

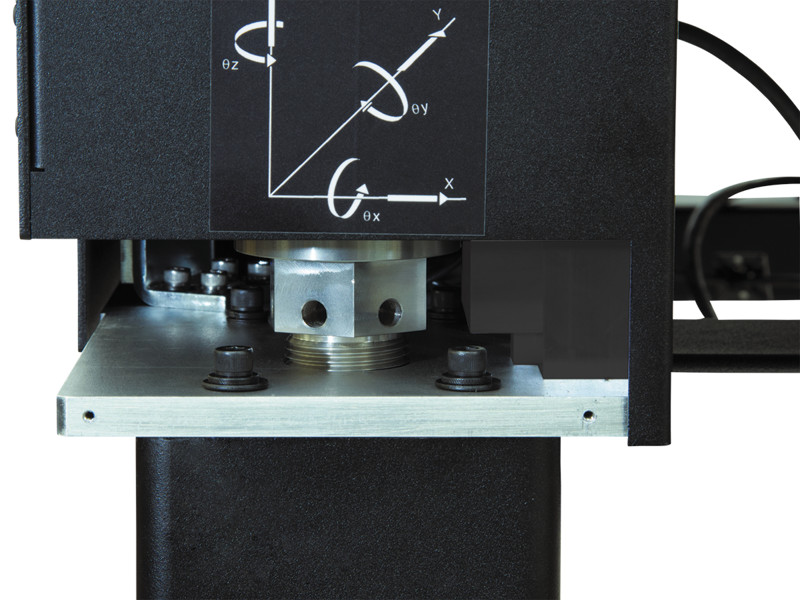

2 isolation modules each containing 3 sensors and 3 actuators
Passive Vibration Isolation
4 VIBe™ isolators
Broadband Damping
Patented modal damping, constrained layer core, damped working surface and composite edge finish
Width
36 in.
Length
60 in.
Minimum Load
0
Load Capacity
240 lb
Platform
4.3 in. Precision Grade Breadboard
Working Surface
3/16 in. thick 400 series ferromagnetic stainless steel
Surface Flatness
±0.004 in. over 2 ft. square
Mounting Holes
1/4-20
Mounting Hole Pattern
1.0 in. grid
Hole Sealing Type
Easy clean conical cup 0.75 in. deep, Non-corrosive high impact reinforced composite material
Bottom Skin Material
3/16 in. thick carbon steel
