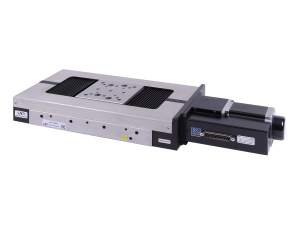

MTN Series High Load Capacity Stepper Motor Linear Translation Stages
MTN Series High Load Capacity Stepper Motor Linear Translation Stages

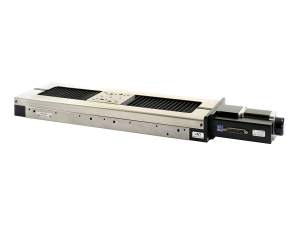

MTN linear stages are durable, all-steel construction positioners with exceptional load capacity, stiffness and thermal stability. They are designed for applications that require moving heavy loads with sub-micron precision over 100-, 200- or 300-mm travel ranges. Stepper motors are a lower cost alternative to DC servo systems for less demanding applications. These stages feature micro-stepping to improve resolution and smoothness of motion. Run open-loop, position is attained by the number of commanded steps and micro-steps.
- 100 kg load capacity and high axial load capacity up to 200 N
- All steel construction offers high stiffness and thermal stability
- Backlash-compensated, diamond-corrected leadscrew for accurate motion
- Plug and Play - ESP compatible
- Lower cost alternative to DC servo systems See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | MTN100PPMotorized Linear Stage, Steel, Stepper Motor, 100 mm Travel, M4 and M6 | |||||
 | MTN100PPV6Motorized Linear Stage, Steel, Stepper Motor, 100 mm Travel, Vacuum, M4 & M6 | |||||
 | MTN200PPMotorized Linear Stage, Steel, Stepper Motor, 200 mm Travel, M4 and M6 | |||||
| MTN200PPV6Motorized Linear Stage, Steel, Stepper Motor, 200 mm Travel, Vacuum, M4 & M6 | |||||
 | MTN300PPMotorized Linear Stage, Steel, Stepper Motor, 300 mm Travel, M4 and M6 | |||||
| MTN300PPV6Motorized Linear Stage, Steel, Stepper Motor, 300 mm Travel, Vacuum, M4 & M6 |
Notes:
Closed-loop DC Motor and Brushless DC Motor versions are also available.
Compatible Controllers
Compatible motion controllers for these stepper motor driven stages are shown below:
- XPS-RLD Motion Controller (
or Axis): Requires an Driver Module. - XPS-D Motion Controller (
, , or Axis): Requires an Driver Module. - ESP302 Motion Controller (
, , or Axis): Plug and Play compatible with ESP302 Motion Controller.
Specifications
| Models | | | | |
|---|---|---|---|---|
| Travel Range | 100 mm | 200 mm | 300 mm | |
| Maximum Speed1 | 40 mm/s | 40 mm/s | 40 mm/s | |
| Minimum Incremental Motion | 100 nm | 100 nm | 100 nm | |
| Centered Load Capacity | 1000 N | 1000 N | 1000 N | |
| Axial Load Capacity (+Cx)2 | 200 N | 200 N | 200 N | |
| Inverse Axial Load Capacity (-Cx) | -21 N | -21 N | -21 N | |
| Accuracy, Typical | ±1.5 µm | ±2.0 µm | ±2.5 µm | |
| Accuracy, Guaranteed | ±2.5 µm | ±2.5 µm | ±3.0 µm | |
| Uni-directional Repeatability, Typical | ±0.30 µm | ±0.50 µm | ±0.50 µm | |
| Uni-directional Repeatability, Guaranteed | ±0.75 µm | ±0.75 µm | ±0.75 µm | |
| Bi-directional Repeatability, Typical | ±1.75 µm | ±1.75 µm | ±1.75 µm | |
| Bi-directional Repeatability, Guaranteed | ±2.75 µm | ±2.75 µm | ±2.75 µm | |
| Pitch, Typical | ±10 µrad | ±20 µrad | ±30 µrad | |
| Pitch, Guaranteed | ±20 µrad | ±40 µrad | ±60 µrad | |
| Compliance in Pitch | 6 µrad/Nm | 6 µrad/Nm | 6 µrad/Nm | |
| Yaw, Typical | ±10 µrad | ±17 µrad | ±30 µrad | |
| Yaw, Guaranteed | ±17 µrad | ±35 µrad | ±53 µrad | |
| Compliance in Yaw | 5 µrad/Nm | 5 µrad/Nm | 5 µrad/Nm | |
| Compliance in Roll | 4 µrad/Nm | 4 µrad/Nm | 4 µrad/Nm | |
| Origin Repeatability | ±5 µm | ±5 µm | ±5 µm | |
| Cable Length | 3 m | 3 m | 3 m | |
| Thread Type | M4 and M6 | M4 and M6 | M4 and M6 | |
| Weight | 10.7 kg | 13 kg | 15.3 kg | |
| MTBF | 20,000 h (25% load, 10% duty cycle) | 20,000 h (25% load, 10% duty cycle) | 20,000 h (25% load, 10% duty cycle) | |
| RoHS |
Notes:
Also available in a vacuum compatible version MTN-PPV6.
- Maximum speed is reduced to 20 mm/sec for MTN-PPV6 versions.
- Axial load capacity is reduced to 100 N for MTN-PPV6 versions.
Features
All Steel Stage Body
Economical Micro-stepping Stepper Motor

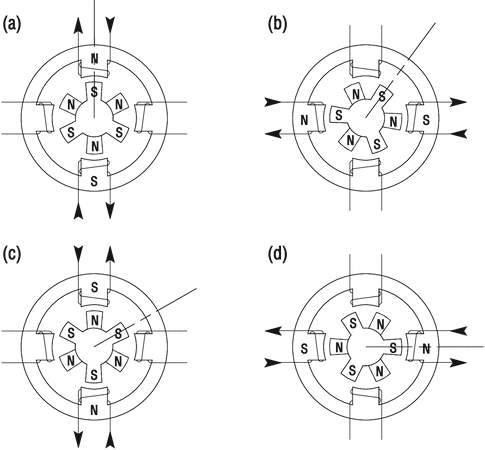

For less demanding applications, a stepper motor can be a more economical solution than a DC motor. A stepper motor operates using the basic principle of magnetic attraction and repulsion, converting digital pulses into mechanical shaft rotation. To improve the resolution and smoothness of motion, the MTN-PP and MTN-PPV6 feature micro-stepping, a method of electronically dividing a full-step of motion into a high number of partial steps.
Vacuum Compatible Versions

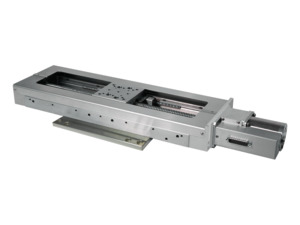

The MTN-PPV6 are the vacuum compatible versions of the MTN stepper motor stage. They can be used in a vacuum environment down to 10-6 Torr. Their performance is the same as their corresponding MTN-PP stepper motor stage, except that the maximum speed is 20 mm/sec and centered load capacity is 100 N.

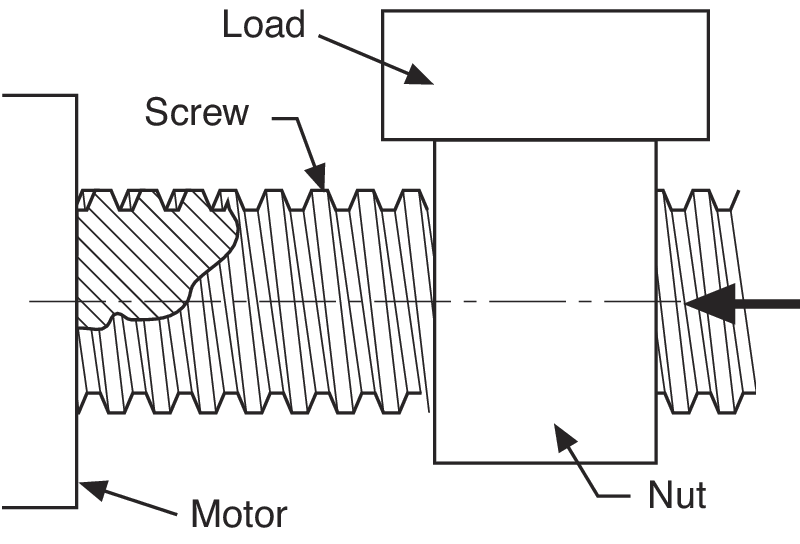

Diamond-Corrected Lead Screw and Precision-Lapped Nut
Recirculating ball bearings ensure better dynamics and lifetime, as well as equal axial load capacity in both directions.
Non-migrating Ball Cage Design
The non-migrating ball cage design eliminates cage drift, particularly in vertical applications, to enhance reliability.
Multi-Axis Stage Stacks and Table Mounting
For XY configurations of MTN stages, use the

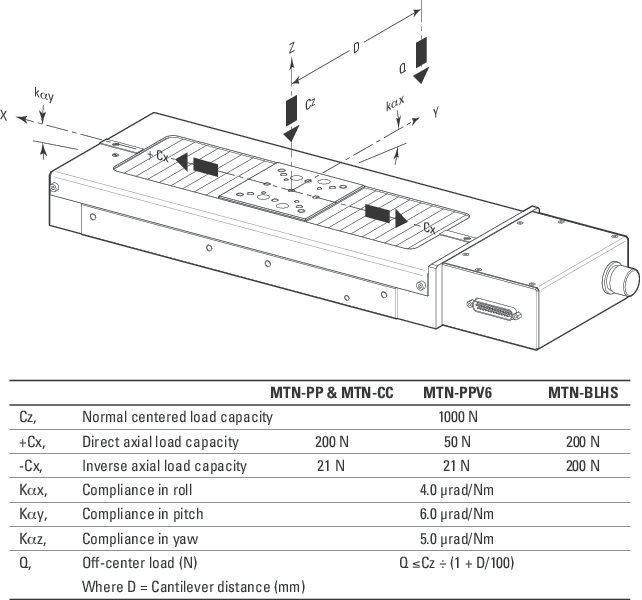

MTN Stage Load Characteristics
Individual Stage Metrology Report is Included
MTN Motor Options
MTN Series stages are available with Stepper, DC, or Brushless DC motors.
- Stepper Motor (MTN-PP): Stepper Motors are a lower cost alternative to DC motor systems for less demanding applications. Micro-stepping is used to improve resolution and smoothness of motion.
- DC Motor (MTN-CC): DC Motors are best characterized by their high speeds, smooth motion, good efficiency and a high power/weight ratio. They are preferable to stepper motor stages for applications requiring high dynamic speed and tight repeatability.
- Brushless DC Motor (MTN-BLHS): Brushless DC Motors offer faster speed and finer repeatability than standard DC motors. They are designed for applications that require moving heavy loads with high speed and repeatability
| MTN-PP (Stepper Motor) | MTN-CC (DC Motor) | MTN-BLHS (Brushless DC Motor) | |
|---|---|---|---|
| Travel Range (mm) | 100 / 200 / 300 | 100 / 200 / 300 | 100 / 200 / 300 |
| Maximum Speed (mm/s) | 40 | 100 | 250 |
| Minimum Incremental Motion (nm) | 100 | 600 | 300 |
| Uni-directional Repeatability, Guaranteed (µm) | ±0.75 | ±0.75 | ±0.3 |
| Bi-directional Repeatability, Typical (Guaranteed) (µm) | ±1.75 (±2.75) | ±0.75 (±1.5) | ±0.3 (±0.5) |
| Accuracy, Typical (Guaranteed) (µm) | ±1.5 (±2.5) / ±2.0 (±2.5) / ±2.5 (±3.0) | ±1.5 (±2.5) / ±2.0 (±2.5) / ±2.5 (±3.0) | ±2.0 (±4.0) |
Accessories
MTN Stage Mounting Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

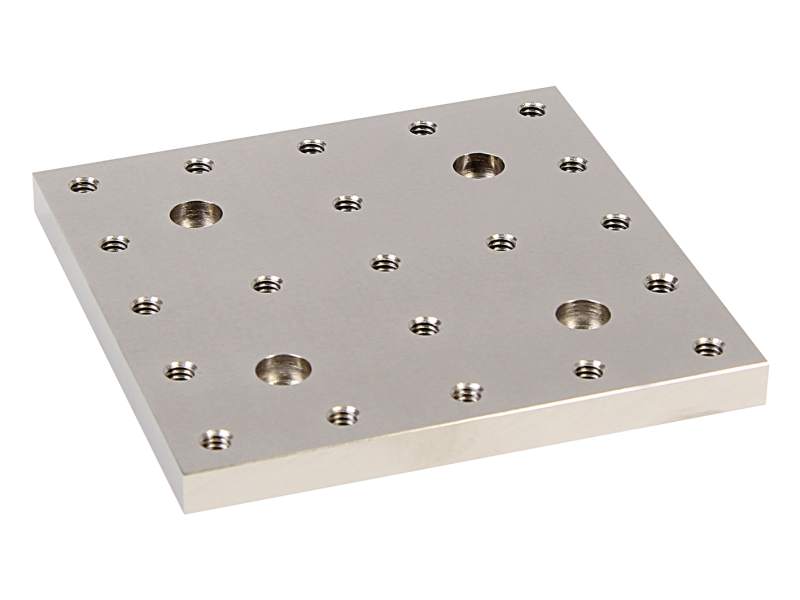

 | MTN-TPTop Plate, MTN Series Linear Stages | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

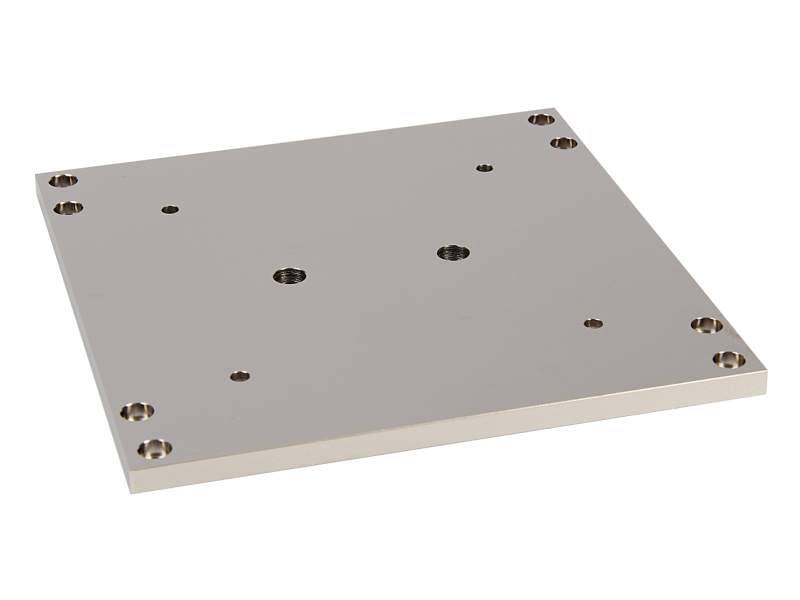

 | MTN-BPBase Plate, MTN Series Linear Stages | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

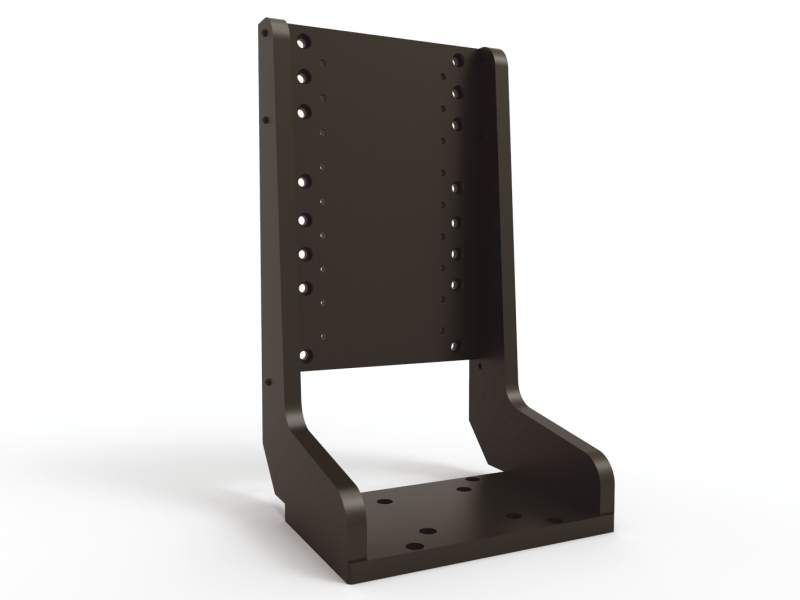

 | EQ160Right-Angle Bracket, MTN Series linear Stages | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | M-CAP-M61Captive Screws, MTN XY Mounting | FREE 2-day shipping on thousands of products on Newport.com Learn More |

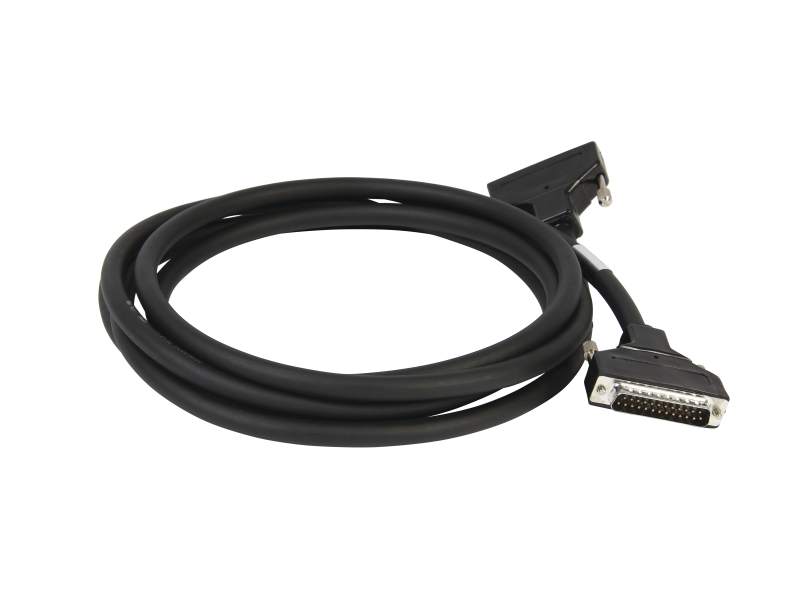

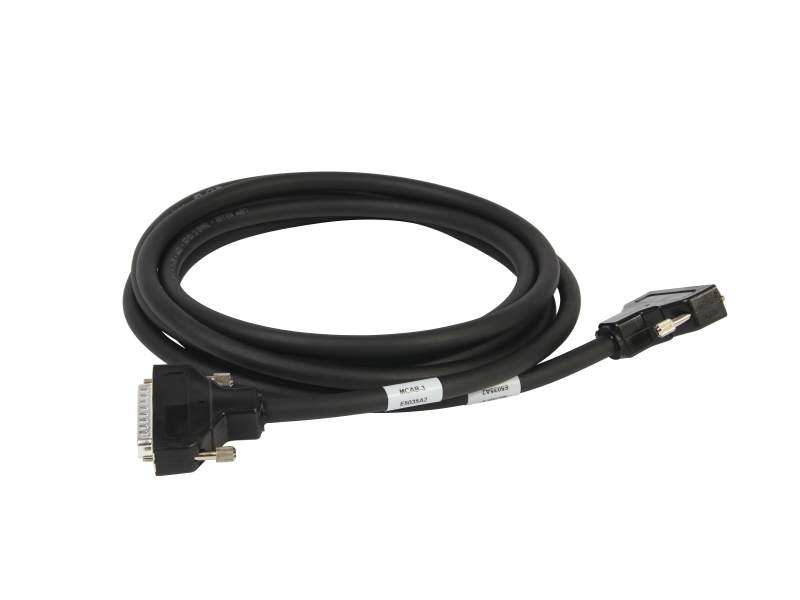

Accessories - Cables
Resources
Literature
MTN Data Sheet(1.2 MB, PDF) XPS Error Compensation Tech Note(919.6 kB, PDF)
Manuals
MTN Linear Stages User's Manual(1.6 MB, PDF)
