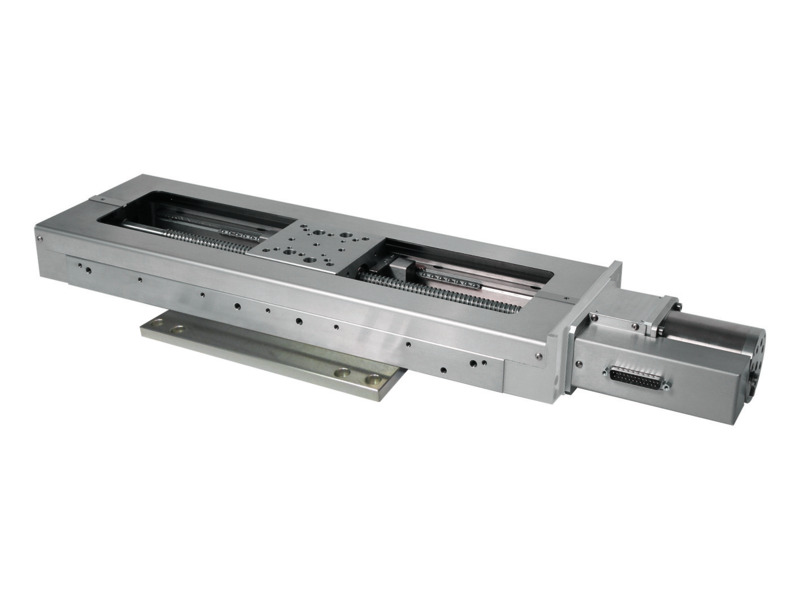

Motorized Linear Stage, Steel, Stepper Motor, 300 mm Travel, Vacuum, M4 & M6

The MTN300PPV6 Linear Stage features an all-steel construction and combines high stiffness and thermal stability with a low profile design. This stepper drive version has 300 mm of travel and 0.2 µm Minimum Incremental Motion. MTN stages can bear up to 100 kg with an exceptional high axial load capacity up to 20 N. Features include: opposing single-row bearing surface, a diamond-corrected lead screw, a matched, precision-lapped nut and a non-migrating ball cage design. The nut design includes anti-backlash preloading and a sophisticated decoupling system ensuring little to no stage movement. The non-migrating ball cage design prevents any drift in vertical applications. Vacuum compatible to 10^-6 Torr.

Note: The cable supplied with the stage is not vacuum compatible due to various feed-through configurations and customer preferences. Please contact Newport for vacuum compatible cable options.
