TGN tilt stages can be stacked together orthogonally or in-line to extend tilt range or add an additional tip axis.  Shown is two TGN80 tilt platforms in a tip/tilt configuration.

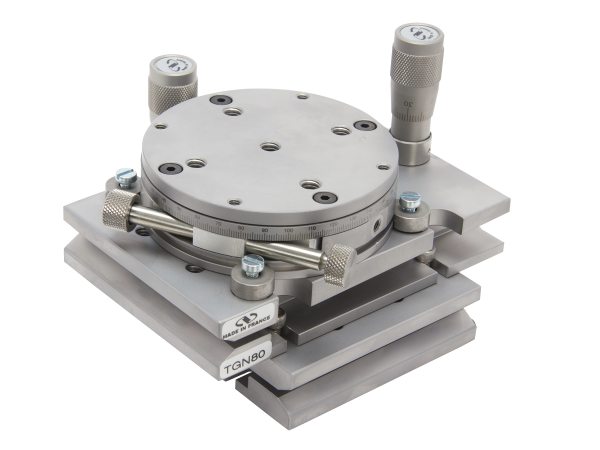

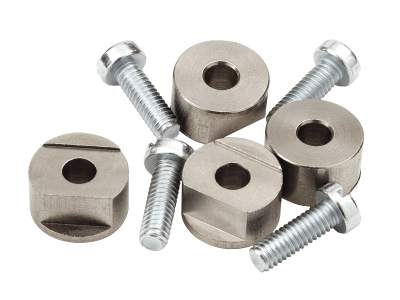

UTR series rotation stages can be mounted on top of TGN tilt stages using mounting bridles. Shown here is a UTR80-S rotation stage mounted on a TGN80 Tilt Platform stack for complete pitch, yaw, and roll adjustment.

The TGN Series Tilt Platforms are compatible with UMR Steel Linear Stages, UTR Steel Rotation Stages, and MVN Precision Vertical Stages of matching size (for example, TGN80 with UMR8.25 and UTR80, or TGN120 with UTR 120 and MVN120). They can be combined to provide multi-axis motion and can be easily adapted to fit a specific system's needs. In the picture, a six-axis manual positioning system is shown using two UMR8.25s, two TGN80s, a UTR80S, and a MVN80. (Hint: first assemble Y & Z stages from the backside of Y stage, and then connect X stage to YZ from backside of X. In both steps, the carriage of UMR stage needs to be translated to each end of the travel range to reveal access holes, please refer to UMR stage XY assembly video.)
