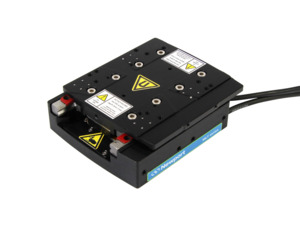

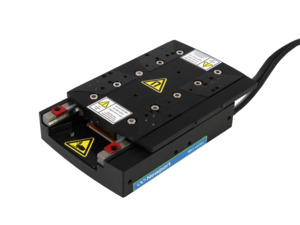

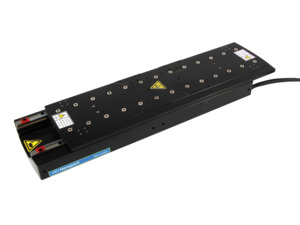

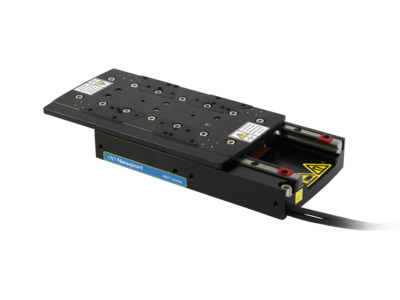

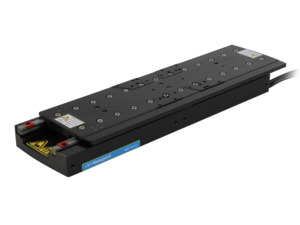

MLT Series Low-Profile High-Precision Linear Motor Stages

The MLT Series of compact, low profile, high precision linear stages bridges the ultra-precision performance of the XM family and the compact VP family of linear stages. These stages showcase the latest innovations and expertise of MKS in precision stage design for various Industrial applications, while keeping the short setups expected of motion products when used with MKS motion controllers.

The MLT stages are ideal for typical scanning or point to point applications in semiconductor, industrial or research markets for metrology, sensor test and calibration, alignment and pick-and-place assembly.

Compact, low profile, high repeatability design
Stiff, FEM-optimized aluminum body prevents thermal bending effects
Precision crossed roller bearing slides provide accurate linear motion
Plug and Play - ESP compatible
Easy to build multi-axis configuration

See All Features

Description	Compatibility	Travel Range	Avail.	Price
MLT25Motorized Linear Stage, 25 mm Travel, Linear Motor, 50 N Load, M4	METRIC	25 mm	7 Weeks	$5,543
MLT50Motorized Linear Stage, 50 mm Travel, Linear Motor, 70 N Load, M4	METRIC	50 mm	In Stock	$5,970
MLT100Motorized Linear Stage, 100 mm Travel, Linear Motor, 70 N Load, M4	METRIC	100 mm	In Stock	$6,390
MLT200Motorized Linear Stage, 200 mm Travel, Linear Motor, 70 N Load, M4	METRIC	200 mm	8 Weeks	$8,467
MLT250Motorized Linear Stage, 250 mm Travel, Linear Motor, 70 N Load, M4	METRIC	250 mm	7 Weeks	$9,807
MLT25-XYZRMotorized XYZ Stage, 25 mm Travel, Linear Motor, Right Handed	METRIC	25 mm	8 Weeks	$20,567
MLT25-XYZLMotorized XYZ Stage, 25 mm Travel, Linear Motor, Left Handed	METRIC	25 mm	7 Weeks	$20,567
MLT50-XYZLMotorized XYZ Stage, 50 mm Travel, Linear Motor, Left Handed	METRIC	50 mm	8 Weeks	$22,903

Compatible Controllers

Compatible motion controllers for these XM series linear motor/direct drive driven stages are:

XPS-RLD Motion Controller ( or Axis): Requires an Driver Module. Not compatible with XPS-RLDM (1-Axis)
XPS-D Motion Controller (, , or Axis): Requires an Driver Module.

See our Stage-Controller Compatibility technical note for complete stages and controllers compatibility.

Specifications

Models
Travel Range	25 mm	50 mm	100 mm	200 mm	250 mm
Maximum Speed	500 mm/s	500 mm/s	500 mm/s	500 mm/s	500 mm/s
Minimum Incremental Motion	5 nm	5 nm	5 nm	5 nm	5 nm
Maximum Acceleration	0.75 g	0.75 g	0.75 g	0.5 g	0.5 g
Maximum Continuous Force	3 N	3 N	3 N	3 N	3 N
Centered Load Capacity	50 N	70 N	70 N	70 N	70 N
Accuracy, Guaranteed	±0.5 µm	±0.7 µm	±1.25 µm	±2.5 µm	±3 µm
Bi-directional Repeatability, Guaranteed	±0.15 µm	±0.15 µm	±0.15 µm	±0.15 µm	±0.15 µm
Flatness, Guaranteed	±1 µm	±2 µm	±3 µm	±5 µm	±10 µm
Straightness, Guaranteed	±1 µm	±2 µm	±3 µm	±5 µm	±5 µm
Pitch, Guaranteed	±50 µrad	±75 µrad	±75 µrad	±150 µrad	±200 µrad
Yaw, Guaranteed	±50 µrad	±75 µrad	±75 µrad	±125 µrad	±150 µrad
Drive Type	Linear Motor	Linear Motor	Linear Motor	Linear Motor	Linear Motor
Thread Type	M4	M4	M4	M4	M4
Weight	1.5 kg	1.7 kg	2.1 kg	3.1 kg	3.6 kg
MTBF	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)	20,000 h (100% load, 60% duty cycle)
Compliance	RoHS 3, CE	RoHS 3, CE	RoHS 3, CE	RoHS 3, CE	RoHS 3, CE

Features

Reliable Design

Built with high strength aluminum alloy, the base of each MLT stage is optimized with Finite Element Method (FEM) for highest rigidity and best thermal performance. Select components like long life and high load crossed roller bearings, high force linear motors and high precision linear encoders are added with not only performance, but also reliability in mind. Built in limit switches prevent over travel and collision. Significant tests were conducted to ensure the high reliability performance of the MLT.

Ironless Motor

MLT series stages are equipped with MKS designed ironless motors that include hall effect sensors and thermistor in a very compact size. Compared to iron core motors, the main advantage of ironless motors is better speed stability (no cogging) and shorter settling time, which is critical for fiber alignment applications.

Low Cost of Ownership

MLT series compact, low profile and fast stages utilize less space, operate with higher accelerations and speeds, reducing operating costs. Also, due to their high reliability design they require low initial investment and need less maintenance.

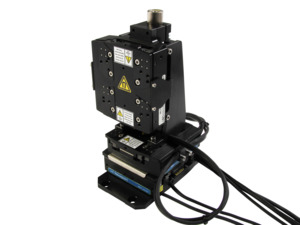

XY and XYZ Configurations

The MLT can be built into XY and XYZ stacks utilizing the available mounting holes. A magnetic shield is required between the X and Y stages. Cable chains can also be supplied as needed. Pre-assembled XYZ stacks are available in the short travel ranges. The MLT-Z stage features a magnetic counterweight to accommodate a range of vertical loads, while maintaining excellent positioning performance.

Plug and Play ESP Compatible

The MLT is compatible with XPS series standard MKS controllers that support plug and play ESP technology, making startup really easy without the need for complex driver configuration. (Note that for XY configurations, manual parameter setting is required.)

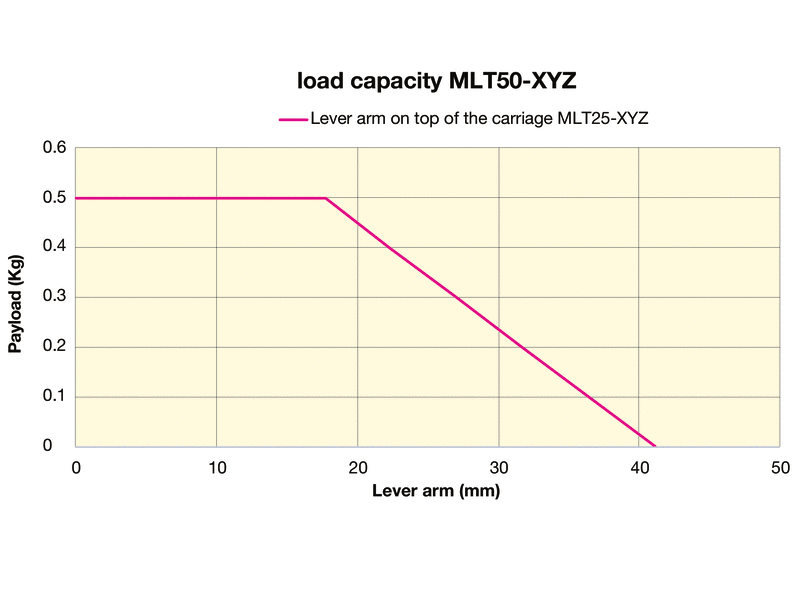

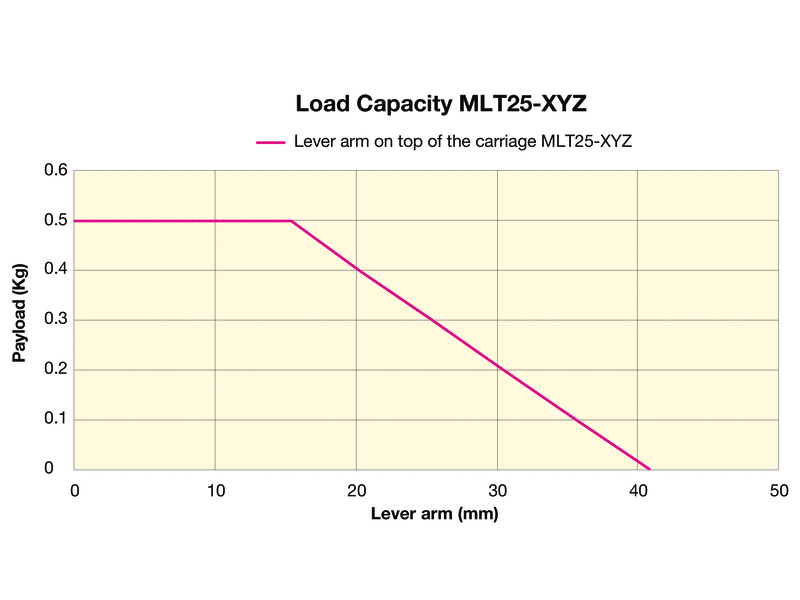

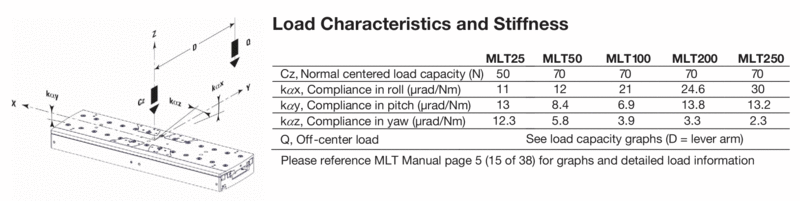

Load Characteristics

NOTE: Please reference MLT Manual page 5 (15 of 38) for graphs and detailed load information.

Accessories

Description	Compatibility	Avail.	Price

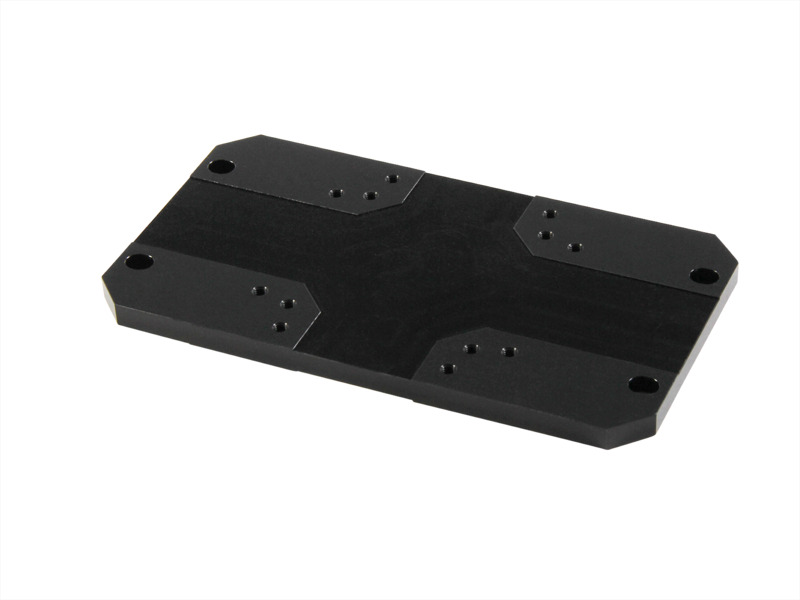

MLT-BP¹Base Plate, MLT Series Linear Stages	METRIC	7 Weeks	$392
MLT-XYPLATEMagnetic Barrier Plate, MLT Series Linear Stages	UNIVERSAL	7 Weeks	$120
MLT-CMLCable Chain Kit, MLT200 and MLT250	UNIVERSAL	7 Weeks	$381
MLT-CMSCable Chain Kit, MLT25, MLT50 and MLT100	UNIVERSAL	7 Weeks	$177
TR-M4M6-10Thread Adaptor, M6 Male to M4 Female, pack of 10	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$57

Notes:

Fits: MLT25, MLT50 & MLT100

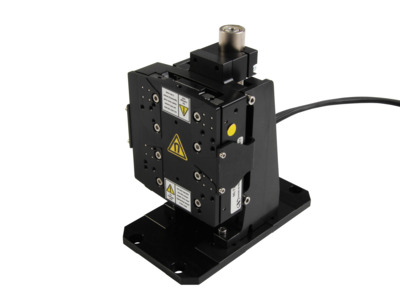

MLT Series Vertical Stage

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		MLT25-ZMotorized Vertical Stage, 25 mm Travel, Linear Motor, 5 N Load	METRIC		8 Weeks	$8,357
		MLT50-ZMotorized Vertical Stage, 50 mm Travel, Linear Motor, 5 N Load	METRIC		8 Weeks	$9,087
