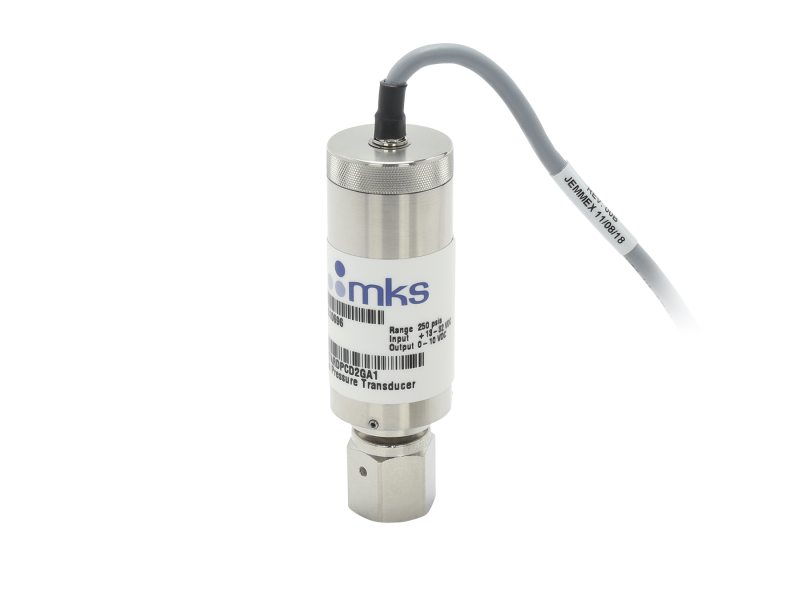

Pressure Transducer, 250 psia, Single-ended, 0-10 VDC, 4 VCR-F, DB9 on 9 in. Lead
Pressure Transducer, 250 psia, Single-ended, 0-10 VDC, 4 VCR-F, DB9 on 9 in. Lead
Model: AA07ARDPCD2GA1
Specifications
- TypePressure Transducer
- Measurement TypeAbsolute
- ConfigurationSingle-ended
- Full Scale Pressure Range250 psia
- Accuracy1.0% of Reading
- Zero Temperature Coefficient0.02% of Full Scale/°C
- Span Temperature Coefficient0.04% of Reading/°C
- Operating Temperature Range0 - 50°C
- Overpressure Limit375 psia
- Burst Pressure2,500 psia
- Exposed MaterialsIncoloy®
- Power Requirements13 - 32 VDC
- Analog Output0-10 VDC
- Electrical Connector9-pin Type D Connector on 9 in. Flying Lead
- Fitting Type4 VCR female
- Surface Finish<5 µin Ra
- Enclosure RatingIndoor Use
- CE CertifiedYes
