UZ Series Precision Vertical Linear Stages
UZ Series Precision Vertical Linear Stages

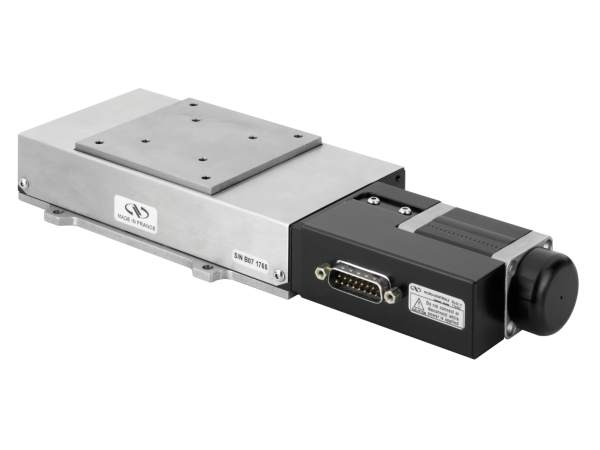

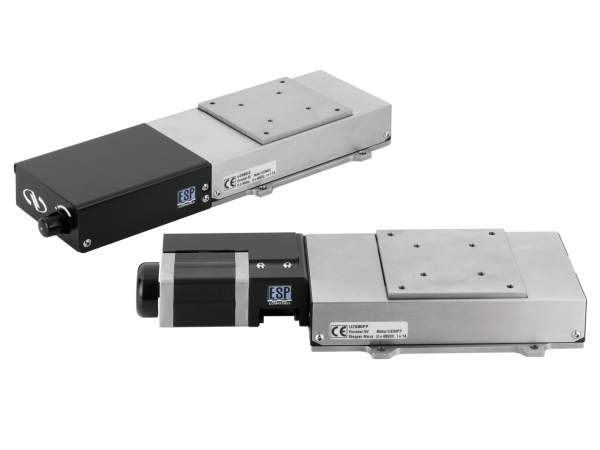

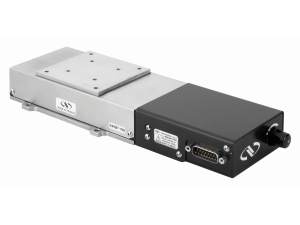

The all-steel UZS Series of vertical stages offers the most compact design and allows for unobstructed access to the load from any direction. It is also the most economical alternative to other motorized vertical stages.
- All steel for high stiffness, thermal stability, repeatable positioning and durability
- Unobstructed access to moving platform from any direction
- Screw mounted rotary encoder of CC version produces sub-micron MIM
- Plug and Play – ESP compatible See All Features
Compatible Controllers
Compatible motion controllers for the UZS stages are:
- XPS-RLD Motion Controller (
or Axis): Requires an Driver Module. - XPS-D Motion Controller (
, , or Axis): Requires an Driver Module. - ESP302 Motion Controller (
, , or Axis): Plug and Play compatible with ESP302 Motion Controller.
The UZS80CC is compatible with the
The maximum power consumption of the UZS80CC stage is 40 W, and the UZS80PP stage is 20 W.
Specifications
Features
All Steel Construction
A full steel body allows for a more compact design with exceptional stiffness-to-weight ratio, greater thermal stability and high load capacity.
High-resolution Vertical Motion

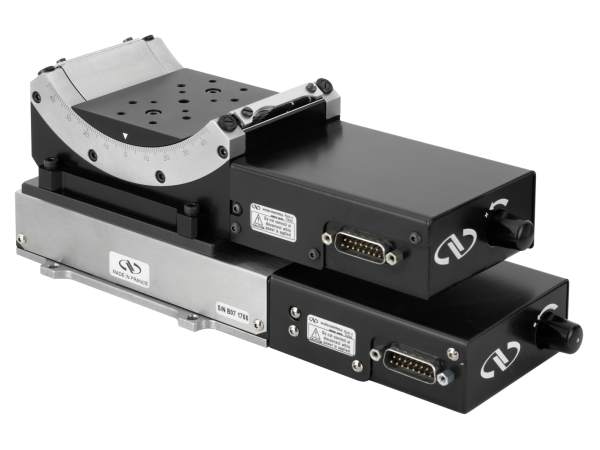

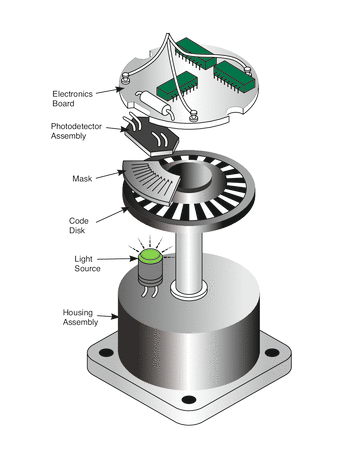

In order to ensure consistent operation under high loads, the UZS80CC with DC motor is equipped with a precision leadscrew and a 4,000 cts/rev rotary encoder, producing sub-micron MIM performance. The UZS80PP utilizes an open-loop stepper motor with high micro-stepping capability, resulting in sub-micron MIM.
Plug and Play - ESP compatible
The UZS is an ESP-compatible stage. When connected to a Newport controller, it is quickly recognized and its operating parameters are configured without the need for user input. This Plug and Play feature is not only transparent to the use, but it also ensures the safe operation of the stage.
Most Compact Design
With a height of less than 40 mm and footprint of about 261 x 81 mm, the UZS highlights a small footprint and lowest profile out of any vertical stage. The lower-profile platform design also allows for unobstructed access to the load from any direction.
Economical Choice
Metrology Report Included at No Additional Cost

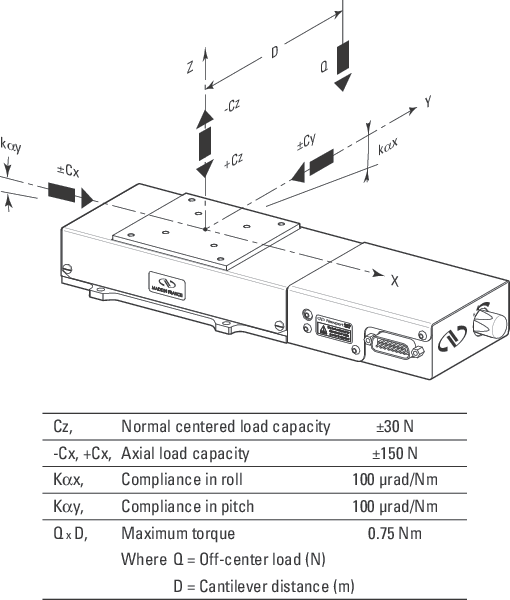

UZS Stage Load Characteristics
Accessories
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

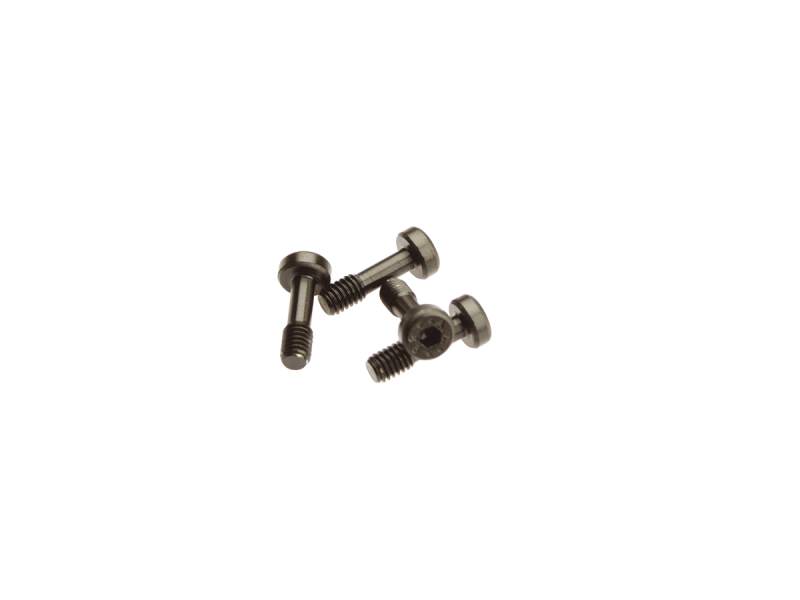

 | M-CAP-M41Captive Screws, Set of 4 , XY Assemblies | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

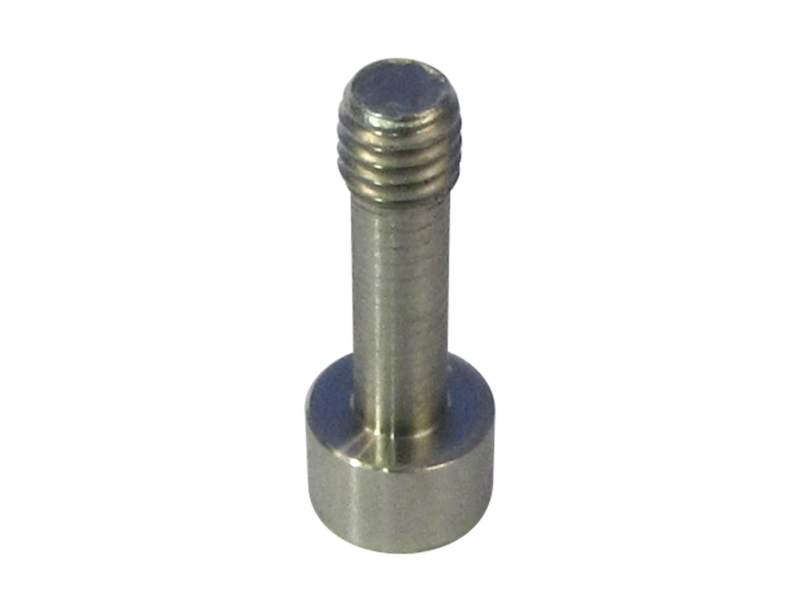

 | M-CAP-M61Captive Screws, MTN XY Mounting | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

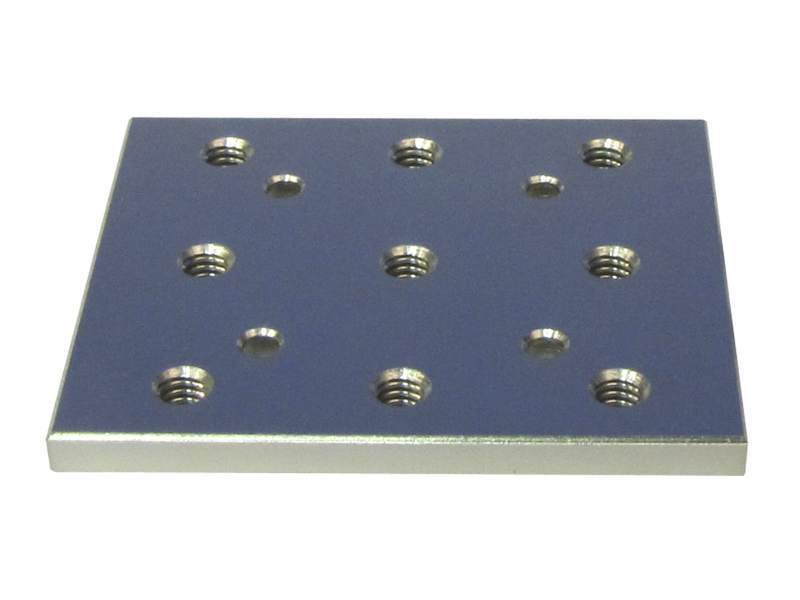

 | UTS-TPTop Plate, UTS Stages with English Holes | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

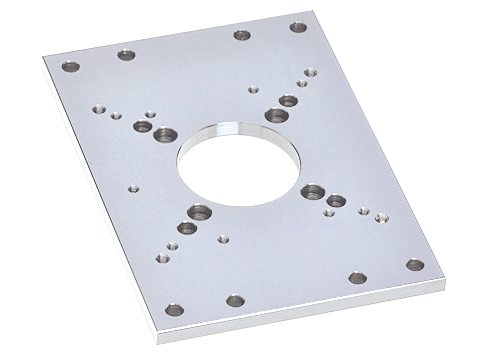

 | M-PBN12Base Plate, Used with UMR12 Series, MVN120 & UTR120 Series | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
