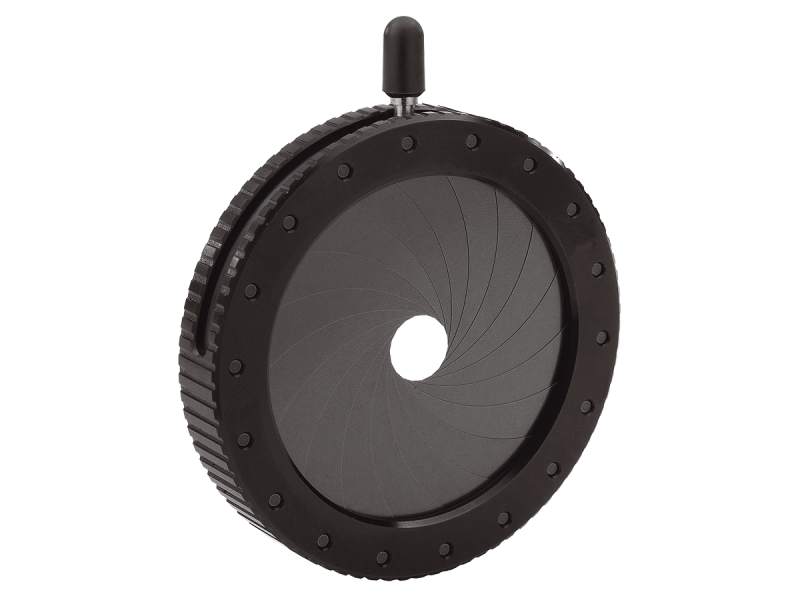

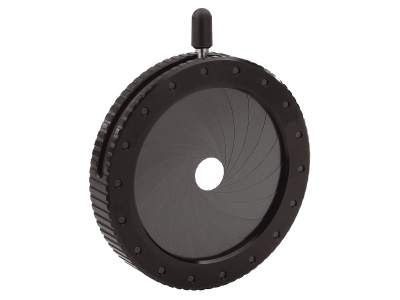

Iris Diaphragm, Continuously Variable 5 to 49 mm Aperture

Model: M-DI47.50

$251

In Stock

Compare

Add to List

Product Series Overview

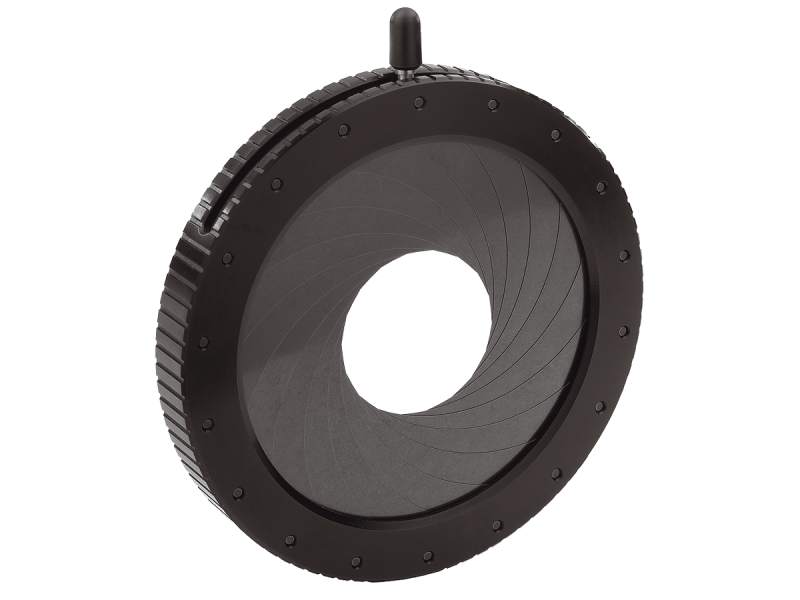

Ring Actuated Iris Diaphragms

The M-DI47.50 Iris Diaphragm has a continuously variable 5 to 49 mm aperture for applications including adjusting the numerical aperture of a lens, aligning a laser beam, or controlling the intensity of a diffuse beam. It may also be used as a baffle to reduce spurious reflections and scattered light. Designed for smooth adjustment and the best possible aperture shape, each iris consists of an array of curved leaves whose orientation is determined by the relative position of two rings. Rotating the outer knurled ring adjusts the aperture without risk of obstructing the beam path. The M4-threaded stud allows the iris diaphragm to be mounted on a metric SP or MSP Post. These iris diaphragms are also compatible with X26 Rail System components.

Specifications

Technical Specs

Type

Ring-Actuated Iris Diaphragm
Minimum Aperture

5 mm
Maximum Aperture

49 mm

Thread Type

M4
Optical Axis Height

33.5 mm

Type

Ring-Actuated Iris Diaphragm
Minimum Aperture

5 mm
Maximum Aperture

49 mm

Thread Type

M4
Optical Axis Height

33.5 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

DI47-S (182.4 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40
CCL-1 Cable Clamps, Qty 5 Short and 5 Long	UNIVERSAL	In Stock	$48
BB-L Optical Beam Block, Tool Holder, Magnetic-Base, Large	UNIVERSAL	In Stock	$42
M-BDK-1 Ball Driver Tool Set, Includes: 1.5, 2, 2.5, 3, 4 & 5 mm Wrenches	METRIC	In Stock	$38
M-SK-A Socket Head Cap Screw Kit, Stainless Steel, M4 & M6, Qty 805	UNIVERSAL	In Stock	$128

Similar

Description	Compatibility	Avail.	Price
ID-0.5 Iris Diaphragm, 1 to 11 mm Aperture Range, 10 Leaves	UNIVERSAL	In Stock	$54
M-DI47.68 Iris Diaphragm, Continuously Variable 7 to 73 mm Aperture	UNIVERSAL	In Stock	$264
M-ID-1.0 Iris Diaphragm, 1.5 - 25 mm Aperture Range, M4 Thread, 14 Leaves	METRIC	In Stock	$71
M-ID-1.5 Iris Diaphragm, 2.4 - 41.3 mm Aperture, M4 Thread, 18 Leaves	METRIC	In Stock	$99

Compatible

Description	Compatibility	Avail.	Price
M-PS-2 Optical Pedestal, 50.8 mm Height, 25.4 mm Diameter, M4 Thread	METRIC	2 Weeks	$30
M-SP-2 Optical Post, 50.8 mm Height, 12.7 mm Diameter, M4 and M6 Threads	METRIC	In Stock	$6
VPHV-2-F Optical Post Holder, Composite, Clamping Fork, 2.0 in. Height	UNIVERSAL	Contact Us	$17.90
M-VPH-2 Optical Post Holder, No Slip, 50.8 mm Height, 12.7 mm Posts, M6 Thread	METRIC	In Stock	$17.90
