The light-weight aluminum construction translates using stainless steel ball bearings running along opposing pairs of polished stainless steel rods. The stages are also spring loaded against the drive actuator for backlash free motion. For the lower load capacity of the lightweight stage, this offers exceptional straightness of travel over the full 0.5-in. (or 13 mm) travel range, with <150 µrad deviation.

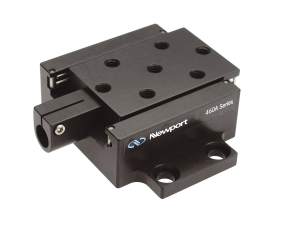

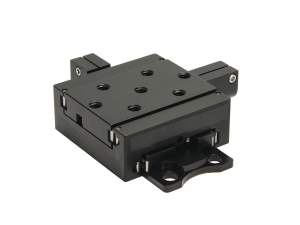

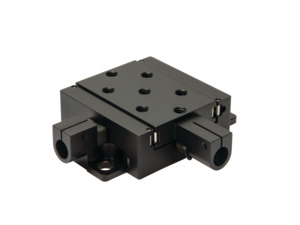

Most standard stages mount beneath the translating component, requiring proper positioning to expose the mounting through holes. With the 460A Series Quick-Mount Linear Stages, however, convenient external mounting tabs eliminate this need. These stages offer the easiest mounting, regardless of the stage's initial position, for fast implementation into optical systems.

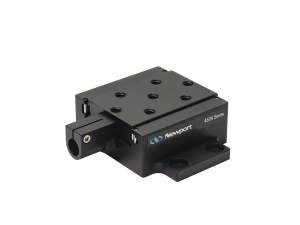

Both X and XY configurations of these stages have the same minimum profile height of 1 in. to fit easily anywhere. Stainless steel actuator mounts are compatible with either manual or motorized actuators to accommodate your precision needs, sold with (-MIC models) or without actuators included.

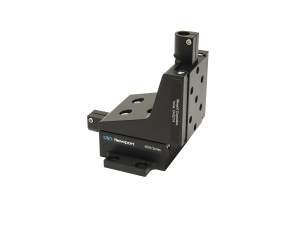

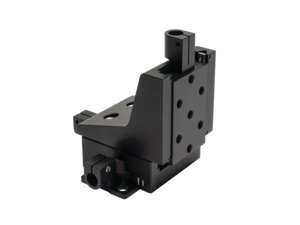

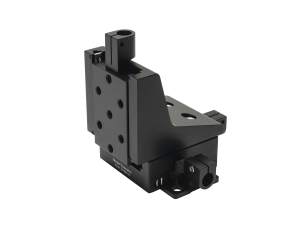

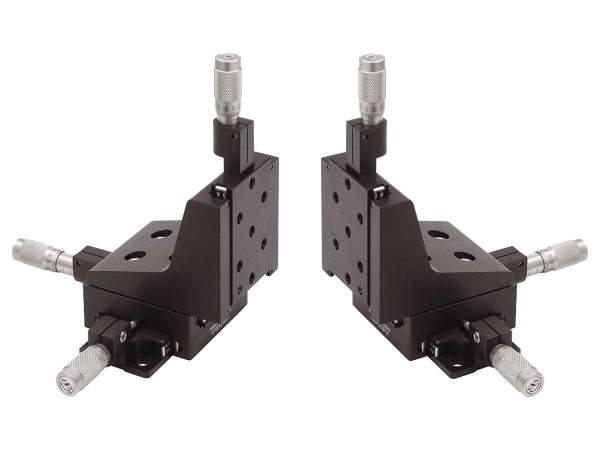

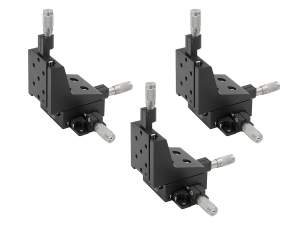

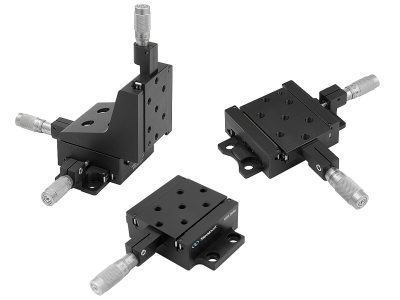

Multiple configurations for these stages are available to match your specific requirements: X, XY, XZ and XYZ. The integrated vertical stage and angle bracket is user removable allowing conversion of an XYZ stage to an XY stage, or conversion of an XZ stage to an X stage. XYZ stage is offered with a choice between left-handed and right-handed.

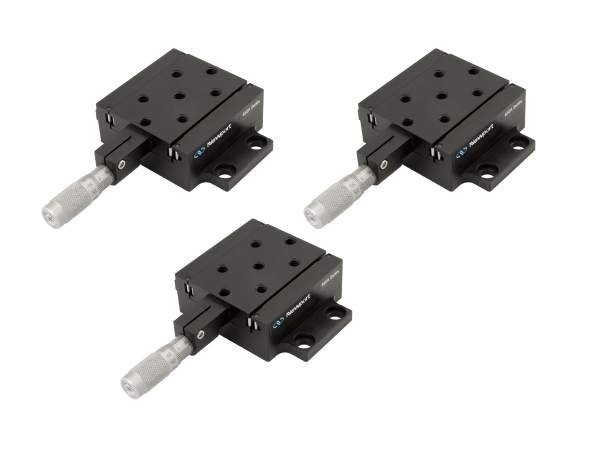

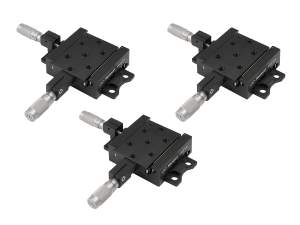

We offer a special bundle of three (M-)460A-X, (M-)460A-XY, or (M-)460A-XYZ stages with the recommended SM-13 actuators included.  When you purchase the bundle, you get all the SM-13 micrometers for free!
