Visible Antireflection Coated Achromatic Aspherical Lenses

Aspherical achromatic lenses consist of two cemented elements which provide superior color correction and the smallest RMS spot size closest to the diffraction limit. The second element of the achromatic lens is aspherical to reduce wavefront errors arising from standard spherical achromats.

425-675 nm visible antireflection coating
Superior color correction performance than standard achromats
Minimize spherical aberration for monochromatic sources
Ideal for coupling from broadband multimode fibers or extended sources
Similar spherical aberration correction to machined aspheres
Superior performance to singlet lenses

See All Features

Show Filters:

Showing 9 of 9 total products

Compatibility:

Description	Compatibility	Diameter	Lens Material	Effective Focal Length (EFL)	Price

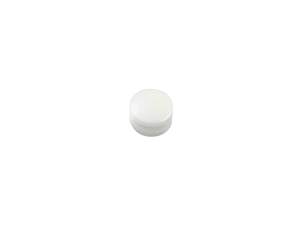

APAC10Aspherical Lenses, Achromatic, 9.00 mm Diameter, 12.00 mm EFL	UNIVERSAL	9.0 mm	N-LaK8/N-SF57	12.0 mm	$178
APAC11Aspherical Lenses, Achromatic, 9.00 mm Diameter, 18.00 mm EFL	UNIVERSAL	9.0 mm	N-LaK8/N-SF57	18.0 mm	$178
APAC12Aspherical Lenses, Achromatic, 12.50 mm Diameter, 14.00 mm EFL	UNIVERSAL	12.5 mm	S-FSL5/N-SF57	14.0 mm	$191
APAC13Aspherical Lenses, Achromatic, 12.50 mm Diameter, 20.00 mm EFL	UNIVERSAL	12.5 mm	N-LaK8/N-SF57	20.0 mm	$191
APAC14Aspherical Lenses, Achromatic, 12.50 mm Diameter, 25.00 mm EFL	UNIVERSAL	12.5 mm	N-LaK8/N-SF57	25.0 mm	$191
APAC15Aspherical Lenses, Achromatic, 25.00 mm Diameter, 30.00 mm EFL	UNIVERSAL	25.0 mm	N-LaK14/N-SF57	30.0 mm	$205

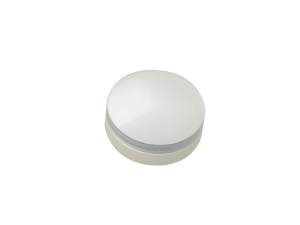

APAC16Aspherical Lenses, Achromatic, 25.00 mm Diameter, 35.00 mm EFL	UNIVERSAL	25.0 mm	N-LaK8/N-SF57	35.0 mm	$205
APAC17Aspherical Lenses, Achromatic, 25.00 mm Diameter, 40.00 mm EFL	UNIVERSAL	25.0 mm	N-SK14/N-SF57	40.0 mm	$205
APAC18Aspherical Lenses, Achromatic, 25.00 mm Diameter, 50.00 mm EFL	UNIVERSAL	25.0 mm	S-FSL5/S-TIH13	50.0 mm	$205

Mounting Options

We offer a full range of optical lens mounts to meet various experimental requirements. Below lists the recommended mounts for spherical lenses of standard sizes. Please see our Lens Mount Guide for additional information.

Note: besides the diameter, please check the Edge Thickness (T_e) specification of the lens and the lens mount to ensure compatibility before purchasing.

Lens Diameter	A-Line™ Lens Mounts	LT Series Lens Tubes	LP Series Lens Positioners	Optics Cage Plus Series
76.2 mm	()	N/A	N/A	N/A
50.8 mm	()			N/A
38.1 mm	()	LT20 lens tube with adapter	LP-2 lens positioner with adapter	N/A
25.4 mm	()
12.7 mm	()			N/A
6.35 mm	with adapter	LT05 lens tube with adapter	LP-05 lens positioner with adapter	N/A

For non-standard sizes not listed above, check out our variable size lens mounts.

Specifications

Lens Type
Achromatic Doublet
Lens Shape
Plano-Convex

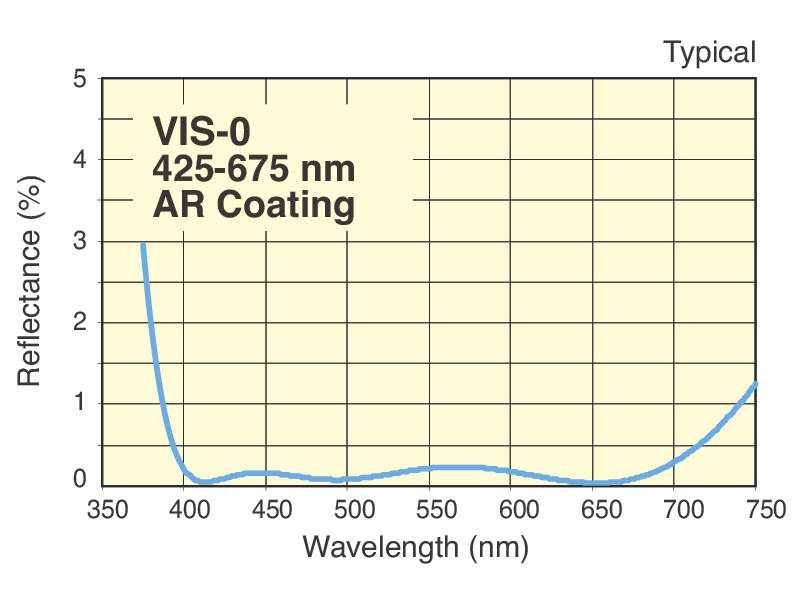

Antireflection Coating
425-675 nm
Coating Type
Visible Multilayer
Coating Code
Vis-0 Front

Damage Threshold
1.0 J/cm² @ 1064 nm, 10 ns , 10 Hz
Surface Quality
40-20 scratch-dig
Diameter Tolerance
+0.0/-0.05 mm
Clear Aperture
90% of central diameter
Cleaning
See How to Clean Aspherical Achromats.

Features

Achromatic Asphere Design

Aspherical achromatic lenses consist of two cemented elements, a positive low-index crown glass lens element cemented to a negative high-index flint glass lens element. These elements are carefully selected to cancel chromatic aberration at two well separated wavelengths; which provide superior color correction and the smallest RMS spot size closest to the diffraction limit. The second element of the achromatic lens is aspherical to reduce wavefront errors arising from standard spherical achromats. These aspherical achromatic lenses are the ideal choice for imaging, fiber coupling, scanning, and other applications that use a broadband laser or white light sources.

Broadband Visible AR Coatings

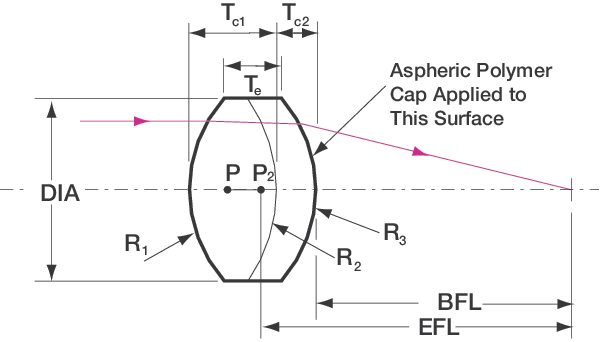

Achromatic aspheres utilize a broadband visible coating on the front side to provide optimal transmission. The antireflection coating is applied to the front surface, whereas the back surface has a molded aspheric polymer cap with a protective seal.

Design Wavelengths

These lenses can be used within the wavelength regime of 400-2000nm. However, the color and spherical aberration correction is only optimized over the wavelength regime of 400-700nm. The Aspherical achromatic lenses not only have superior color correction compared to standard achromats, but also have very similar spherical aberration corrections to those of machined aspheres.
