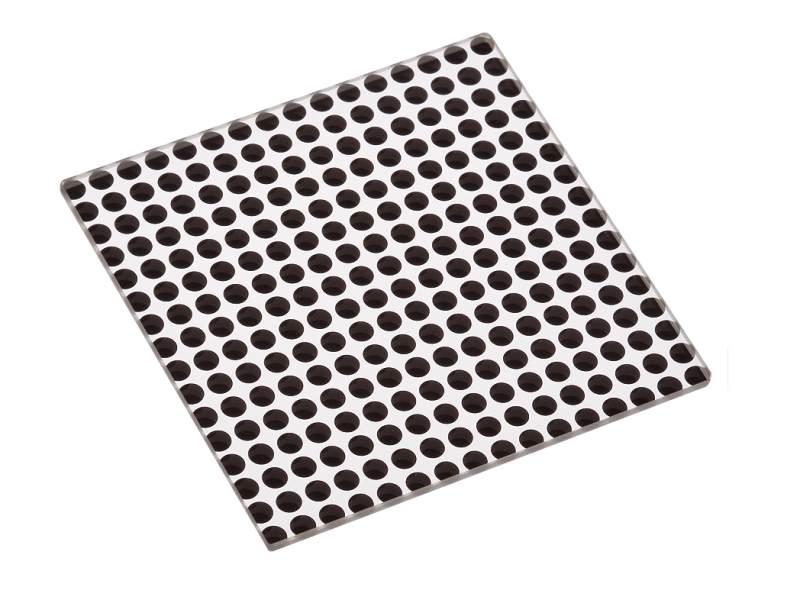

Polka Dot Beamsplitter, 50.8 x 50.8 mm, 250-2500 nm

The PDOT-2 Polka Dot Beamsplitter is a 2.0 x 2.0 inch (50.8 x 50.8 mm), 50/50 polka dot beamsplitter optimized for 250-2500 nm. Our 50/50 Polka Dot Beamsplitters are UV fused silica substrates coated with aluminum and SiO protective overcoat in a polka dot pattern. Optimized for white light illumination applications, they provide two unique advantages over traditional dielectric beam splitters: they are neutral over the wavelength range of the fused silica substrate and the aluminum coating, and they are not sensitive to angle of incidence changes.

Specifications

Technical Specs

Wavelength Range
250-2500 nm
Size
50.8 x 50.8 mm
Material
UV Grade Fused Silica
Angle of Incidence
0 - 45°
Surface Flatness
1λ wave both sides @ 632.8 nm
Surface Quality
60-40 scratch-dig
Thickness
1.6 mm

Thickness Tolerance
±0.20 mm
Parallelism
30 arc sec
Cleaning
See How to Clean Optics
Coating Type
Al(SiO)
Size Tolerance
+0/-0.25 mm

Wavelength Range
250-2500 nm
Size
50.8 x 50.8 mm
Material
UV Grade Fused Silica
Angle of Incidence
0 - 45°
Surface Flatness
1λ wave both sides @ 632.8 nm
Surface Quality
60-40 scratch-dig
Thickness
1.6 mm

Thickness Tolerance
±0.20 mm
Parallelism
30 arc sec
Cleaning
See How to Clean Optics
Coating Type
Al(SiO)
Size Tolerance
+0/-0.25 mm

Resources & Downloads

Other

PDOT-2 RoHS Certificate(263.2 kB, PDF)
PDOT-2_ROHS2-2021.pdf(279.7 kB, PDF)
