RMS Threaded Platinum Iridium Pinholes
RMS Threaded Platinum Iridium Pinholes

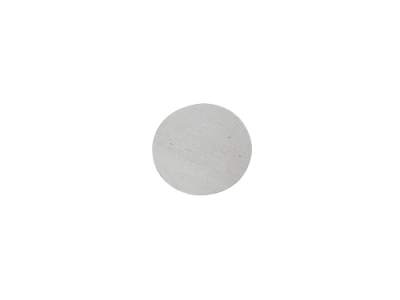

These pinholes are made from ultra-thin platinum iridium are available either mounted or unmounted. The mounted versions have a 20.25 RMS male thread to fit into the The SB18YZ Pinhole Positioner. Unmounted versions are available as replacements.
- Ultra-thin Platinum Iridium pinholes
- Mounted for use with the SB18YZ objective positioners
- 20.25 RMS male thread See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | PNH-5Pinhole, Platinum Iridium, 5 µm, RMS Thread | In Stock | ||||
| PNH-10Pinhole, Platinum Iridium, 10 µm, RMS Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| PNH-15Pinhole, Platinum Iridium, 15 µm, RMS Thread | |||||
| PNH-20Pinhole, Platinum Iridium, 20 µm, RMS Thread | In Stock | ||||
| PNH-30Pinhole, Platinum Iridium, 30 µm, RMS Thread | In Stock | ||||
| PNH-50Pinhole, Platinum Iridium, 50 µm, RMS Thread | |||||
| PNH-80Pinhole, Platinum Iridium, 80 µm, RMS Thread | |||||
| PNH-100Pinhole, Platinum Iridium, 100 µm, RMS Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| PNH-150Pinhole, Platinum Iridium, 150 µm, RMS Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| PNH-200Pinhole, Platinum Iridium, 200 µm, RMS Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Specifications
- TypeMounted Pinhole
- Thread TypeRMS
- MaterialPlatinum Iridium
- Diameter2.0 mm
- Diameter Tolerance+0/-0.02 mm
- Thickness0.6 mm
Features
Compatible with SB18YZ Pinhole Positioners
These Platinum Iridium pinholes feature a 20.25 RMS male threaded housing for use with our SB18YZ Series objective and pinhole positioners.
Accessories

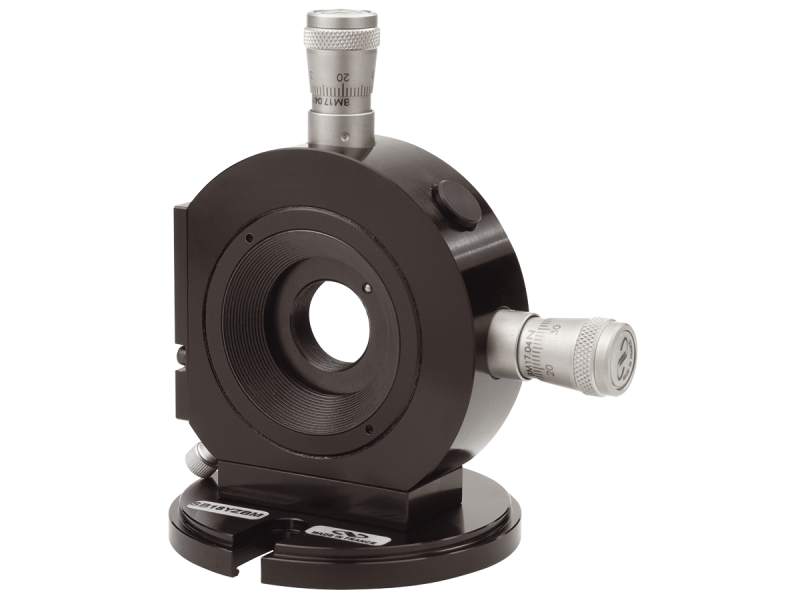

Compatible Pinhole Positioners
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SB18YZBMXY Optic Positioner, Precision, BM Micrometers | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SB18YZBDXY Optic Positioner, Precision, BD Differential Micrometers | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SB18YZBHCXY Optic Positioner, Precision, BHC Lockable Adjustment Screws | In Stock | ||||
 | SB18YZNXY Optic Positioner, Precision, Actuators Not Included | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
