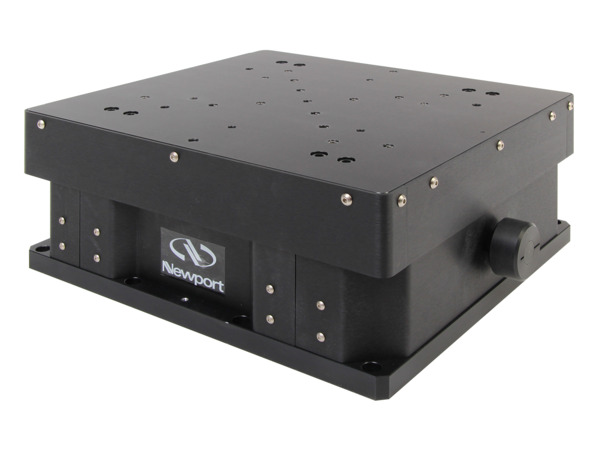

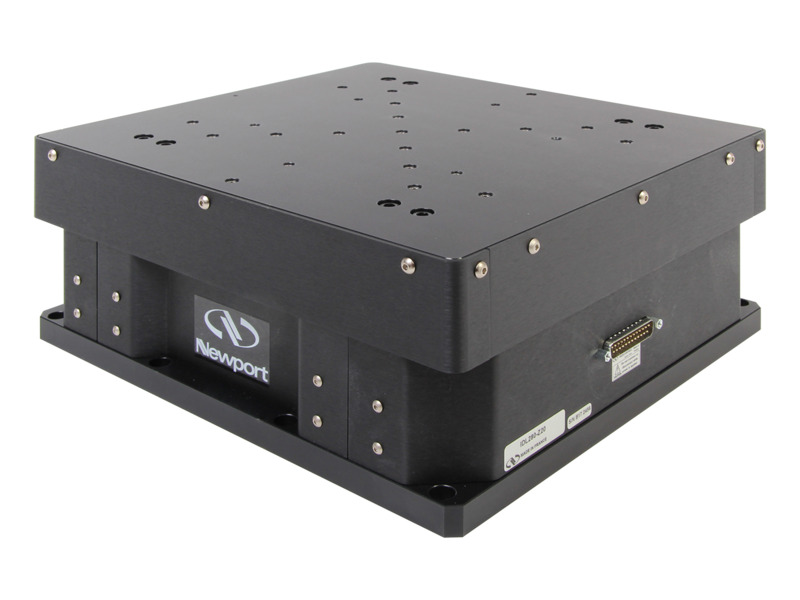

Motorized Vertical Stage, Industrial Grade, 20 mm Travel

The IDL280-Z20 Industrial Grade Vertical Stage offers 20 mm travel and 500 N load capacity. Specifically designed for high load industrial applications, it can directly be mounted on any IDL280 series Industrial Linear Stages for easy XZ or XYZ assemblies.

For stage and controller compatibiltiy, click here: Stage Compatbility Matrix

Specifications

Technical Specs

Travel Range
20 mm
Minimum Incremental Motion
0.10 µm
Maximum Speed
5 mm/s

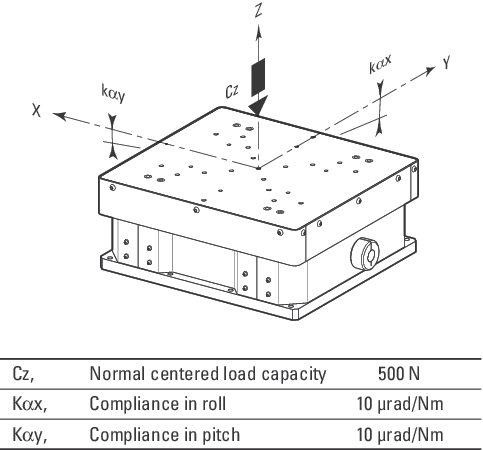

Centered Load Capacity
500 N
Accuracy, Guaranteed
±2.0 µm
Bi-directional Repeatability, Guaranteed
±0.6 µm
Uni-directional Repeatability, Guaranteed
±0.1 µm
Encoder Resolution
0.05 µm
Origin Repeatability
±0.5 µm
Connectors
DB25M

Pitch, Guaranteed
±50 µrad
Compliance in Pitch
10 µrad/ Nm
Compliance in Roll
10 µrad/ Nm
Cable Length
3 m
Weight
14.5 kg
MTBF
20,000 h (25% load, 30% duty cycle)
Compliance
RoHS 3, CE

Travel Range
20 mm
Minimum Incremental Motion
0.10 µm
Maximum Speed
5 mm/s
Centered Load Capacity
500 N
Accuracy, Guaranteed
±2.0 µm
Bi-directional Repeatability, Guaranteed
±0.6 µm
Uni-directional Repeatability, Guaranteed
±0.1 µm
Encoder Resolution
0.05 µm
Origin Repeatability
±0.5 µm
Connectors
DB25M

Pitch, Guaranteed
±50 µrad
Compliance in Pitch
10 µrad/ Nm
Compliance in Roll
10 µrad/ Nm
Cable Length
3 m
Weight
14.5 kg
MTBF
20,000 h (25% load, 30% duty cycle)
Compliance
RoHS 3, CE

Resources & Downloads

2D Product Drawings

IDL280-Z20(406.4 kB, PDF)

Manuals

IDL280-Z20 Vertical Stage User's Manual(1.4 MB, PDF)
IDL280-LM User's Manual.pdf(2.1 MB, PDF)

Literature

IDL280-Z20 Data Sheet.pdf(1.4 MB, PDF)
