EQ Series Manual Stage 90 Degree Angle Brackets

EQ Series Angle Brackets are made with an open-corner design to allow more mounting space, easier access to adjustments, and longer travel ranges for stages. They are compatible with UMR and/or UTR Series stages for assembling multi-axis positioners. These right-angle brackets are available in either an exterior or interior model, for a building X-Z and X-Y-Z motion control in a wider variety of configurations.

Open-corner design allows more mounting space
Two styles available for mounting on exterior or interior of bracket

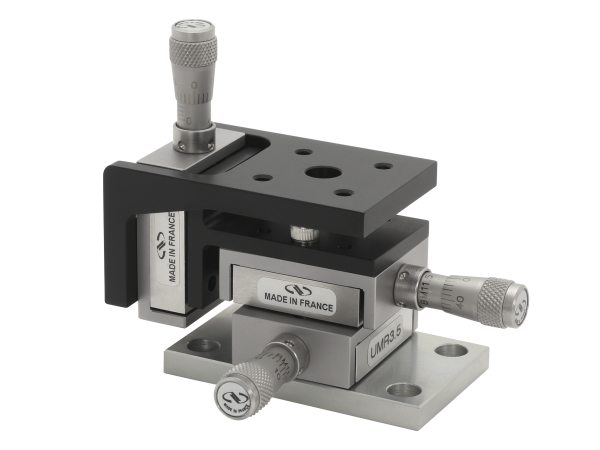

90° angle brackets for mounting UMR and UTR stages orthogonally

See All Features

Show Filters:

Showing 10 of 10 total products

Compatibility:

Description	Compatibility	Type	Material	Thread Type	Use	Avail.	Price

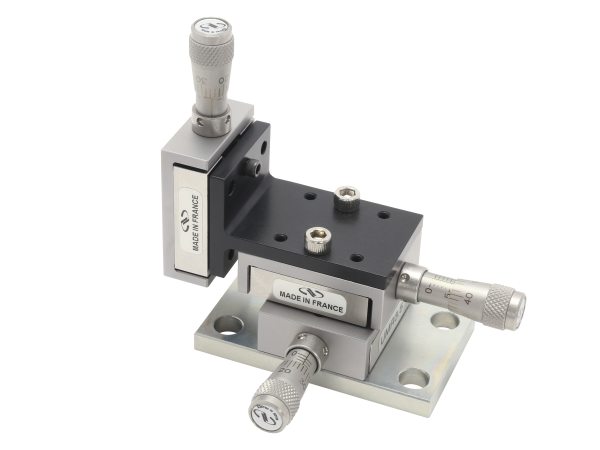

339232Angle Bracket, 90 Degree, Open Corner, UMR3 Stages, EQ3.01	METRIC	90° Open Corner Angle Bracket	Anodized Aluminum		UMR3 Stages	FREE 2-day shipping on thousands of products on Newport.com Learn More	$118

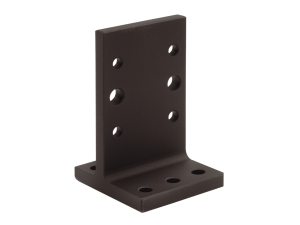

339233Angle Bracket, 90 Degree, Closed Corner, UMR3 Stages, EQ3.02	METRIC	90° Closed Corner Angle Bracket	Anodized Aluminum		UMR3 Stages	FREE 2-day shipping on thousands of products on Newport.com Learn More	$106

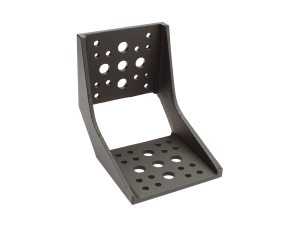

EQ50-EOuter Bracket, Compatible with UMR5 Stages	UNIVERSAL	90° Outer Angle Bracket	Anodized Aluminum	M3 and 7 mm CLR	UMR5 Stages	FREE 2-day shipping on thousands of products on Newport.com Learn More	$148

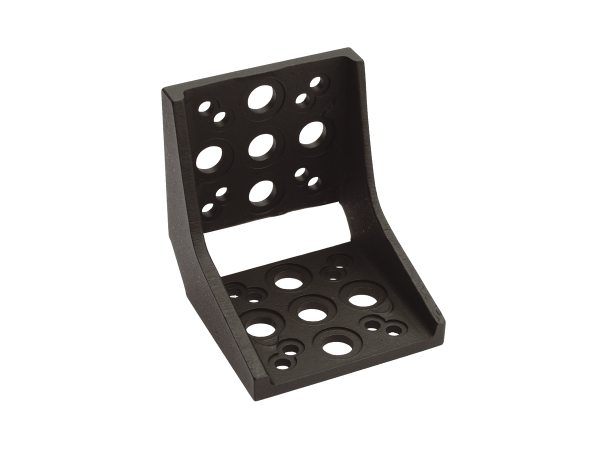

EQ50-IInner Bracket, Compatible with UMR5 Stages	UNIVERSAL	90° Inner Angle Bracket	Anodized Aluminum	M3 and 7 mm CLR	UMR5 Stages	FREE 2-day shipping on thousands of products on Newport.com Learn More	$124

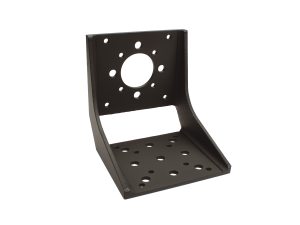

EQ80-EOuter Bracket, Compatible with 80 mm Stages	UNIVERSAL	90° Outer Angle Bracket	Anodized Aluminum	M4 and 7.2 mm CLR	UMR8 & UTR80 Stages	FREE 2-day shipping on thousands of products on Newport.com Learn More	$168

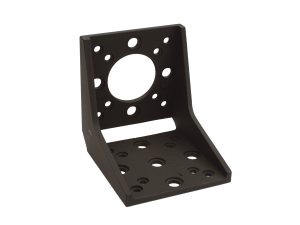

EQ80-IInner Bracket, Compatible with 80 mm Stages	UNIVERSAL	90° Inner Angle Bracket	Anodized Aluminum	M4 and 7.2 mm CLR	UMR8 & UTR80 Stages	FREE 2-day shipping on thousands of products on Newport.com Learn More	$148

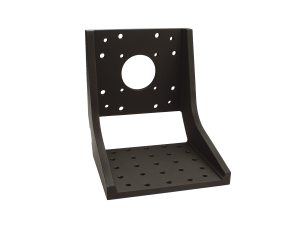

EQ120-EOuter Bracket, Compatible with UMR12 and UTR120 Stages	IMPERIAL	90° Outer Angle Bracket	Anodized Aluminum	1/4-20 and 10-24	UMR12 and UTR120 Stages	FREE 2-day shipping on thousands of products on Newport.com Learn More	$292

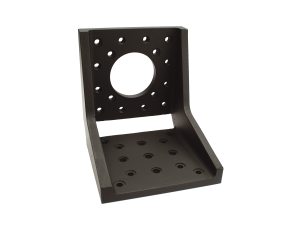

EQ120-IInner Bracket, Compatible with UMR12 and UTR120 Stages	IMPERIAL	90° Inner Angle Bracket	Anodized Aluminum	1/4-20 and 10-24	UMR12 and UTR120 Stages	FREE 2-day shipping on thousands of products on Newport.com Learn More	$225
M-EQ120-EOuter Bracket, Compatible with UMR12 and UTR120 Stages, Metric	METRIC	90° Outer Angle Bracket	Anodized Aluminum	M5 and M6	UMR12 and UTR120 Stages	FREE 2-day shipping on thousands of products on Newport.com Learn More	$292
M-EQ120-IInner Bracket, Compatible with UMR12 and UTR120 Stages, Metric	METRIC	90° Inner Angle Bracket	Anodized Aluminum	M5 and M6	UMR12 and UTR120 Stages	FREE 2-day shipping on thousands of products on Newport.com Learn More	$225

Features

Cast Aluminum for Strength & Machined for Accuracy

Each bracket is cast from aluminum and then precision machined to ensure flat interfaces and accurate angles.

Inner or Outer Mounting Configurations

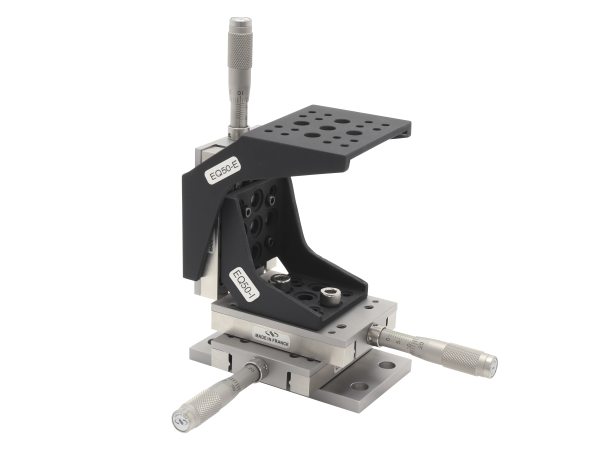

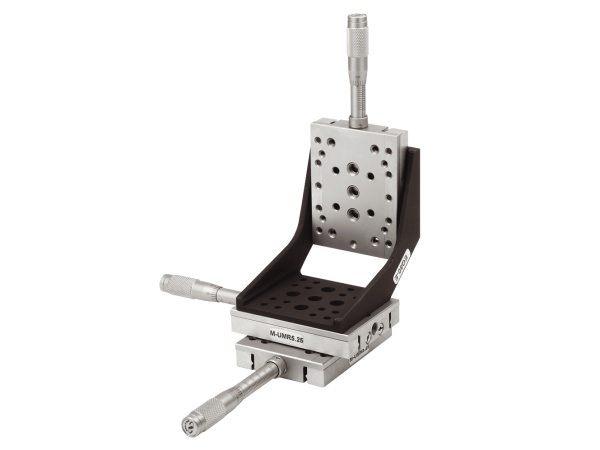

For each of the three sizes of EQ Series Right Angle Brackets available, there are two configurations offered. UMR series stages (UMR5, UMR8 and UMR12) can be vertically mounted either on the inner side of an outer bracket ("-E" models) facing towards the XY stage, or on the outside of an inner bracket ("-I" models) and facing away.
