Nanopositioning Piezo Stack Actuators
Nanopositioning Piezo Stack Actuators

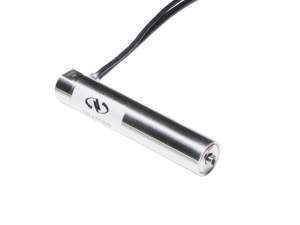

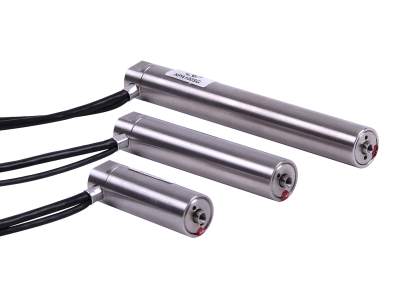

NPA Piezo Stack Actuators are equipped with a highly reliable, multi-layer, low-voltage, piezoelectric transducer stack. They are internally pre-loaded by a mechanical spring and feature high resonant frequencies, making them ideal for high load, dynamic applications.
- Sub-nanometer positioning resolution
- Ultra-high load capacity
- Optional strain-gauge position feedback
- Vacuum compatible versions See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

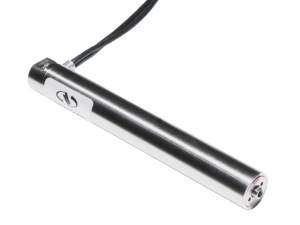

 | NPA100Piezo Stack Actuator, 0.1 mm Travel Range, Open-loop | In Stock | ||||
| NPA100SGPiezo Stack Actuator, 0.1 mm Travel Range, Strain-gauge | |||||
| NPA100SG-DPiezo Stack Actuator, 0.1 mm Travel Range, Strain-gauge, XPS | |||||
 | NPA50Piezo Stack Actuator, 0.05 mm Travel Range, Open-loop | In Stock | ||||
| NPA50-DPiezo Stack Actuator, 0.05 mm Travel Range, Open-loop, XPS | In Stock | ||||
| NPA50SGPiezo Stack Actuator, 0.05 mm Travel Range, Strain-gauge | |||||
| NPA50SG-DPiezo Stack Actuator, 0.05 mm Travel Range, Strain-gauge, XPS | |||||
 | NPA25Piezo Stack Actuator, 0.025 mm Travel Range, Open-loop | |||||
| NPA25-DPiezo Stack Actuator, 0.025 mm Travel Range, Open-loop, XPS | In Stock | ||||
| NPA25SGPiezo Stack Actuator, 0.025 mm Travel Range, Strain-gauge | In Stock |
Features
Sub-Nanometer Positioning Resolution
With positioning resolution as low as 0.05 nm, the NPA Piezo Stack Actuators make ultra-fine adjustments with resolution only limited by the noise of the control electronics.
Ultra-High Load Capacity
NPA Piezo Stack Actuators can generate large forces up to 1000 N which make them particularly useful for machine tools, active vibration isolation, or adaptive mechanics.
Optional Strain-Gauge for Closed-Loop Operation
Closed-loop versions feature high resolution strain-gauge position sensors for highly accurate and repeatable motion which also compensates for actuator creep. The assembly is done as a full Wheatstone bridge and is temperature insensitive. The closed-loop devices can be used in either open or closed-loop control.
Vacuum Compatible Versions

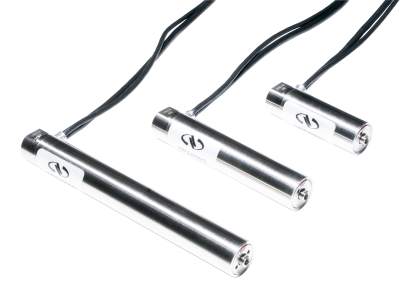

The NPA Piezo Stack Actuators are available in vacuum compatible versions which can be used in vacuum (10-6 Torr) environments.
Accessories

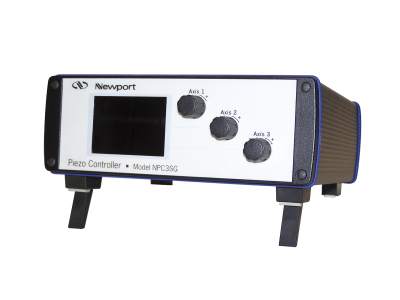

Compatible Controllers
Notes:
- Compatible with NPAxxx-D actuator and requires XPS-DRVP1 driver module
- Compatible with NPAxxx-D actuator and requires XPS-DRVP1 driver module
