Lens Tubes

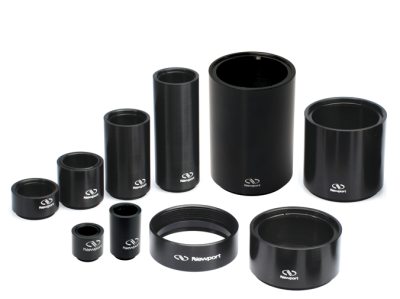

Newport’s new Lens Tubes allow the combining of several optical components into stable and rigid assemblies. Included in this product family are various lengths of tubes for holding ½, 1 and 2 inch diameter lenses, as well as adaptors for mounting other types of components. Lens tubes can be used to create lens systems such as beam expanders, telescopes, microscopes, or collimators.

Ideal for creating multi-element lens systems
Sizes for 12.7, 25.4 and 50.8 mm diameter lenses
Compatible with Newport optics and mounts

See All Features

Show Filters:

Showing 10 of 10 total products

Compatibility:

Description	Compatibility	Optic Diameter	Length	Thread Type	Avail.	Price
LT05-05Lens Tube, 1/2 inch diameter lenses, 1/2 inch length	UNIVERSAL	12.7 mm	12.7 mm	0.535-40	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$19.80

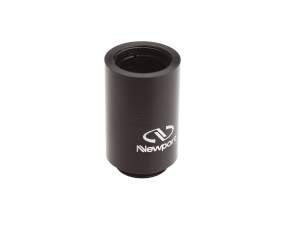

LT05-10Lens Tube, 1/2 inch diameter lenses, 1 inch length	UNIVERSAL	12.7 mm	25.4 mm	0.535-40	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$21

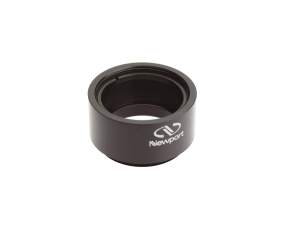

LT10-05Lens Tube, 1 inch LT Series, 1/2 inch length	UNIVERSAL	25.4 mm	12.7 mm	1.035-40	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$20

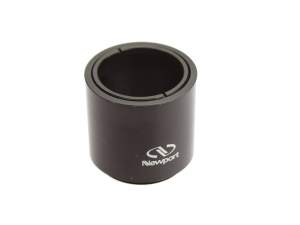

LT10-10Lens Tube, 1 inch LT Series, 1 inch length	UNIVERSAL	25.4 mm	25.4 mm	1.035-40	2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$23

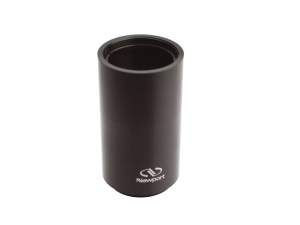

LT10-20Lens Tube, 1 inch LT Series, 2 inch length	UNIVERSAL	25.4 mm	50.8 mm	1.035-40	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$24
LT10-30Lens Tube, 1 inch LT Series, 3 inch length	UNIVERSAL	25.4 mm	76.2 mm	1.035-40	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$37

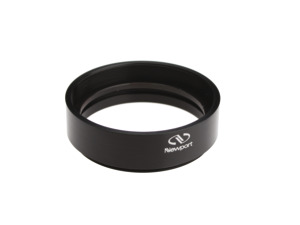

LT20-05Lens Tube, 2 inch LT Series, 1/2 inch length	UNIVERSAL	50.8 mm	12.7 mm	2.035-40	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$37

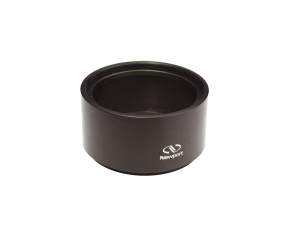

LT20-10Lens Tube, 2 inch LT Series, 1 inch length	UNIVERSAL	50.8 mm	25.4 mm	2.035-40	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$40

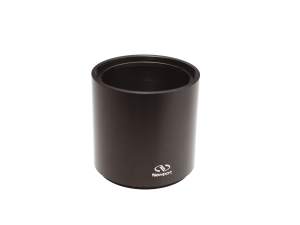

LT20-20Lens Tube, 2 inch LT Series, 2 inch length	UNIVERSAL	50.8 mm	50.8 mm	2.035-40	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$43
LT20-30Lens Tube, 2 inch dia. LT Series, 3 inch length	UNIVERSAL	50.8 mm	76.2 mm	2.035-40	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$48

Features

Ideal for Fast Prototyping of Complex Lens Systems

Lens Tubes allow the combining of several optical components into stable and rigid assemblies and are used to create beam expanders, telescopes, microscopes, collimators and more.

Endless Optical Configurations

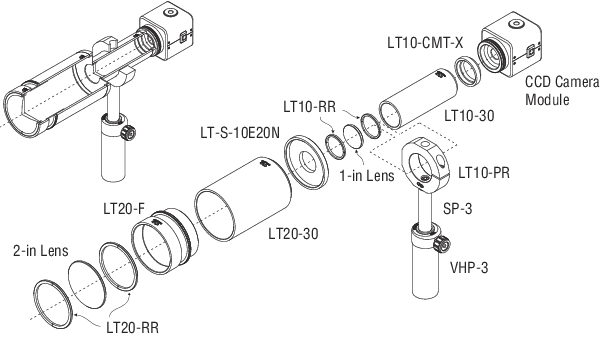

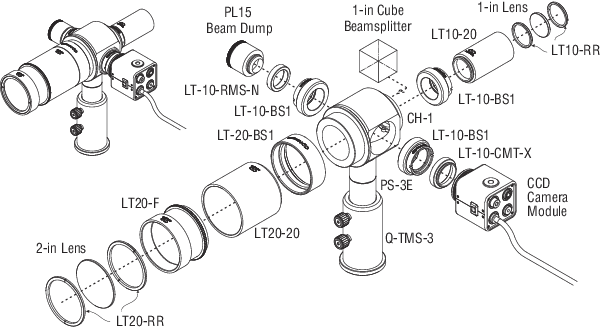

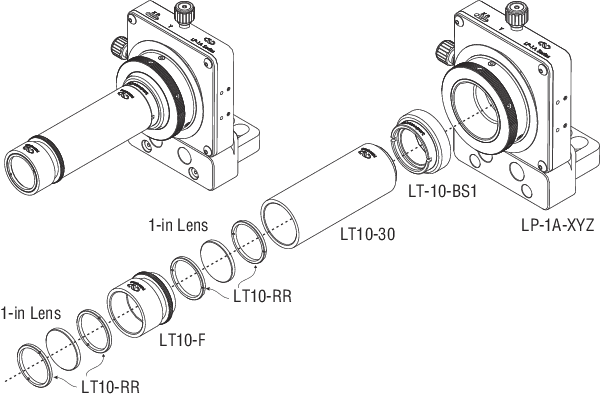

LT-series Lens Tubes provide a means to mount multiple lenses into a single holder. Each lens tube has an internal thread on one end and a mating external thread on the other. This allows them to be connected together end-to-end to provide endless configurations. Lenses are held in place with threaded retaining rings and one ring is included with each lens tube.

Accessory	0.5 in. Lens Tubes	2 in. Lens Tubes
Tube Coupler
Step-Up Adapter		N/A
Focusing Tube
Extension Tube
Post Mounting Ring
End Cover
Alignment Target	N/A	N/A
Objective Adapter	N/A	N/A
C-Mount Adapter	N/A	N/A
Thread Adapter	N/A
Iris Diaphragm	N/A
Retaining Ring
Spanner Wrench
Oriel^® Flange Adapter	N/A
Aegis Qube™ Adapter	N/A	N/A
