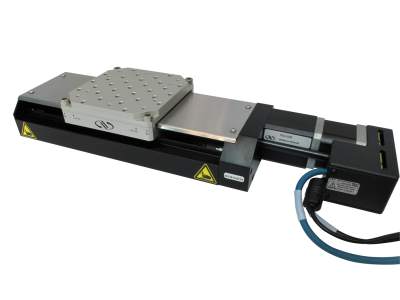

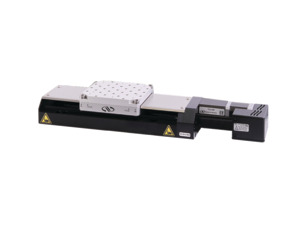

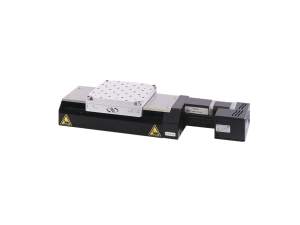

FCL Series Intelligent Stepper Motor Linear Stages

The economical FCL Series linear stages feature a built-in, fully integrated, plug-and-play stepper motor controller to provide travel ranges of 50, 100 or 200 mm in a small footprint while maintaining high precision. Users need only plug in the stage's power supply and connect it to a PC with FC Series Controller graphical user interface (GUI) to begin motion.

Built-in stepper motor controller with iPP™ technology, eliminating any motor cables and driver setup
Fully pre-configured with USB communication and enables out-of-the-box control
Up to 4 FC units can be daisy-chained and controlled via RS-422 with one GUI, or more units via USB hub
Most economical stage and controller available without compromising minimum incremental motion
FEM-optimized aluminum body

See All Features

Description	Compatibility	Travel Range	Avail.	Price
FCL50Motorized Linear Stage, 50 mm Travel, Integrated Controller, M4 and M6	UNIVERSAL	50 mm	In Stock	$5,894
FCL100Motorized Linear Stage, 100 mm Travel, Integrated Controller, M4 and M6	UNIVERSAL	100 mm	In Stock	$6,237
FCL200Motorized Linear Stage, 200 mm Travel, Integrated Controller, M4 and M6	UNIVERSAL	200 mm	6 Weeks	$7,341

Specifications

Models
Travel Range	50 mm	100 mm	200 mm
Minimum Incremental Motion	150 nm	150 nm	150 nm
Maximum Speed	20 mm/s	20 mm/s	20 mm/s
Accuracy, Typical	±0.8 µm	±1.0 µm	±1.5 µm
Accuracy, Guaranteed	±2.0 µm	±2.5 µm	±4.0 µm
Bi-directional Repeatability, Guaranteed	±2.25 µm	±2.5 µm	±2.5 µm
Bi-directional Repeatability, Typical	±1 µm	±1 µm	±1 µm
Centered Load Capacity	250 N	250 N	250 N
Pitch, Typical	±17 µrad	±15 µrad	±45 µrad
Pitch, Guaranteed	±25 µrad	±50 µrad	±100 µrad
Compliance in Pitch	10 µrad/Nm	10 µrad/Nm	10 µrad/Nm
Yaw, Typical	±6 µrad	±11 µrad	±20 µrad
Yaw, Guaranteed	±35 µrad	±50 µrad	±80 µrad
Compliance in Yaw	10 µrad/Nm	10 µrad/Nm	10 µrad/Nm
Roll, Typical	±35 µrad	±50 µrad	±50 µrad
Compliance in Roll	15 µrad/Nm	15 µrad/Nm	15 µrad/Nm
Origin Repeatability	±2.5 µm	±2.5 µm	±2.5 µm
Weight	4.1 kg	3.3 kg	3.6 kg
MTBF	20,000 h (25% load, 30% duty cycle)	20,000 h (25% load, 30% duty cycle)	20,000 h (25% load, 30% duty cycle)

Features

Built-in stepper motor controller with iPP technology

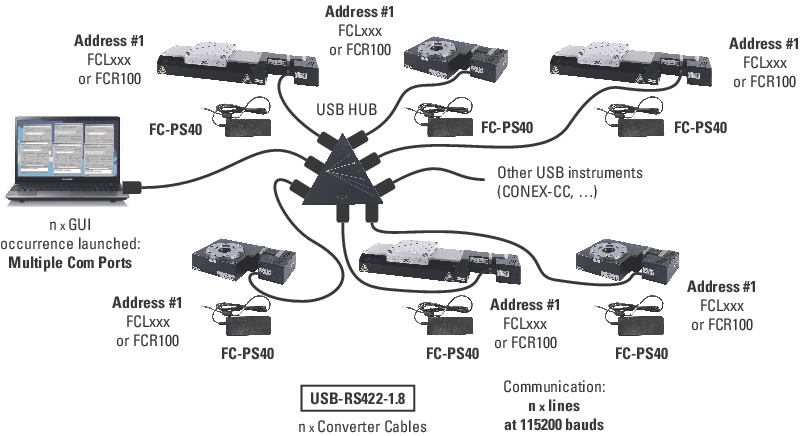

Example of a multi-axis configuration. Note that FC-PS40 power supply and USB-RS422-1.8 adapter cable must be purchased separately.

The FCL's design brings together a linear stage with a built-in controller and driver for easy integration. Not only is the controller pre-configured with intelligent stepper motor technology, iPP, but the stage is also ready for plug-and-play via USB connection. The built-in controller eliminates the need for an external controller and cables, thus saving work-space and cost.

Daisy-Chain up to 4 FC units

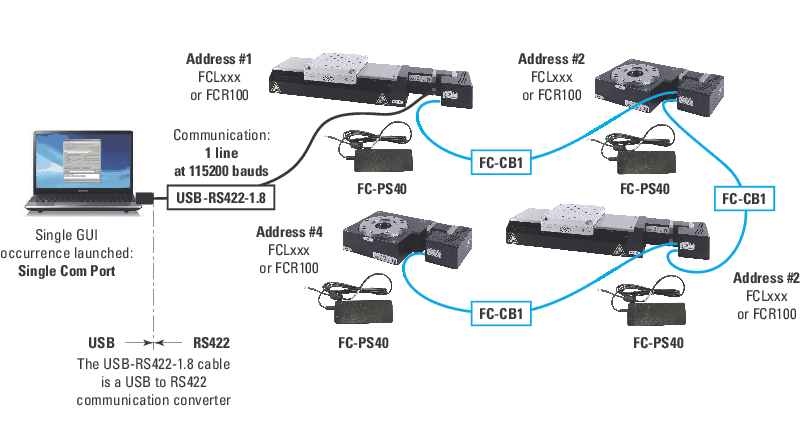

Example of a daisy-chaining configuration. Note that FC-PS40 power supply, FC-CB1 communication cable, and USB-RS422-1.8 adapter cable must be purchased separately.

With an RS-422 interface, the FC series is equipped to easily daisy-chain and synchronize communication with up to 4 stages. All 4 axes can be controlled within one GUI.

FEM-Optimized Aluminum Body

The optimized aluminum body allows for extreme stiffness and minimizes bi-metal bending without compromising weight. The rigid body reduces deflection under load.

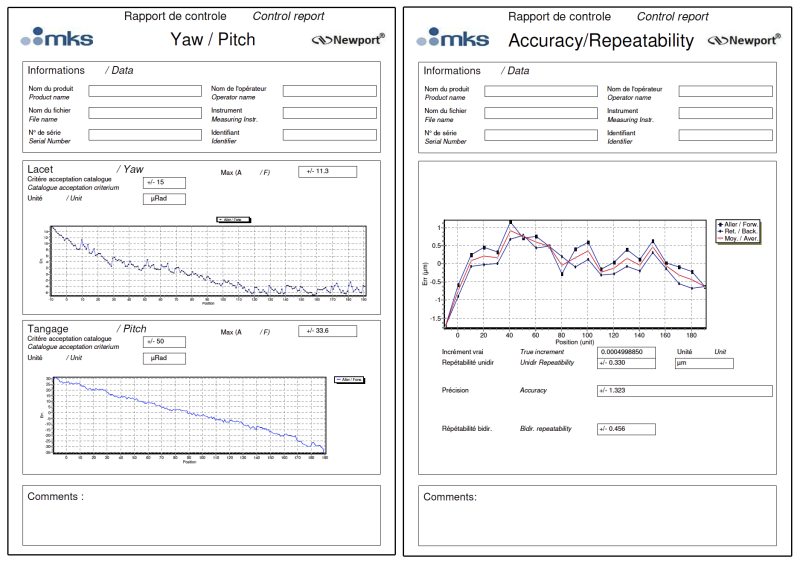

Metrology Report Included at No Additional Cost

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.

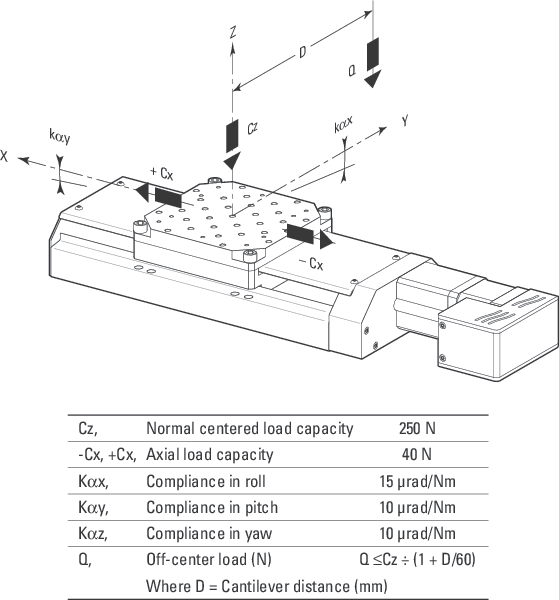

FCL Stage Load Characteristics

Accessories

Cables and Power Supply

Description	Compatibility	Avail.	Price
USB-RS422-1.8Cable Adapter, USB to RS422, 1.8 m Length	UNIVERSAL	In Stock	$290
FC-CB1Communication Cable, daisy chain, RS422, 1 meter	UNIVERSAL	In Stock	$188
FC-PS40Power supply, iPP step motor, RoHS	UNIVERSAL	In Stock	$168

Mounting Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

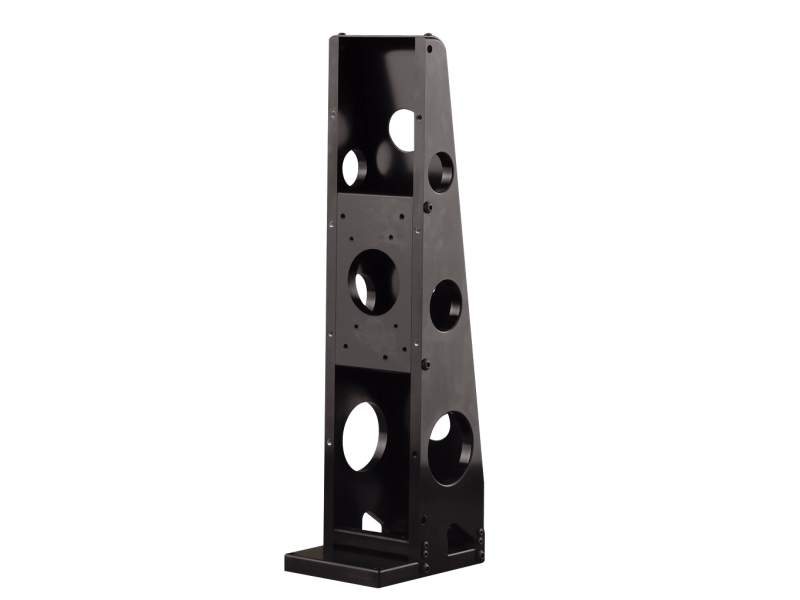

		EQ120Right-Angle Bracket, ILS, FC and RV	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,427

Resources

FCL Series Intelligent Stepper Motor Linear Stages

FCL Series Intelligent Stepper Motor Linear Stages

Specifications

Features

Built-in stepper motor controller with iPP technology

Daisy-Chain up to 4 FC units

FEM-Optimized Aluminum Body

Metrology Report Included at No Additional Cost

FCL Stage Load Characteristics

Accessories

Cables and Power Supply

Mounting Accessories

Resources

Software

Technical Notes

Manuals

Literature

Related Products

DC Servo Linear Stage With CONEX™ Controller

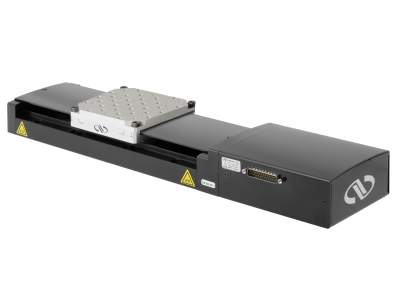

ILS Mid Travel Aluminum Stepper Motor Linear Stages

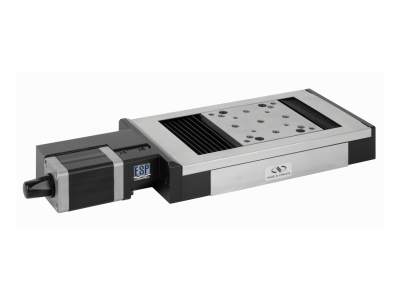

UTS Low Profile Steel Stepper Motor Linear Stages

ILS Mid Travel Aluminum DC Motor Linear Stages

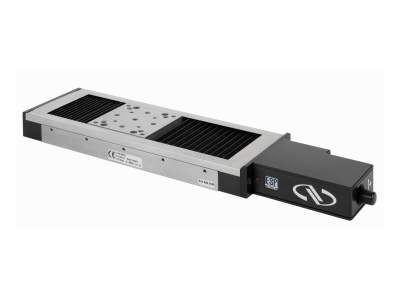

UTS Low Profile Steel Linear Stages
