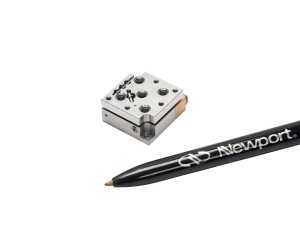

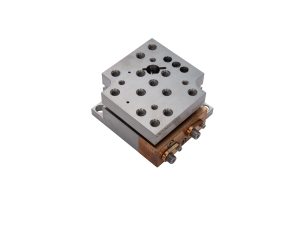

Industrial Steel Pitch and Yaw Stages

The 906x-PY platforms use stainless-steel construction and actuator locks to provide optimal performance. These platforms include an extra strong spring to prevent any unwanted tilts due to uncentered loads. While the 906x-PY Platforms are compatible with the 906x Gothic Arch Ball Bearing Steel Linear Stage series, they are fully capable of being used alone.

All adjustments from one side with locks for set-and-forget applications
Adds additional degrees of freedom to a 906X series stages
Designed with an extra strong spring to prevent unwanted tilt from uncentered loads

See All Features

Show Filters:

Showing 6 of 6 total products

Compatibility:

Description	Compatibility	Tilt	Rotation	Sensitivity	Load Capacity	Thread Type	Avail.	Price
9061-PYTilt Platform, Two-Axis, 25 x 25 mm Platform, 2-56 & 8-32	IMPERIAL	±2°	±2°	θy = 9.81 arc sec θx = 5.38 arc sec	10 N	2-56 & 8-32	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$369
9062-PYTilt Platform, Two-Axis, 40 x 40 mm Platform, 2-56 & 8-32	IMPERIAL	±2°	±2°	θy = 4.68 arc sec θx = 2.70 arc sec	25 N	2-56 & 8-32	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$567
9063-PYTilt Platform, Two-Axis, 65 x 65 mm Platform, 8-32 & 1/4-20	IMPERIAL	±2°	±2°	θy = 2.98 arc sec θx = 1.66 arc sec	50 N	8-32 & 1/4-20	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$792
9061-PY-MTilt Platform, Two-Axis, 25 x 25 mm Platform, M2 & M4	METRIC	±2°	±2°	θy = 9.81 arc sec θx = 5.38 arc sec	10 N	M2 & M4	3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$369
9062-PY-MTilt Platform, Two-Axis, 40 x 40 mm Platform, M2 & M4	METRIC	±2°	±2°	θy = 3.41 arc sec θx = 5.4 arc sec	25 N	M2 & M4	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$567
9063-PY-MTilt Platform, Two-Axis, 65 x 65 mm Platform, M4 & M6	METRIC	±2°	±2°	θy = 2.98 arc sec θx = 1.66 arc sec	50 N	M4 & 1/4-20	4 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$792

Specifications

Models	9061-PY¹	9062-PY²	9063-PY³
Platform Size	25x25 mm	40x40 mm	65x65 mm
Sensitivity	θy = 9.81 arc sec θx = 5.38 arc sec	θy = 4.68 arc sec θx = 2.70 arc sec	θy = 2.98 arc sec θx = 1.66 arc sec
Thread Type	2-56 & 8-32	2-56 & 8-32	8-32 & 1/4-20
Tilt	±2°	±2°	±2°
Rotation	±2°	±2°	±2°
Load Capacity	10 N	25 N	50 N
Drive Type	80 TPI Hex Screw	100 TPI Hex Screw	100 TPI Hex Screw
Weight	0.12 lb	0.45 lb	1.92 lb

Notes:

Metric (-M) version offers M2 & M4 threads
Metric (-M) version offers M2 & M4 threads
Metric (-M) version offers M4 & M6 threads

Features

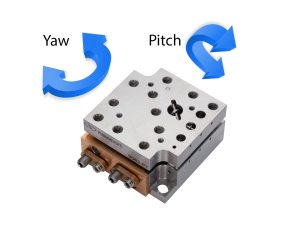

Pitch and Yaw Adjustments

The compact 906x-PY platforms provide ±2° of Pitch and Yaw adjustments with two actuators and locking capabilities all located on the same side of the platform.

Compatible with Gothic Arch Ball Bearing Steel Linear Stages

Newport’s Industrial Pitch and Yaw Stages can be mounted on top of 906x series Gothic Arch Ball Bearing Steel Linear Stages. Shown here is a 9062-PY Pitch and Yaw stage mounted on a 9062-XY linear stage for complete pitch, yaw, X, and Y adjustment.
