Cylindrical Lens Rotation Adapters
Cylindrical Lens Rotation Adapters

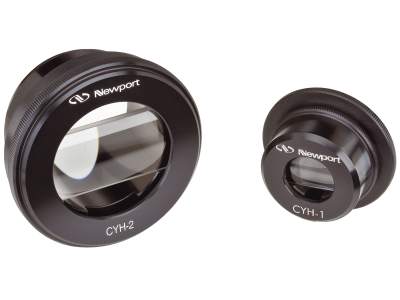

The CYH Series Lens Holders have been designed to accommodate the special geometry of cylindrical optics. The most unique feature of these holders is the capability to make rotational adjustments required for precision cylindrical lens alignment.
- Allows rotational adjustment of cylindrical lenses
- Fast and repeatable cylindrical lens replacement
- Compatible with 25.4 mm & 50.8 mm lens mounts See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | CYH-1Cylindrical Lens Holder, 1.0 in x 0.25-0.50 in., 0.75 in. Clear Aperture | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

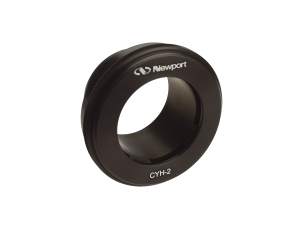

 | CYH-2Cylindrical Lens Holder, 2.0 in. x 0.75-1.0 in., 2.063-20 Threaded Mounts | FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features
Lens Base Centers Cylindrical Lenses
The holders consist of a lens base that centers the lens in the holder and a knurled retaining ring to hold the lens in place. The inner face of the retaining ring is a Delrin washer that contacts the lens surface. This configuration avoids the possibility of a point contact between the lens surface and a metal retaining ring.
Compatible with Newport Mounts and Stages

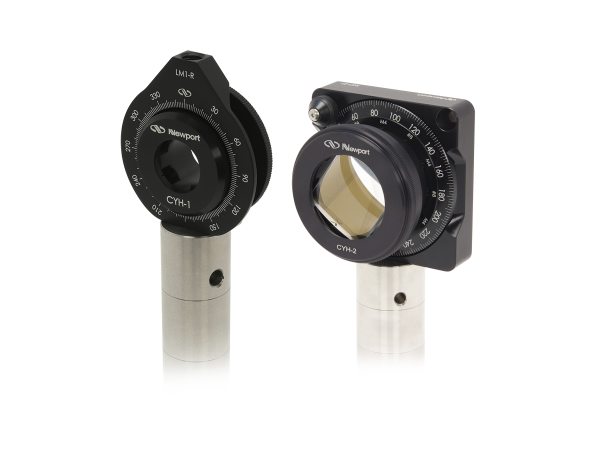

The CYH-1 and CYH-2 fit into LM-R Series mounts to provide accurate positioning and easy rotation for cylindrical axis alignment. Additional mounting options for the CYH-2 include compatibility with the RSP-2T Rotary Stage for accurate indexed lens rotation and the LP-2A 5-axis gimbal mount for maximum fine positioning.
Accessories
Compatible Rotation Mounts
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | LM1-ROptic Cell Rotation Mount, 2° Graduations, For LH1 Optic Cells | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

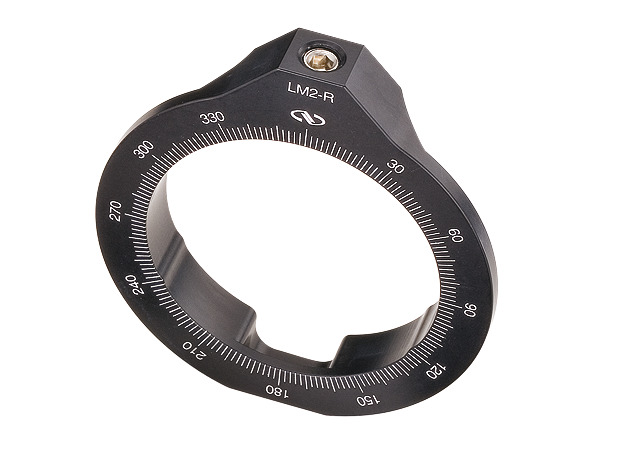

 | LM2-ROptic Cell Rotation Mount, 2° Graduations, For LH2 Optic Cells | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | RSP-2TOptic Rotation Mount, 50.8 mm, Fine Adjust Knob, 8-32 and M4 | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | LP-2APrecision Lens Positioner, 2.0 in., 100 TPI XYθXθY, 80 TPI Z | FREE 2-day shipping on thousands of products on Newport.com Learn More |
