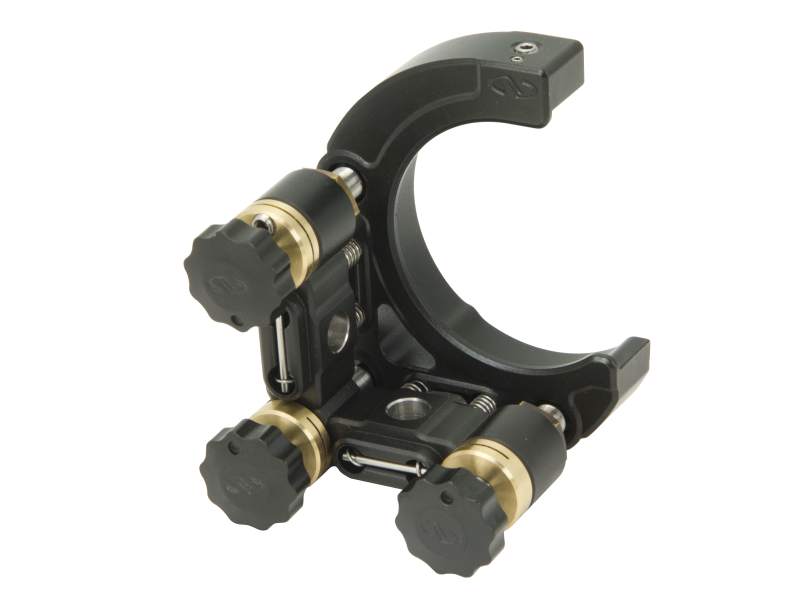

Mirror Mount, Suprema® XTE, Clear Edge, 2.0 in., (3) 254-TPI Knob Adj.

Technical Specs

  • Mechanism
    Kinematic
  • Optic Diameter
    50.8 mm
  • Number of Actuators
    3
  • Actuator Drive
    Knob
  • Actuator Locks
    No
  • Adjustment Screw Thread
    254 TPI
  • Adjustments
    z, θx, θy
  • Sensitivity
    1.5 arc sec
  • Angular Range
    ±7°
  • Actuator Orientation
    Right-handed
  • Optic Loading
    Front
  • Material
    Stainless Steel
  • Drive Type
    Knob, non-locking
  • Thread Type
    8-32 (M4) CLR
  • Special Features
    Low Thermal Shift
