OptiSet Optics Set, Visible Laser Applications

Model: OPTISET-1

$3,029

Show

Compare

Add to List

Product Series Overview

OptiSet Optics Sets

OPTISET-1 is a set of optical components optimized for a variety of visible laser applications.

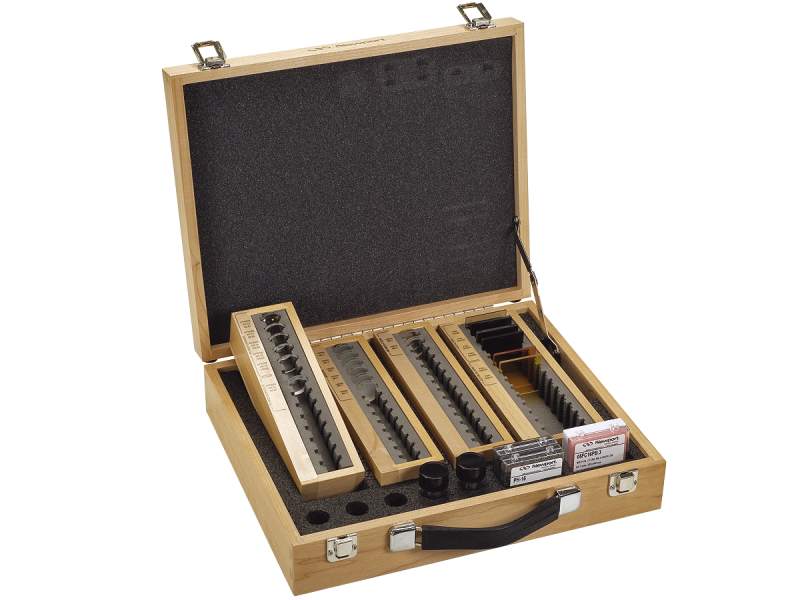

OptiSet™ Optical Sets provide a collection of mirrors, lenses, filters, beamsplitters and objectives in an efficiently organized hardwood case. Optics are easy to find, organized in rows of trays with part numbers labeled on the trays as well as the optics.
Four standard OptiSets are offered: visible laser applications, NIR and IR laser diode applications, and a special High-Energy optics version.

OPTISET-1 Kit Contents

Qty	Model	Description
1	KPX076AR.14	1" Diameter Plano-Convex lens, EFL 25.4 mm, Visible (400-700nm)
1	KPX082AR.14	1" Diameter Plano-Convex lens, EFL 50.2 mm, Visible (400-700nm)
1	KPX094AR.14	1" Diameter Plano-Convex lens, EFL 100 mm, Visible (400-700nm)
1	KPX100AR.14	1" Diameter Plano-Convex lens, EFL 150 mm, Visible (400-700nm)
1	KPX106AR.14	1" Diameter Plano-Convex lens, EFL 200 mm, Visible (400-700nm)
1	KPC040AR.14	1" Diameter Plano-Convex lens, EFL -50 mm, Visible (400-700nm)
2	10B20BS.1	1" Broadband Beamsplitter (480-700 nm)
6	10D20BD.1	1" Broadband Dielectric Mirror (488-694 nm)
1	FSQ-OD20	2" Square OD 0.2 Filter
1	FSQ-OD100	2" Square OD 1.0 Filter
1	FSQ-OD200	2" Square OD 2.0 Filter
1	FSQ-OD300	2" Square OD 3.0 Filter
1	FSQ-OG515	2" Square Longpass Color Glass Filter, 515 nm Cutoff
1	FSQ-OG550	2" Square Longpass Color Glass Filter, 550 nm Cutoff
1	05FC16PB.3	0.5" Polarizing Cube Beamsplitter (420-680 nm)
1	PH-15	15 µm High Energy Pinhole
1	PH-25	25 µm High Energy Pinhole
1	M-10X	10x Microscope Objective Lens
1	M-20X	20x Microscope Objective Lens

Specifications

Technical Specs

Type

Visible Laser Applications Set

Type

Visible Laser Applications Set

Resources & Downloads

Other

OPTISET-1 RoHS Certificate (262.8 kB, PDF)
