Combination Driver & TEC Module, 500mA, 6V, 12W TEC, Modulation [Discontinued]

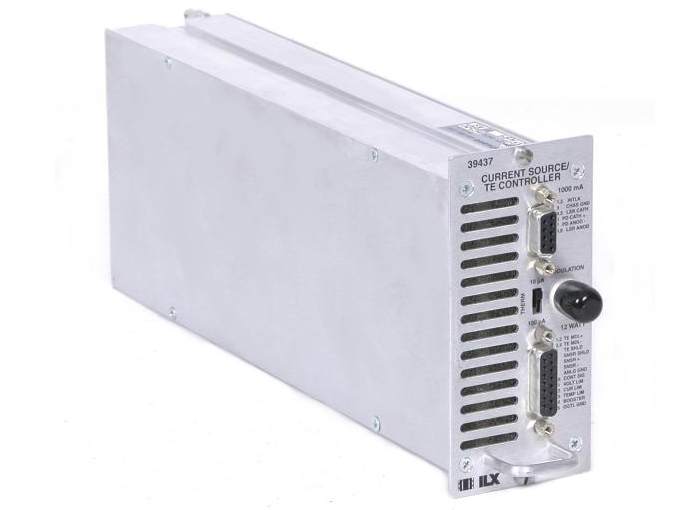

The LCM-39427 Current Source/TE Controller Module is a precision laser controller (current source and temperature controller) module for use in the LDC- 3900 Modular Laser Diode Controller. The integrated laser diode current source provides up to 500mA of high stability low noise current output with integrated laser diode protection circuits. Standard current source features include constant current, constant power operation modes, and analog modulation. The LCM39427 also includes a 12W thermoelectric temperature controller that is compatible with thermistor, IC and RTD temperature sensors providing convenience and flexibility over a broad range of temperature control applications.

Specifications

Technical Specs

Type
LDC-3900 Controller Card
Laser Current
0.5 A
Laser Compliance Voltage
6 V
TE Current Range
-2.00 to +2.00 A
TE Voltage Range
-6.00 to +6.00 V
TE Output Power
12 W
Temperature Coefficient
100 ppm/ °C
Temperature Range
–99.9 to 99.9°C
Laser Current Resolution
10 µA
Current Output 24 h Stability
50 ppm FS
Current Output 1 h Stability
25 ppm FS

External Modulation High Bandwidth
0-250 kHz
Laser Output Noise/Ripple High Bandwidth
<4 µA
TEC Current 24h Stability
<±0.1°C
TEC Current 1h Stability
<±0.05°C
TEC Ripple/Noise (rms)
<1 mA
Photodiode Current Range
0-4000 µA
Photodiode Current Resolution
1 µA
Photodiode Reverse Bias
0-5 V

Type
LDC-3900 Controller Card
Laser Current
0.5 A
Laser Compliance Voltage
6 V
TE Current Range
-2.00 to +2.00 A
TE Voltage Range
-6.00 to +6.00 V
TE Output Power
12 W
Temperature Coefficient
100 ppm/ °C
Temperature Range
–99.9 to 99.9°C
Laser Current Resolution
10 µA
Current Output 24 h Stability
50 ppm FS
Current Output 1 h Stability
25 ppm FS

External Modulation High Bandwidth
0-250 kHz
Laser Output Noise/Ripple High Bandwidth
<4 µA
TEC Current 24h Stability
<±0.1°C
TEC Current 1h Stability
<±0.05°C
TEC Ripple/Noise (rms)
<1 mA
Photodiode Current Range
0-4000 µA
Photodiode Current Resolution
1 µA
Photodiode Reverse Bias
0-5 V
