OpticsCage+™ Mounting Cube OC1-CM is an essential component for optical cage system that needs to reflect, separate or combine light beams. It provides fixed mounting for prisms, beam splitters, and dichroic filters within the 4-rod optics cage structure. The cube also features 1.035-40 threaded apertures on four sides which can attach LT10 lens tubes or Q-BT beam tubes to construct an enclosed optical system.

Most optic cage systems only use a closed-hole captive design for adapting optic carriers to the 4-rod cage structure. This restriction requires a nearly complete teardown of a cage system to simply add or remove a component. The open-slot design of OpticsCage+ allows optical elements to be inserted directly into an assembled cage without the need for disassembly.

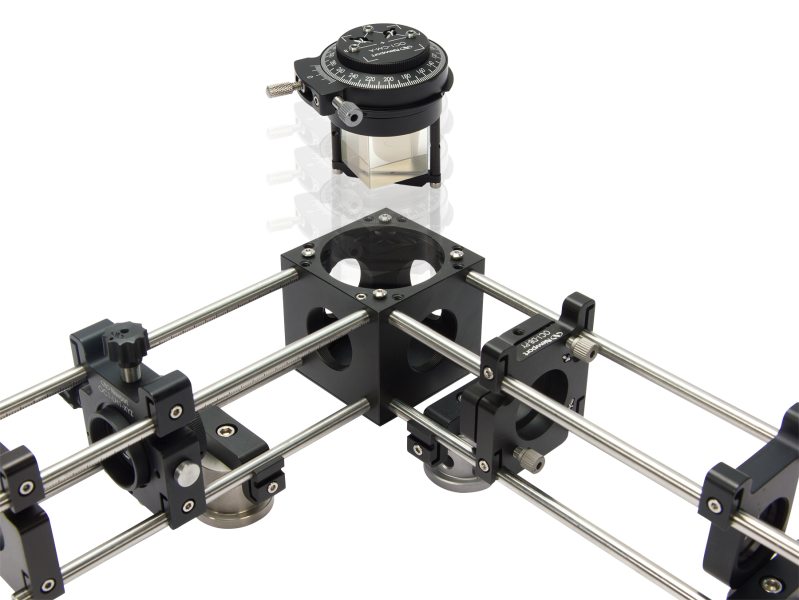

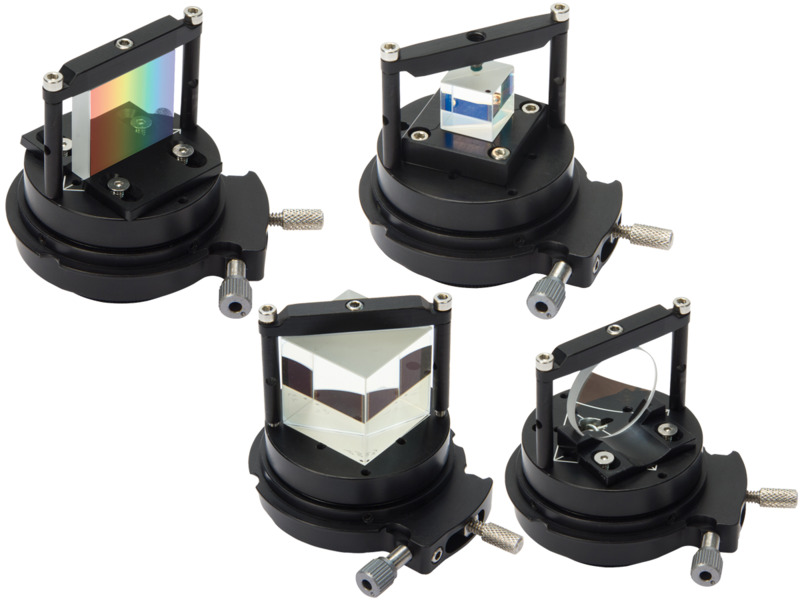

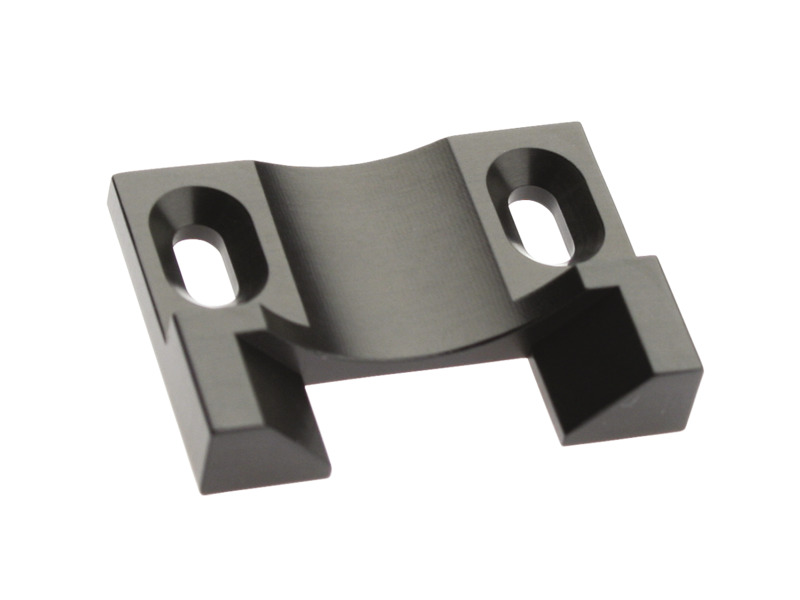

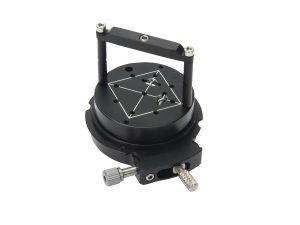

OC1-CM-A Adjustable Cube Mount is designed to provide easy access to its pitch, yaw and roll angular adjustment from above the cube mount rather than below. Besides 1.0 in. cube beamsplitter, it can mount additional types of optics with UGP-KIT adaptors.

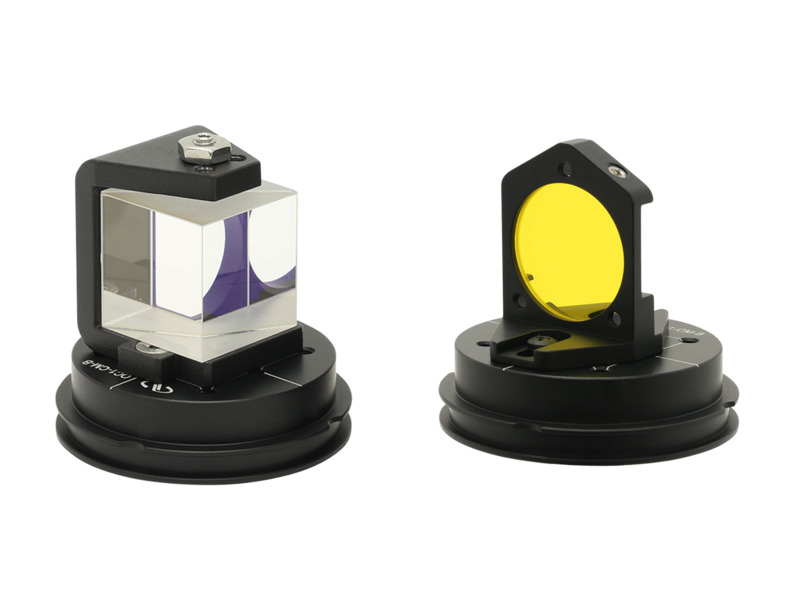

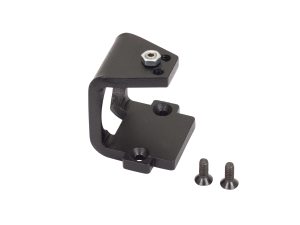

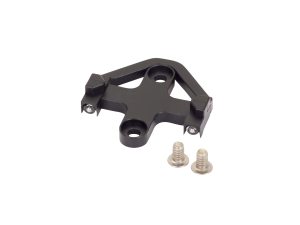

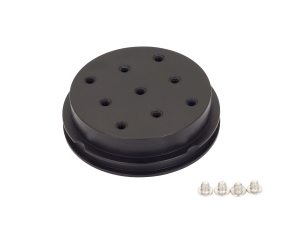

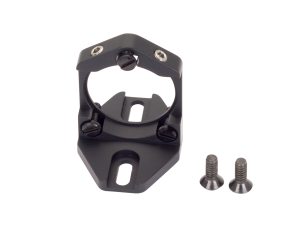

OC1-CM-B Cube Mount Base is designed to support  prism mount, beamsplitter mount, or dichroic filter mount within the OC1-CM mounting cube. It features an 8-32 threaded hole at the bottom for post mounting.
