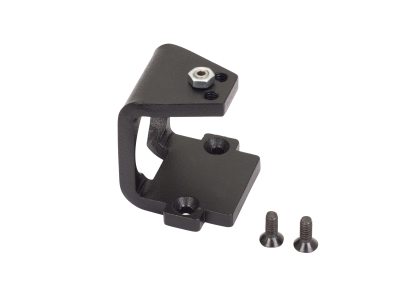

Prism Mount, 1.0 in. Cube, Requires OC1-CM-B

Prism Mount, 1.0 in. Cube, Requires OC1-CM-B

Model: OC1-CM-P

$56

2 Weeks

Compare

Add to List

Product Series Overview

Optics Cage Plus Mounting Cube

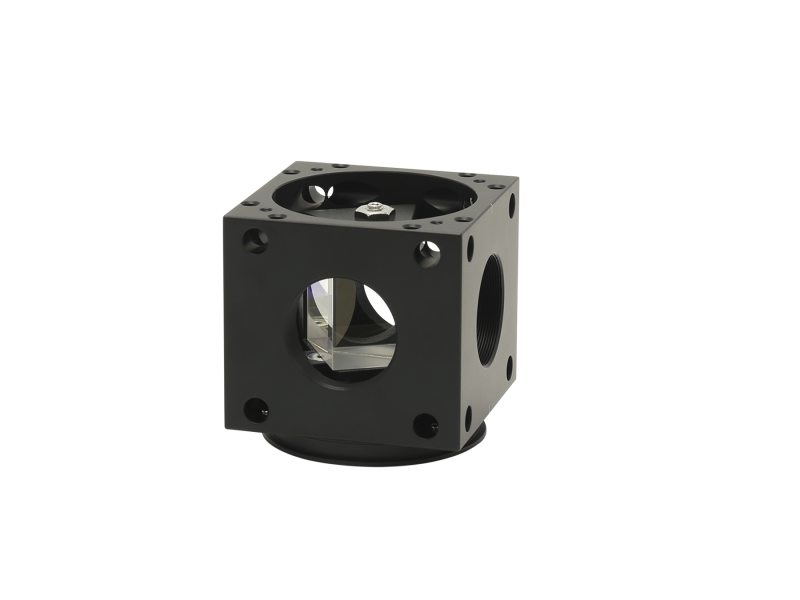

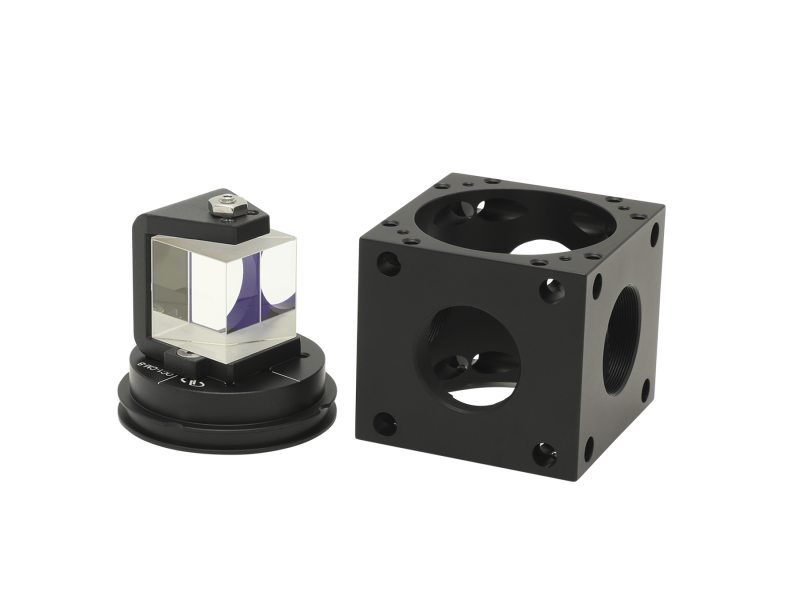

Optics Cage Prism Mount, 1 in. Cube. It mounts inside the OC1-CM cube using the OC1-CM-B base.

Specifications

Technical Specs

Type

Prism Mount
Clear Aperture

23.9 mm
Optic Diameter

25.4 mm

Optic Thickness

25.4 mm
Material

Aluminum

Type

Prism Mount
Clear Aperture

23.9 mm
Optic Diameter

25.4 mm

Optic Thickness

25.4 mm
Material

Aluminum

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

OC1-CM-P-336 (94.8 kB, PDF)

Other

OC1-CM-P RoHS Certificate (277.3 kB, PDF)
OC1-CM-P_RoHS2021.pdf (679.3 kB, PDF)

Related Products

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		OC1-CM-B Cube Mount Base, Optics Cage Plus	UNIVERSAL		In Stock	$29
		OC1-CM Mounting Cube, Optics Cage Plus	UNIVERSAL		In Stock	$87

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		OC1-CM-A Adjustable Cube Mount, Optics Cage Plus	UNIVERSAL		In Stock	$418
