PI Series Intermediate Adaptor Plates
PI Series Intermediate Adaptor Plates
PI Series Intermediate Adaptor Plates are designed to allow two components of different sizes and without a common hole pattern to be attached together. They are made of anodized aluminum.
- Attach components without common hole pattern
- Square and round versions
- Compatible with UMR series stages See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

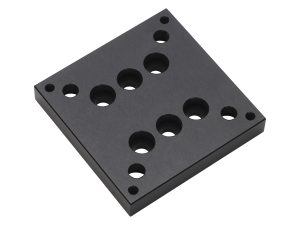

 | 338282Intermediate Adaptor Plate, 50 x 50 mm Square, PI50.02 Series | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

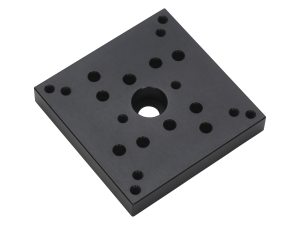

 | 338283Intermediate Adaptor Plate, 50 x 50 mm Square, PI50.01 Series | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

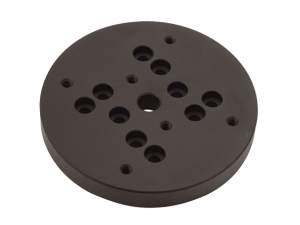

 | 338293Intermediate Adaptor Plate, Round, Φ65 mm, PI50.01 Series | |||||

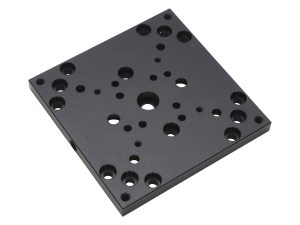

 | 338284Intermediate Adaptor Plate, 86 x 86 mm Square, PI86.01 Series | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

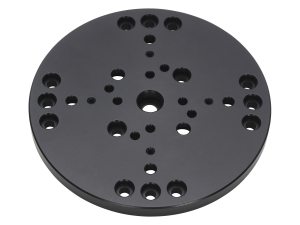

 | 338294Intermediate Adaptor Plate, Round, Φ105 mm, PI86.01 Series | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

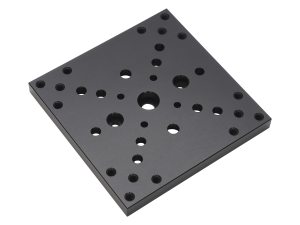

 | 338286Intermediate Adaptor Plate, 86 x 86 mm Square, PI86.02 Series | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

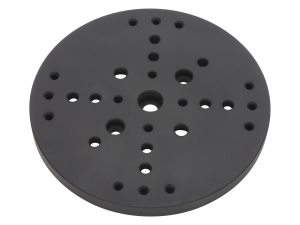

 | 338296Intermediate Adaptor Plate, Round, Φ105 mm, PI86.02 Series | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 338285Intermediate Adaptor Plate, 120 x 120 mm Square, PI120 Series | FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features

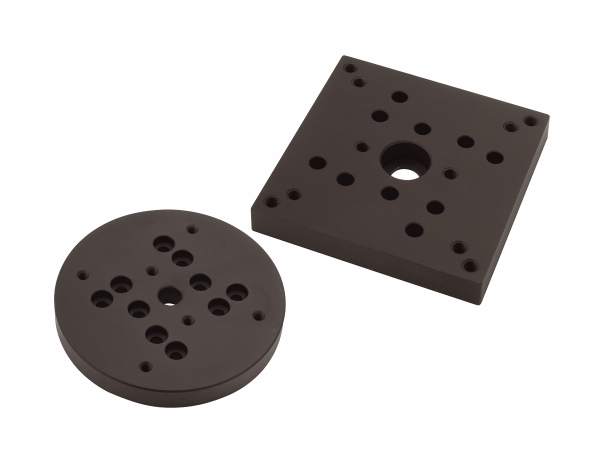

Square or Round Adapter Plates
These round and square adapter plates are compatible with UMR series linear stages, UTR series rotation stages, MVN series vertical stages, and PO series tip & tilt platforms. Please check out the drawings for compatibility.
