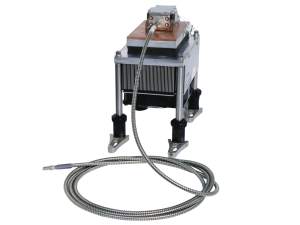

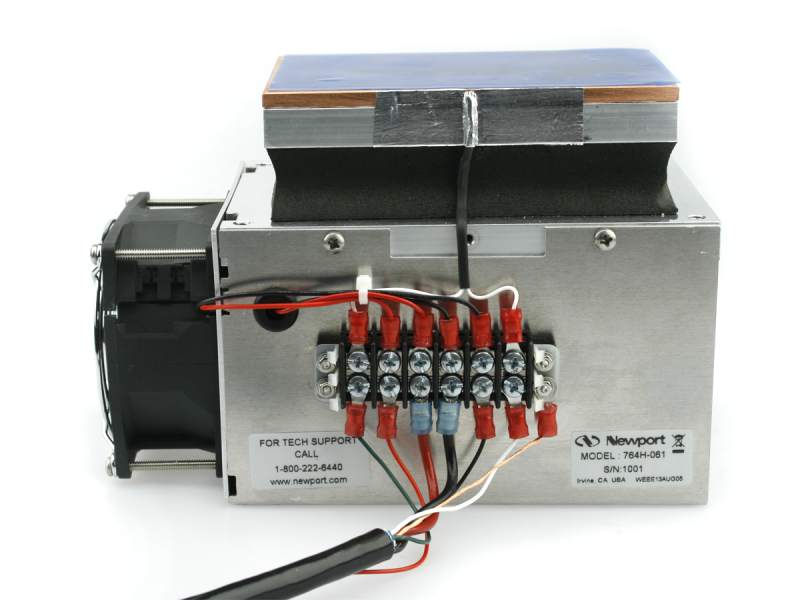

The 764H Series high-power laser diode mounts use an industrial grade heat sink and cooling fan design to provide an air cooled thermal solution for high power laser diodes and bars. Both free-space and fiber-coupled diode laser bars can be accommodated with the flexible top mounting plate. When connected to Newport's 3700 High Power TEC Controller Model 764H-061 can dissipate up to 61 watts, and model Model 764H-110 can handle up to 110 W of waste heat at 25°C ambient temperature.
- Capable of handling up to 110 watts of thermal load
- Compatible with Model 3700 High Power Temperature Controller
- Efficient fan cooling with easy operation See All Features
Specifications
| Models |  |  | |
|---|---|---|---|
| Package Type | CS Bar | CS Bar | |
| TE Cooler | Yes | Yes | |
| Temperature Range | -10 to 80°C | -10 to 80°C | |
| Temperature Sensor | 10 kΩ NTC Thermistor | 10 kΩ NTC Thermistor | |
| TEC Controller Connector Type | Pigtailed D-Sub 7W2 Male | Pigtailed D-Sub 7W2 Male | |
| Heat Dissipation Capability | 61 W | 110 W | |
| Dimensions | 141 x 120 x 200 mm | 197.3 x 143 x 221 mm | |
| Weight | 3.7 kg | 5 kg |
Features
Fine Control of High Power Diode Temperature
An internal series of Peltier Thermoelectric (TE) coolers provide for fine control of the device temperature, enabling wavelength tuning and outstanding stabilization.
Flexible Diode Mounting on Top Copper Plate

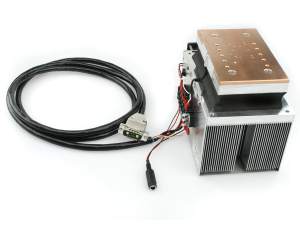

The copper mounting plate offers a range of mounting holes to work with a wide variety of high power laser diodes. -061 is shown. Laser diodes offered by other manufacturers in the market can be accommodated with special hole patters that can be drilled on the copper plate. The top copper plate is also sold separately in case custom hole patterns need to be created. Spare plates can be ordered as required.
Accessories
Recommended Temperature Controller
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 3700Temperature Controller, Thermoelectric, ±14A, ±24V, 336W, USB, High Power | In Stock |
Resources
Manuals
764H Series LD Mount User Manual(1.1 MB, PDF)
Other
MKS EU ROHS3 - 764H Series Mounts.pdf(232.2 kB, PDF)
Drawings & CAD

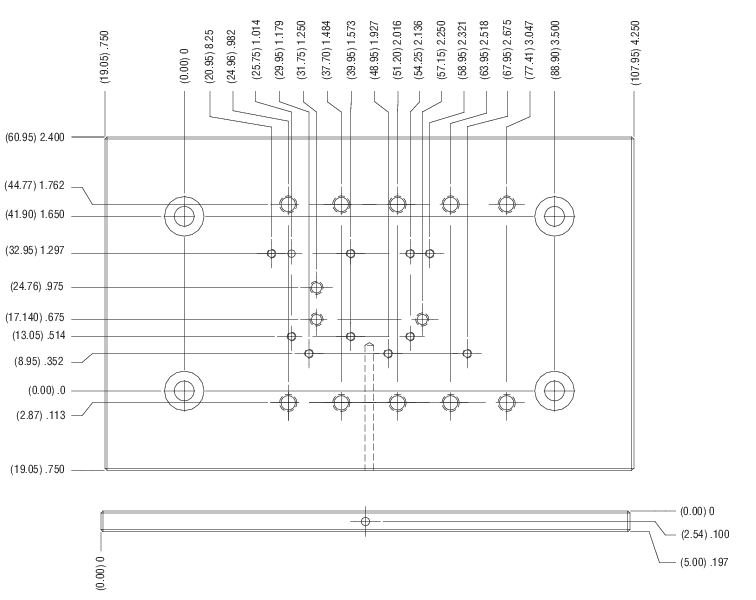

90032069 TOP PLATE 764H-110.pdf(134 kB, PDF) 90032068A Top Plate 764H-061.pdf(106.1 kB, PDF)
