100+ intuitive, 2 letter ASCII commands

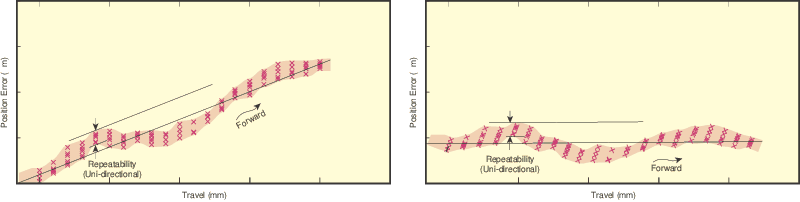

Linear error and backlash compensation

Digital PID servo loop with velocity and acceleration feed forward

2D Contouring with continuous buffer loading, Trapezoidal velocity profile, S-curve velocity profile

2-phase stepper and Brush DC

Linear, Backlash

ESP Stage Detection

Synchronized pt to pt, 3D Linear and 2D circular interpolation, Master-slave, Electronic Gathering

16 bit DAC resolution, 5 MHz maximum encoder input frequency, Digital PIDFF servo loop, 0.4 ms update rate

Touch Screen

3 kg

115/230 V, 50/60 Hz

ASCII, LabView™, Newport ESP Utility, Store up to programs in either 64kB or 300kB non-volatile memory

87 H x 223 W x 223 D mm

Yes
