Aegis Qube™ Access, Adapter, and Cover Plates
Aegis Qube™ Access, Adapter, and Cover Plates
We offer a wide variety of access, adapter, and cover plates for customizing the Q-OC-1 cubic enclosure.
- Adapter plates for interfacing Aegis Qubes
- Cover plates for unused cube faces
- Post adapters plates for mounting Aegis Qubes See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | Q-CC-1Connector Peg, Connects Two Cubes Face to Face | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | Q-XE-CP-BCube Cover Plate, No Access Holes | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | Q-XE-CP-1Cube Cover Plate, with Access Holes | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | Q-XE-CP-WCube Cover Plate, with Sliding Window | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | Q-XE-TA-1Adaptor Plate, Beam Tube, Aegis Qube | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | Q-XE-TA-RAdaptor Plate, Beam Tube, Light Tight | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | Q-XE-LT10-AAdaptor Plate, LT10 Lens Tube, Aegis Qube | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | Q-XE-DI-1Access Plate, Probe Beam, Aegis Qube | |||||

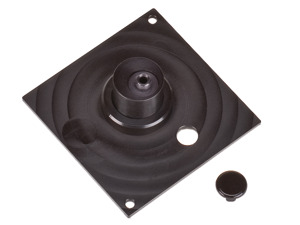

 | Q-XE-DI-2Access Plate, SMA Beam, Aegis Qube | In Stock | ||||
 | Q-CP-1Post Mount Adaptor, 8-32 CLR, Aegis Qube | In Stock |
Features
Cube Connector Peg

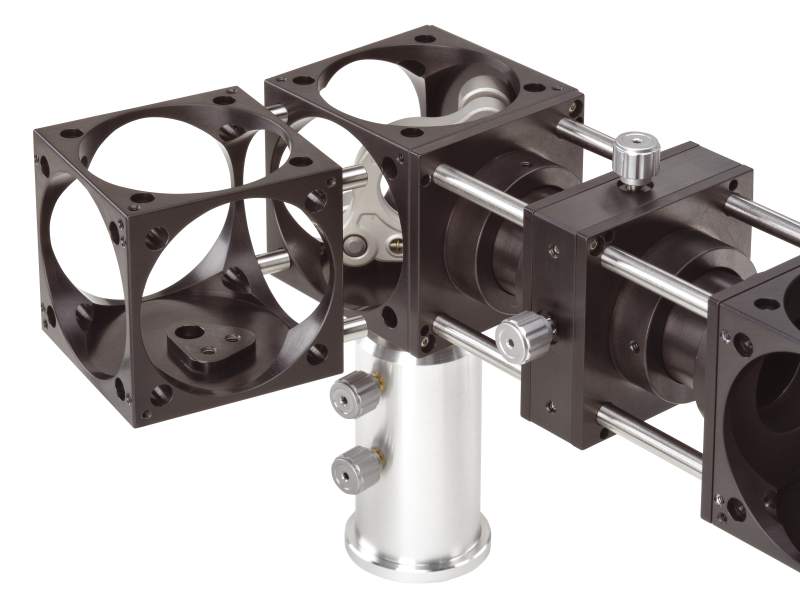

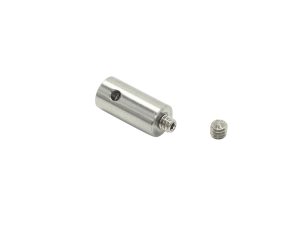

The Q-CC-1 Cube Connector Pegs are used to mount two cubes together, face-to-face.
Cube Cover Plate

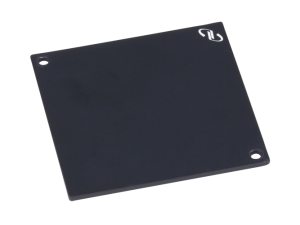

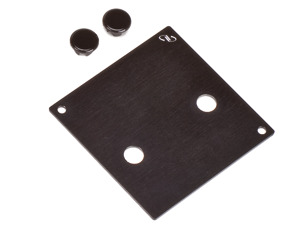

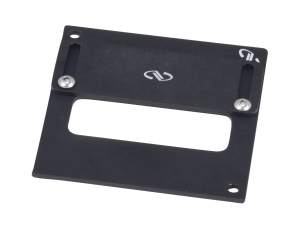

Three types of cover plates are available to cover any open face of the Q-OC-1 cube: blank Q-XE-CP-B, Q-XE-CP-1 with access holes, and Q-XE-CP-W with sliding window.
Beam Tube Adaptor Plate

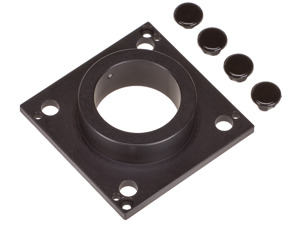

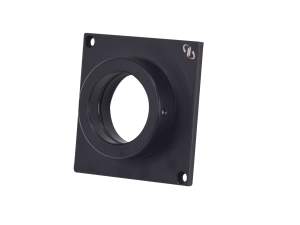

The Q-XE-TA-1 and Q-XE-TA-R adaptors allow Q-BT series beam tubes to be attached to any of the 5 open faces of the cube. Q-XE-TA-R is designed to be light tight while Q-XE-TA-1 provides positioning flexibility with a slightly larger aperture.
Lens Tube Adaptor Plate

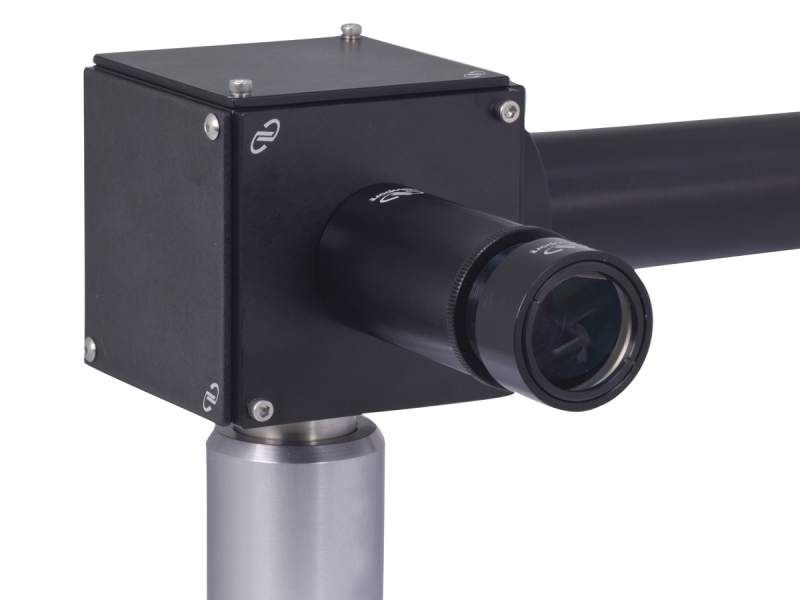

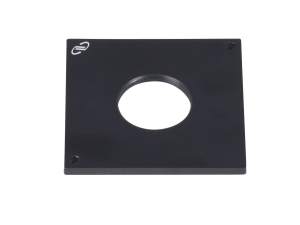

The Q-XE-LT10-A allows LT10 series lens tube to be attached to any of the 5 open faces of the cube.
Post Mounting Adaptor Plate

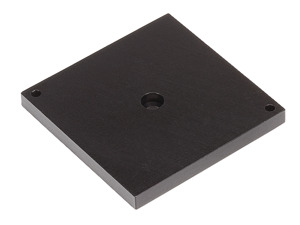

The Q-XE-RA-1 allows 1.5 in. optical pedestal to be used with the Aegis Qube™ System. Q-CP-1 features 8-32 counterbored hole in the center and allows optical post mounting of the cube via any one of its 5 open faces.
Rod Clamping Adaptor Plate

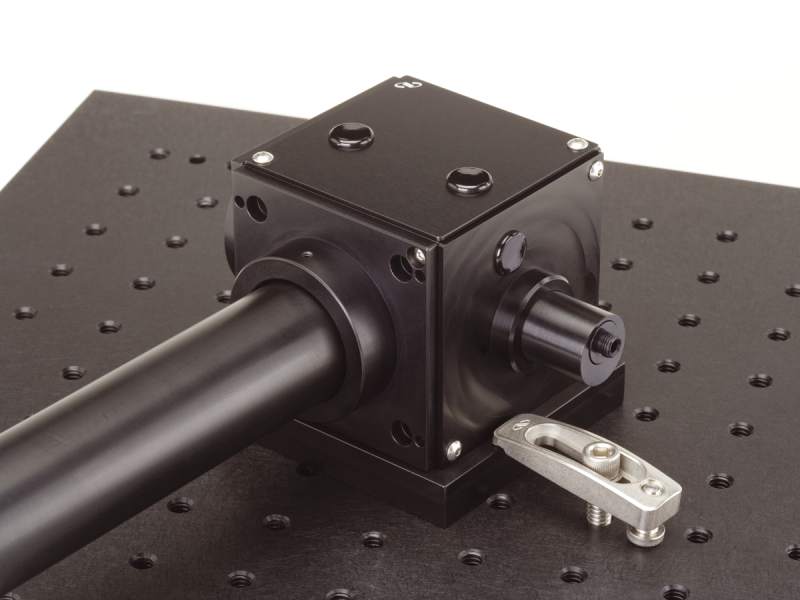

The Q-XE-MA-1 allows a cube to be mounted directly to an optical table via base clamps such as
