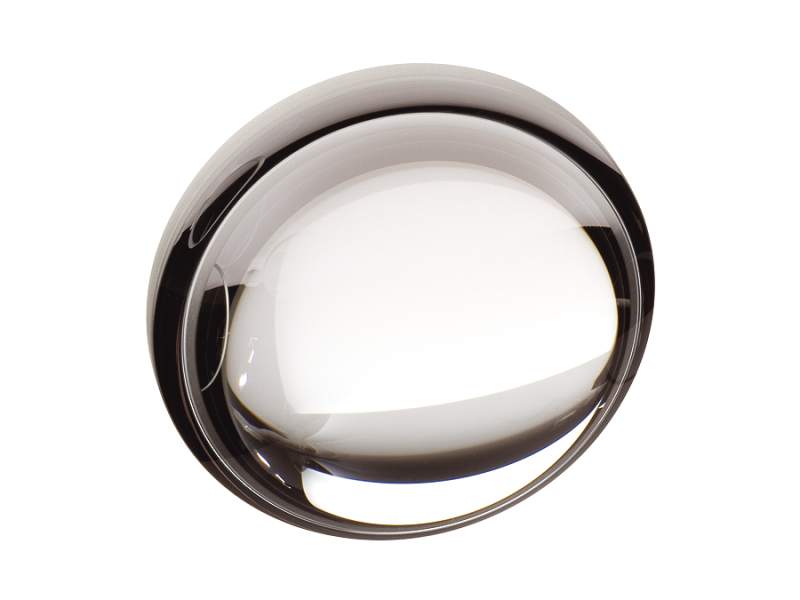

Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 1000 mm EFL, 430-700nm
Bi-Convex Lens, Fused Silica, 50.8 mm Diameter, 1000 mm EFL, 430-700nm
Model: SBX070AR.14
In Stock
Product Series Overview
Visible UVFS Bi-Convex LensesThe SBX070AR.14 Fused Silica Bi-Convex Lens is a 50.8 mm diameter, 430 to 700 nm anti-reflection coated, fused silica bi-convex lens with an effective focal length of 1000 mm. It is designed to meet the demanding requirements of laser electro-optic applications. Newport's UV grade fused silica precision bi-convex lenses are polished to tight tolerances using master test plates to ensure minimum wavefront distortion. UV grade fused silica will not fluoresce under UV light and is resistant to radiation. And for high-energy applications, the extreme purity of fused silica eliminates microscopic defect sites that could lead to laser damage.
Specifications
- Lens ShapeBi-Convex
- Diameter50.8 mm
- Lens MaterialUV Fused Silica
- Antireflection Coating430-700 nm
- Coating TypeVisible Multilayer
- Coating CodeAR.14
- Damage Threshold7.5 J/cm2, 10 ns pulses, 10 Hz at 532 nm
- Surface Quality20-10 scratch-dig
- Surface Flatnessλ/2
- λ/8
- 1.5 λ
- F/#19.7
- 1000 mm
- 998.73 mm
- 917.459 mm
- 3.0 mm
- 3.703 mm
- Principal Plane 1 (P<sub>1</sub>)1.27 mm
- Principal Plane 2 (P<sub>2</sub>)-1.27 mm
- Design Wavelength589 nm
- Centration≤3 arc min
- Chamfers0–0.8 mm face width
- Chamfers Angle/Tolerance45° ±15°, typical
- Focal Length Tolerance±1 %
- Diameter Tolerance+0/-0.1 mm
- Center Thickness Tolerance±0.1 mm
- Clear Aperture≥central 90% of diameter
- Cleaning
