Modular, Peg-Joining Ball Bearing Stages

Specifications

  • Maximum Stage Travel
    12.7 mm (460P-05 models)
    25.4 mm (460P models)
  • Centered Normal Load Capacity
    67 N
  • Vertical Axial Load Capacity
    22 N
  • Angular Deviation
    <150 µrad
  • Material
    Aluminum
  • Bearings
    Single-Row Ball Bearings
  • Drive Location
    Center drive
  • Thread Type
    8-32 and 1/4-20
    M4 and M6 (M- models)

Resources & Downloads

Related Products

Pegs and Screws

Compare Description Drawings, CAD & Specs Avail. Price
Linear Stage Joining PegsPEG-10Joining Pegs, 460P Series, 1/4-20 Thread, Pack of 10
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$124

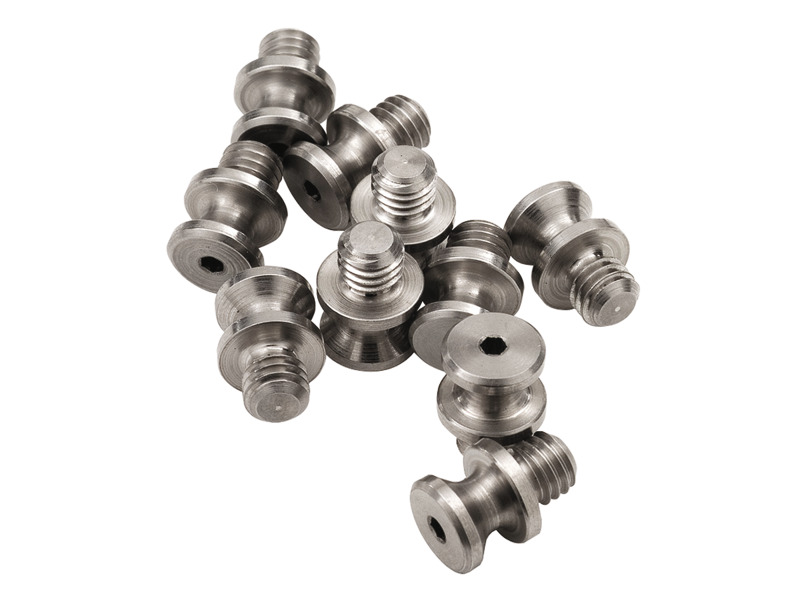

Linear Stage Joining PegsM-PEG-10Joining Pegs, 460P Series, M6 Thread, Pack of 10
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$124
Stainless Steel Cap ScrewsSCREW-10Socket Head Cap Screws, Low-Profile, 1/4-20, Qty 10
Contact Us
$75
Stainless Steel Cap ScrewsM-SCREW-10Socket Head Cap Screws, Low-Profile, M6, Qty 10
Contact Us
$75

Bases, Angle Brackets and Adaptors

Compare Description Drawings, CAD & Specs Avail. Price
460P Series Base Plates460P-BASlotted Base Plate, 460P Series Linear Stage, 1/4-20
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$75

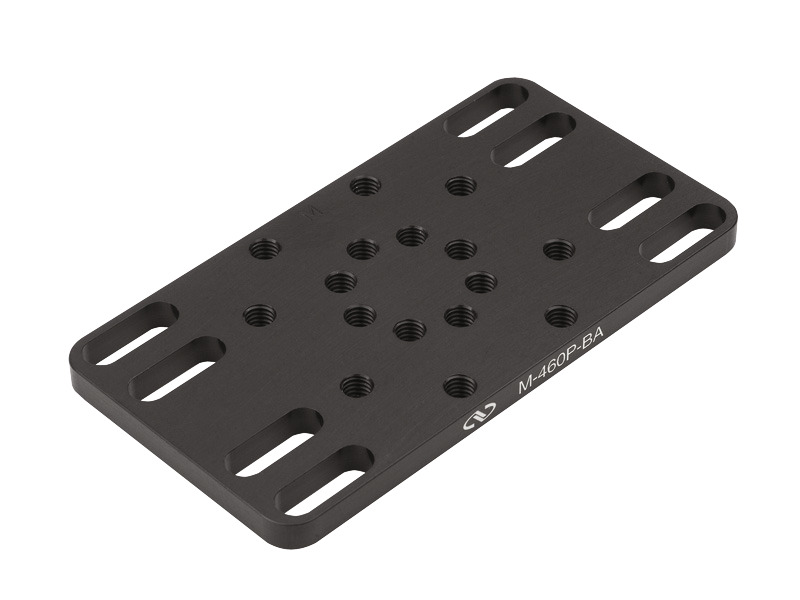

460P Series Base PlatesM-460P-BASlotted Base Plate, 460P Series Linear Stage, M6
2 Weeks
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$75
460P Series 90 Degree Angle Brackets460P-90BK90 Degree Angle Bracket, 460P Series
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$150
460P Series 90 Degree Angle BracketsM-460P-90BK90 Degree Angle Bracket, M-460P Series
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$150

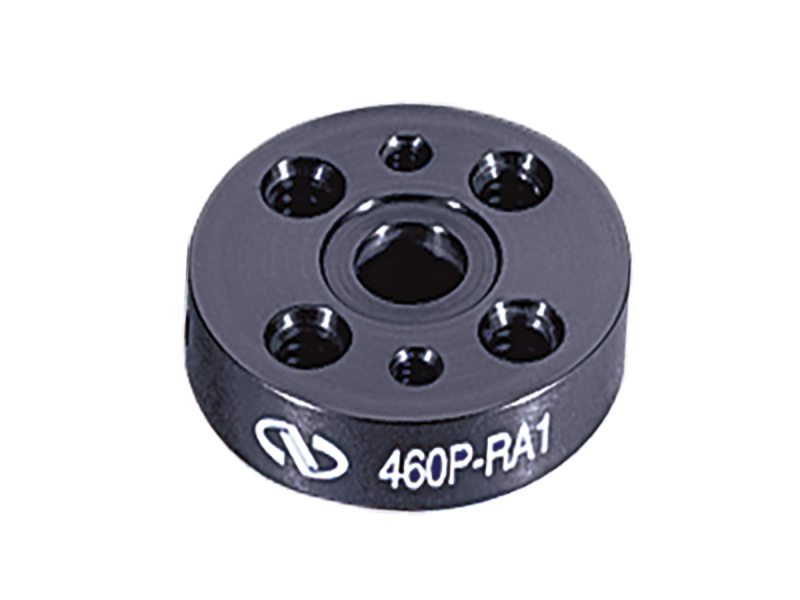

Peg Rotation Bases460P-RA1Peg Rotation Base, 1.5 in. Diameter
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$59

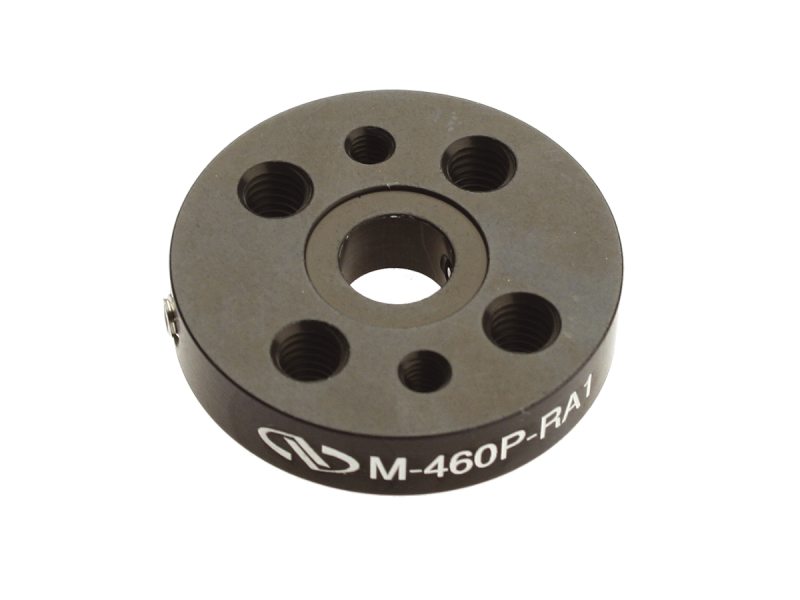

Peg Rotation BasesM-460P-RA1Peg Rotation Base, 31.8 mm Diameter
In Stock
$59
Peg Rotation Bases460P-RA2Peg Rotation Base, 2.6 in. Diameter
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$78

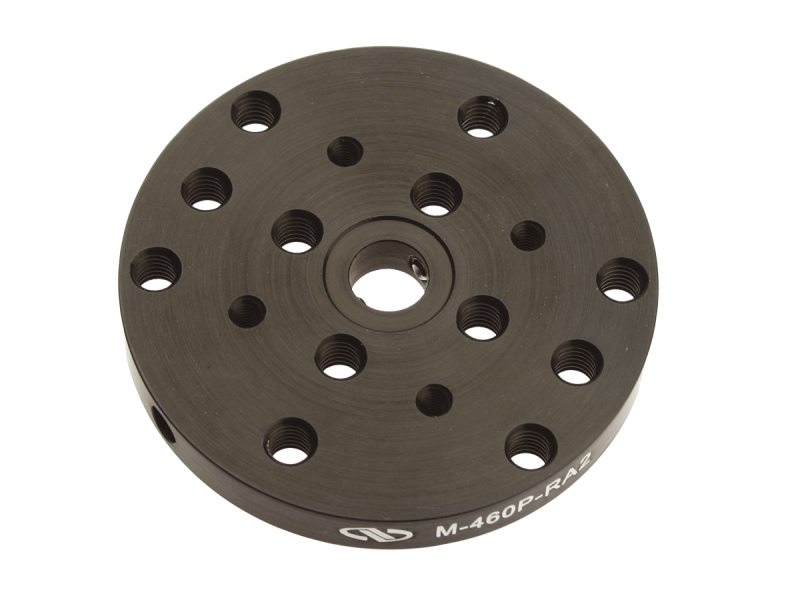

Peg Rotation BasesM-460P-RA2Peg Rotation Base, 64.8 mm Diameter
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$78
