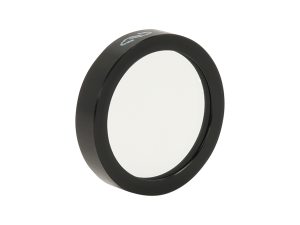

Argon-Gap™ UV Bandpass Filters

These 206 to 300 nm bandpass filters are fabricated using our Argon-Gap™ Technology. These filters demonstrate superior spectral stability and field lifetime in demanding applications such as water purification and environmental monitoring. Argon-Gap™ technology employs a proprietary sealing process that eliminates sources of solarization by-products, such as epoxy sealants.

206 to 300 nm center wavelengths
Argon-gap filter technology
Superior spectral stability and field lifetime
Eliminates sources of solarization

See All Features

Show Filters:

Showing 10 of 13 total products

Compatibility:

Description	Compatibility	Center Wavelength	FWHM	Avail.	Price
10BPF10-206UV Bandpass Filter, 25.4 mm, 206±2 nm Center, 12±2 nm FWHM	UNIVERSAL	206 nm	12±2 nm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$389
10BPF10-214UV Bandpass Filter, 25.4 mm, 214±3 nm Center, 11±3 nm FWHM	UNIVERSAL	214 nm	11±3 nm	6 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$402
10BPF10-228UV Bandpass Filter, 25.4 mm, 228±2 nm Center, 11±3 nm FWHM	UNIVERSAL	228 nm	11±3 nm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$389
10BPF10-232UV Bandpass Filter, 25.4 mm, 232±2 nm Center, 11±3 nm FWHM	UNIVERSAL	232 nm	11±3 nm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$389
10BPF10-239UV Bandpass Filter, 25.4 mm, 239±2 nm Center, 11±3 nm FWHM	UNIVERSAL	239 nm	11±3 nm	1 Week FREE 2-day shipping on thousands of products on Newport.com Learn More	$389
10BPF10-250UV Bandpass Filter, 25.4 mm, 250±3 nm Center, 11±3 nm FWHM	UNIVERSAL	250 nm	11±3 nm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$402
10BPF10-260UV Bandpass Filter, 25.4 mm, 260±3 nm Center, 11±3 nm FWHM	UNIVERSAL	260 nm	11±3 nm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$402
10BPF10-265UV Bandpass Filter, 25.4 mm, 265±2 nm Center, 12±2 nm FWHM	UNIVERSAL	265 nm	12±2 nm	6 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$389
10BPF10-270UV Bandpass Filter, 25.4 mm, 270±3 nm Center, 12±2 nm FWHM	UNIVERSAL	270 nm	12±2 nm	6 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$402
10BPF10-280UV Bandpass Filter, 25.4 mm, 280±3 nm Center, 12±2 nm FWHM	UNIVERSAL	280 nm	12±2 nm	In Stock	$402

Show All

Specifications

Type
UV Bandpass Filter
Effective Index of Refraction
1.39
Size
Ø25.4 mm
Size Tolerance
+0/-0.5 mm
Thickness
5.1 mm
Surface Quality
80-50 scratch-dig

Minimum Peak Transmission
12%
Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Clear Aperture
20.2 mm
Temperature Range
-50° to +100°C
Wavelength Shift with Temperature
0.01 to 0.02 nm/°C

Features

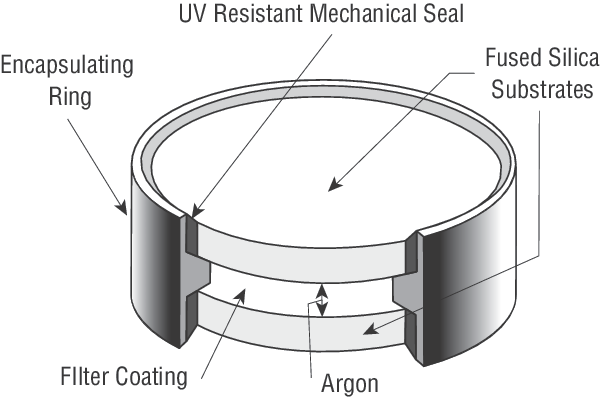

Argon-Gap Technology

Our UV band-pass filters in the 214 nm to 300 nm range are fabricated using our Argon-Gap Technology. These filters demonstrate superior spectral stability and field lifetime in demanding applications such as water purification and environmental monitoring. Argon-Gap technology employs a proprietary sealing process that eliminates sources of solarization by-products, such as epoxy sealants. Solarization by-products, which are created by the chemical breakdown of organic materials resulting from exposure to ultraviolet light, are a principal cause of premature failure of short-UV filters.

Transmittance Data Curve for 206 to 239 nm Models

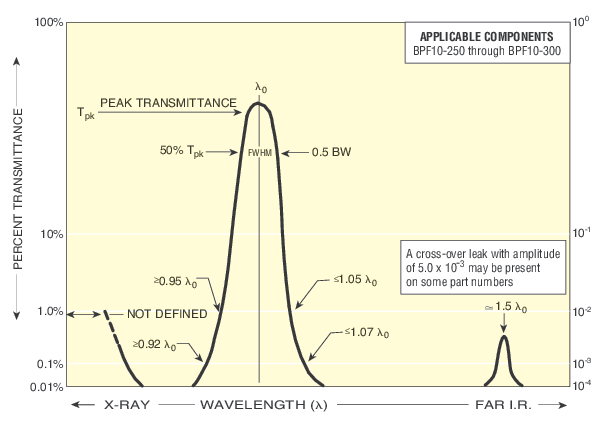

Transmittance Data Curve for 250 to 300 nm Models

Optical Filter Mounts

We offer a wide variety of optical filter mounts for securing and locating your optical filter. Popular types include:

Accessories

UV Bandpass Filters with Center Wavelength in 300-400 nm Region

Description	Compatibility	Avail.	Price

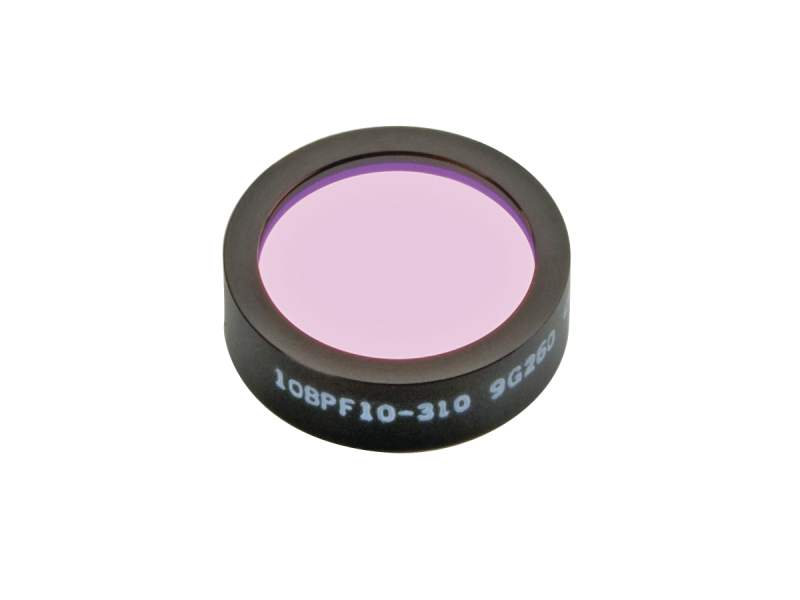

10BPF10-310Bandpass Filter, 25.4 mm, 310±2 nm Center, 11±2 nm FWHM	UNIVERSAL	In Stock	$513

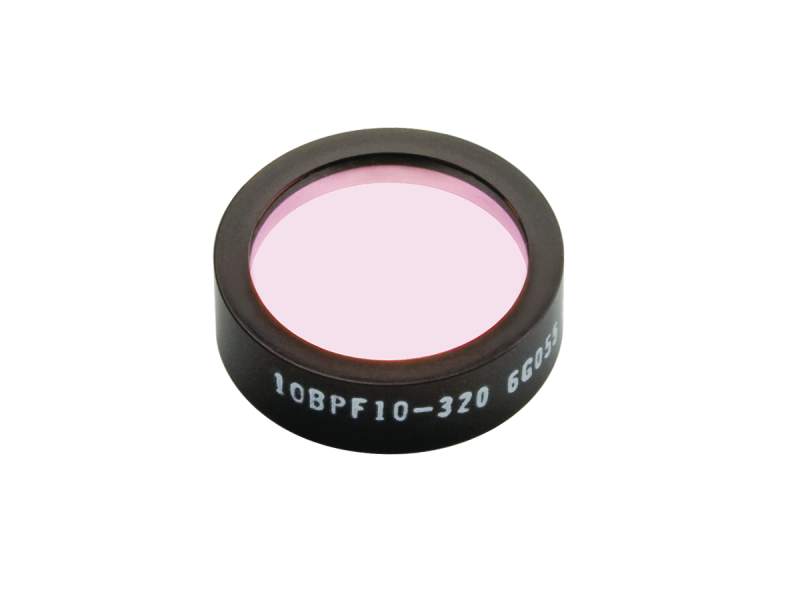

10BPF10-320Bandpass Filter, 25.4 mm, 320±2 nm Center, 12±2 nm FWHM	UNIVERSAL	In Stock	$523
10BPF10-330Bandpass Filter, 25.4 mm, 330±2 nm Center, 11±2 nm FWHM	UNIVERSAL	In Stock	$389
10BPF10-340Bandpass Filter, 25.4 mm, 340±2 nm Center, 12±2 nm FWHM	UNIVERSAL	In Stock	$388
10BPF10-350Bandpass Filter, 25.4 mm, 350±2 nm Center, 11±2 nm FWHM	UNIVERSAL	In Stock	$388
10BPF10-360Bandpass Filter, 25.4 mm, 360±2 nm Center, 11±2 nm FWHM	UNIVERSAL	In Stock	$388

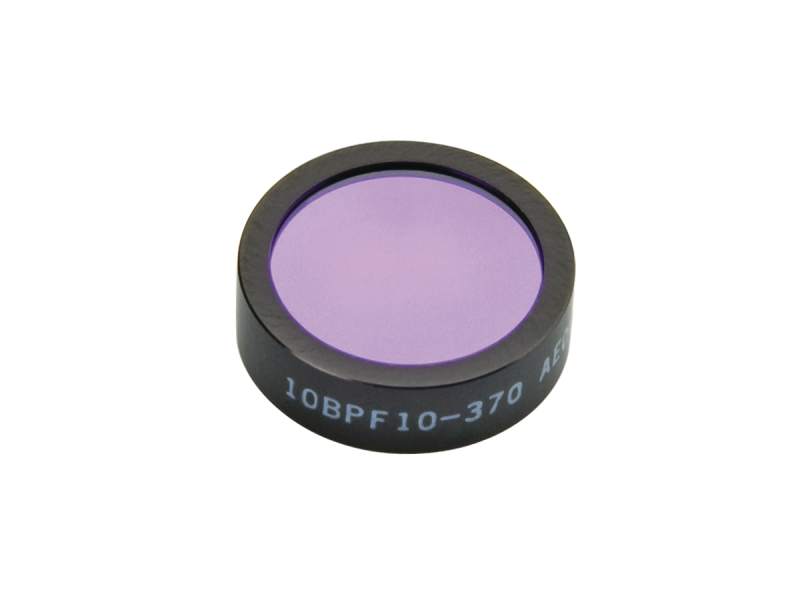

10BPF10-370Bandpass Filter, 25.4 mm, 370±2 nm Center, 12±2 nm FWHM	UNIVERSAL	In Stock	$388

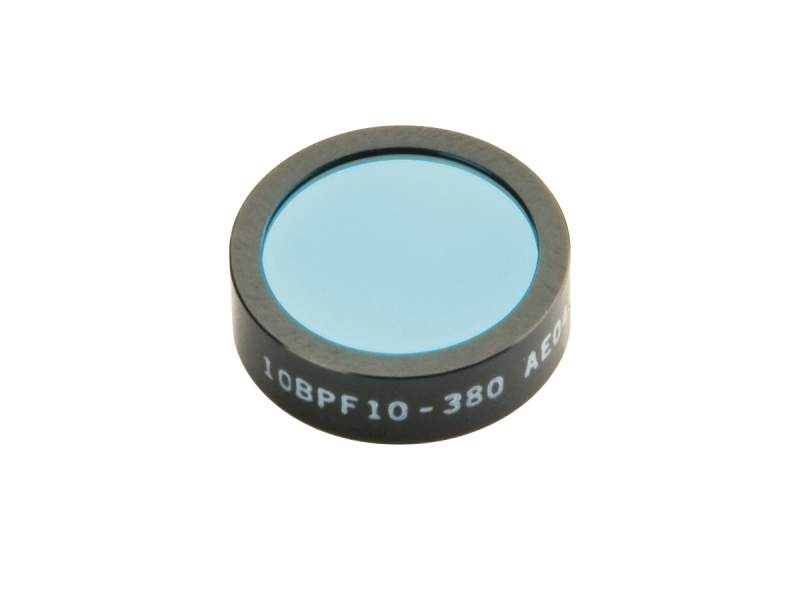

10BPF10-380Bandpass Filter, 25.4 mm, 380±2 nm Center, 12±2 nm FWHM	UNIVERSAL	In Stock	$377
10BPF10-390Bandpass Filter, 25.4 mm, 390±2 nm Center, 12±2 nm FWHM	UNIVERSAL	In Stock	$377
