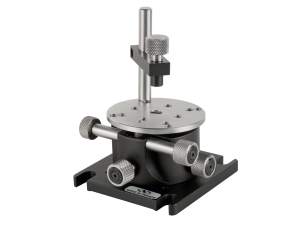

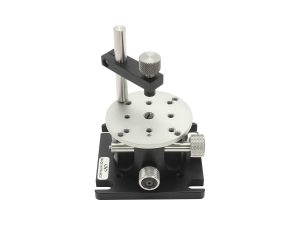

PO Tilt and Rotation Stages provide two independent tilt adjustments plus the added versatility of an in-plane rotation adjustment. These adjustments allow optical components like prisms and acousto-optic modulators to be oriented parallel to a desired plane, and then rotated within that plane. Three high-resolution drive options are available All three axes are spring-loaded to eliminate backlash

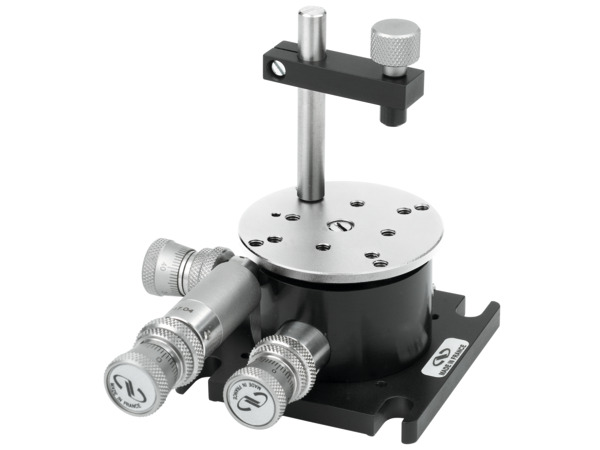

The Differential Micrometers used on these stages provide sensitivity that is 10X better than that from a standard adjustment screws.

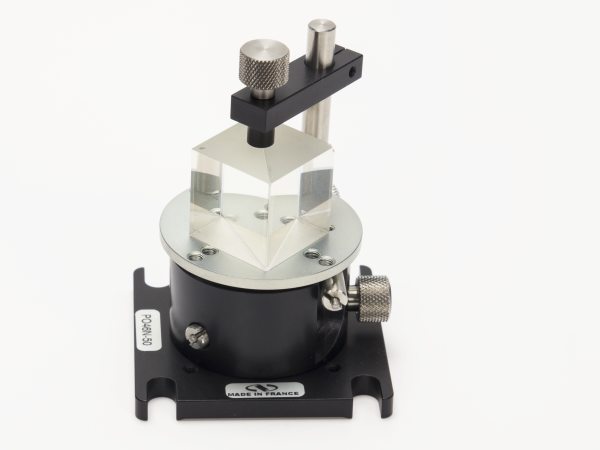

For easy insertion and removal of optical components, a mounting clamp is included. The spring-loaded clamp securely, yet gently, holds optics to the platform.

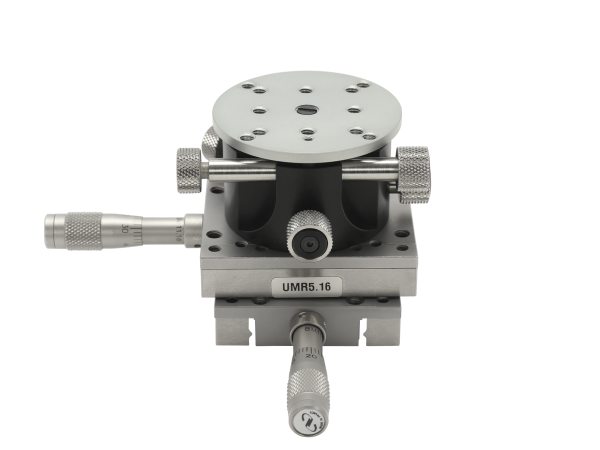

With base plate being removed, the Three-Axis Prism Tilt Mounts can be integrated with UMR5.16 or UMR5.25 High Load Linear Stages to provide multi-axis motion in a compact profile and can be easily adapted to fit a specific system's needs.

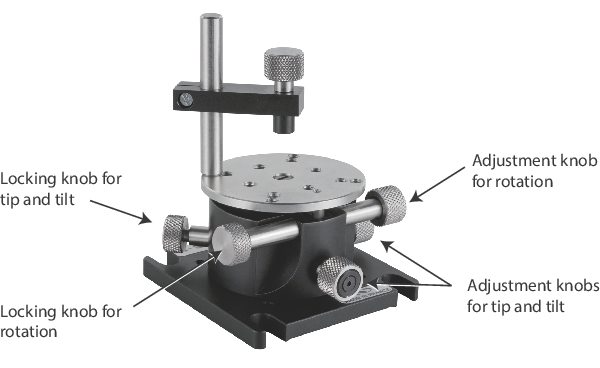

For long-term stability, (M-)PO46BL-50 Three-Axis High-Resolution Prism Tilt Mount features lockable actuators. To lock the tip and tilt adjustment, simply tighten the knob at the corner of the mount to prevent unintended adjustments. The knob aligned with the rotation adjuster locks the in-plane rotation.
