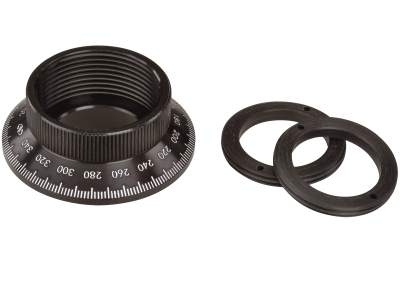

Mirror Mount Optic Rotation Adapter

This optic rotation adapter inserts into 1 inch mirror mounts and provides rotation of 1 inch (25.4 mm) diameter polarizers or wave plates.

Rotates 1 inch (25.4 mm) diameter optics
Mounts in standard 1 inch mirror mounts
2° graduations
Includes two 1.063-20 retaining rings

See All Features

	Compare	Description	Compatibility	Drawings, CAD & Specs	Optic Diameter	Avail.	Price
		UPA-RM1ARotation Mount, Polarizer, 1 inch, For U100-A Mount	UNIVERSAL		25.4 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$75

Specifications

Optic Diameter
1.0 in. (25.4 mm)
Angular Range
360°
Drive Type
Manual
Graduations
2°

Drive Mechanism
Manual
Retaining Ring
Two Included
Retaining Ring Thread
1.063-20

Features

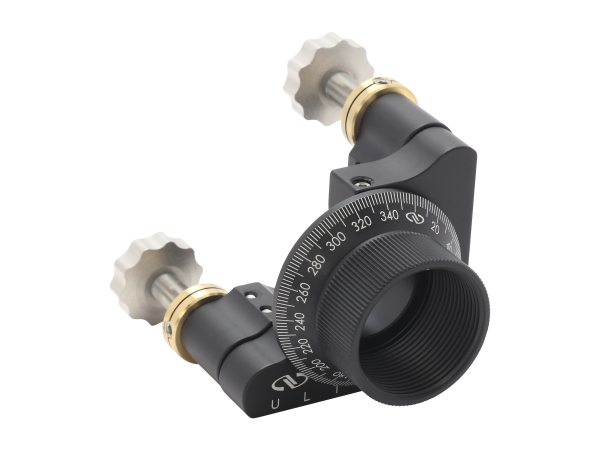

Polarizer Rotation Mount

UPA-RM1A Polarizer Rotation Adapter inserts into 1.0 in. mirror mounts and provides rotation of 1.0 in. (25.4 mm) diameter polarizers or wave plates. The 1.063-20 threaded aperture accommodates mounting calcite polarizers and CH Series cube beamsplitter holders. Two 1.063-20 retaining rings are included.

Accessories

Compatible Adaptors

Description	Compatibility	Avail.	Price
CH-0.5Cube Beamsplitter Holder, 0.5 in. Cubes, 1.063-20 Threaded Mounts	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$169
PRA-05Polarizer Adaptor, 12.7 mm Optics to 1.063-20 Threaded Mounts	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$43
RSA-1TISolid Insert, RSP-1T Rotation Stage	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$17.70
LT10-NP1Thread Adaptor, 1.0 in. Lens Tubes, 1.035-40 to 1.063-20 Mount Thread	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$17.70

Compatible Retaining Rings

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		A-1.25-1RRRetaining Ring, 19.2 mm ID, 1.063-20 Thread	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$6.60
		A-1.25-1RR-LRetaining Ring, 22.9 mm ID, 1.063-20 Thread	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$9.50
