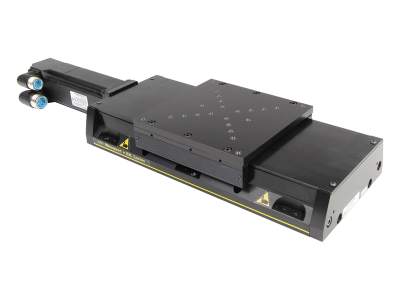

IDL-BL Industrial Brushless DC Motor Linear Stages

The mid-travel IDL-BL industrial-grade linear stages feature a ballscrew and brushless motor drive for high duty cycle and high throughput applications. They are configurable in XY or XYZ stacks.

150 mm or 300 mm travel range
High efficiency, brushless DC motor - speeds up to 300 mm/s
Easy direct mounting of XY or XYZ configurations
Compatible with many industrial controllers
Optional brake available

See All Features

Description	Compatibility	Travel Range	Brake	Avail.
IDL165-150BLMotorized Linear Stage, Industrial, Brushless DC Motor, 150 mm Travel, M6	UNIVERSAL	150 mm	No	Contact Us
IDL165-300BLMotorized Linear Stage, Industrial, Brushless DC Motor, 300 mm Travel, M6	UNIVERSAL	300 mm	No	Contact Us
IDL165-150BLBKMotorized Linear Stage, Industrial, Brushless DC Motor, 150 mm Travel, Brake, M6	UNIVERSAL	150 mm	Yes	Contact Us
IDL165-300BLBKMotorized Linear Stage, Industrial, Brushless DC Motor, 300 mm Travel, Brake, M6	UNIVERSAL	300 mm	Yes

Notes:

We currently don’t have a standard compatible controller & driver solution to offer. Contact Us to discuss your application requirements and controller options.

Specifications

Models	IDL165-150BL	IDL165-150BLBK	IDL165-300BL	IDL165-300BLBK
Travel Range	150 mm	150 mm	300 mm	300 mm
Maximum Speed	300 mm/s	300 mm/s	300 mm/s	300 mm/s
Minimum Incremental Motion¹	1000 nm	1000 nm	1000 nm	1000 nm
Accuracy, Guaranteed	±3.0 µm	±3.0 µm	±5.0 µm	±5.0 µm
Bi-directional Repeatability, Guaranteed	±1.0 µm	±1.0 µm	±1.0 µm	±1.0 µm
Centered Load Capacity	450 N	450 N	450 N	450 N
Axial Load Capacity (+Cx)	250 N	250 N	250 N	250 N
Inverse Axial Load Capacity (-Cx)	-250 N	-250 N	-250 N	-250 N
Pitch, Guaranteed	±15 µrad	±15 µrad	±30 µrad	±30 µrad
Yaw, Guaranteed	±15 µrad	±15 µrad	±30 µrad	±30 µrad
Origin Repeatability	±0.5 µm	±0.5 µm	±0.1 µm	±0.5 µm
Cable Length	4.5 m	4.5 m	4.5 m	4.5 m
Weight	11.1 kg	9.8 kg	11.1kg	11.6 kg
MTBF	20,000 h (25% load, 30% duty cycle)	20,000 h (25% load, 30% duty cycle)	20,000 h (25% load, 30% duty cycle)	20,000 h (25% load, 30% duty cycle)
Compliance

Notes:

Driver dependent.

Features

Industrial-Level Build and Performance

The IDL-BL line is designed with side-bands, a hard cover and air purge, which equates to IP50 level dust protection. IDL-BL stages are ideal for industrial use where the environment is not well-controlled. The focus for the IDL-BL is high through-put, heavy load capacity, and extreme reliability.

High Efficiency, Brushless DC Torque Motor

A high efficiency brushless DC torque motor with rare-earth magnets supplies an optimum ratio of torque per inertia for high acceleration, with minimal stage heating. At maximum continuous torque, the temperature of the motor increases by only 30°C.

Easy Direct Mounting of XY Stack Configurations

The IDL-BL industrial stages are designed for easy direct mounting of XY configurations using common hole patterns. In addition, IDL-BL stages feature both imperial and metric mounting hole patterns allowing for flexible mounting on standard optical tables or custom granite bases.

Brake Option

IDL-BLBK models with brake are also available for vertical applications to carry as much as 12 kg loads like laser heads or optical assemblies.

Reliable Stage Delivery

Just like any other Newport product, the IDL-BL series can be ordered both from stock or under a blanket schedule. This ensures that OEMs meet their commitments.

Metrology Report Included at No Additional Cost

Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
