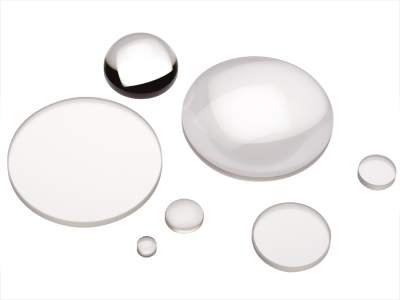

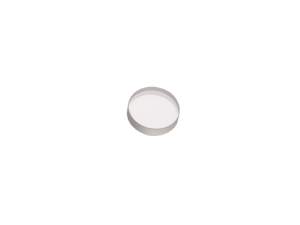

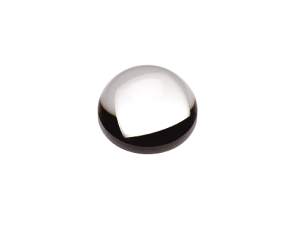

1064 nm N-BK7 Plano-Convex Lenses

Specifications

Technical Specs

Lens Shape
Plano-Convex

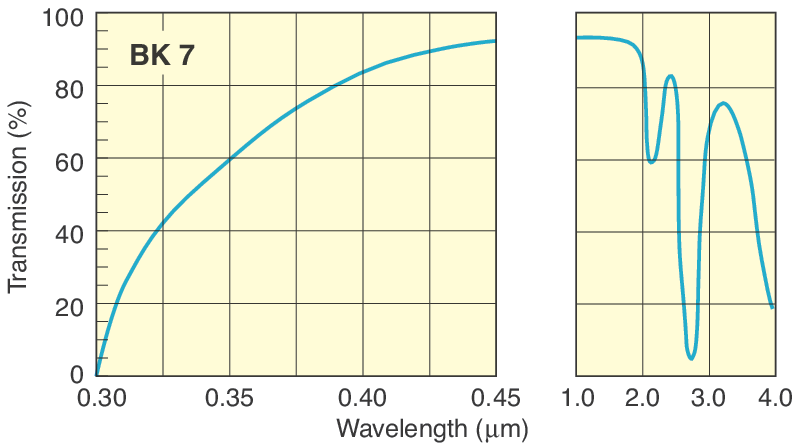

Lens Material
N-BK7

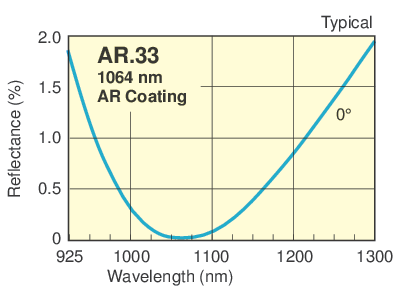

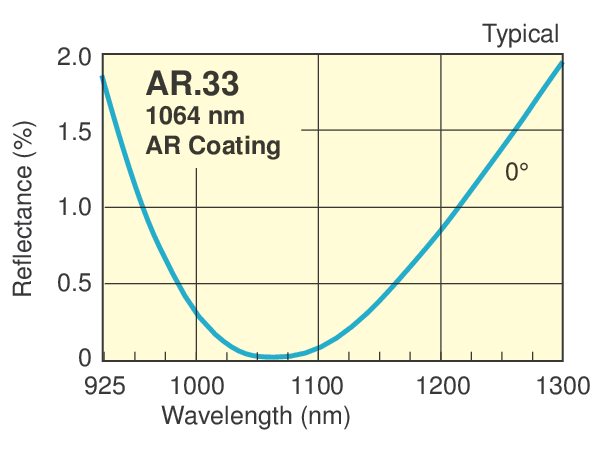

Coating Type
V-Coat Multilayer
Coating Code
AR.33
Damage Threshold
12 J/cm², 10 ns pulses, 10 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ

Effective Focal Length (EFL)
1064 nm
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Diameter Tolerance
+0/-0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics

Lens Shape
Plano-Convex
Lens Material
N-BK7
Coating Type
V-Coat Multilayer
Coating Code
AR.33
Damage Threshold
12 J/cm², 10 ns pulses, 10 Hz at 1064 nm
Surface Quality
40-20 scratch-dig
Surface Accuracy, Irregularity
λ/4
Surface Accuracy, Power
1.5 λ

Effective Focal Length (EFL)
1064 nm
Chamfers
0–0.8 mm face width
Chamfers Angle/Tolerance
45° ±15°, typical
Diameter Tolerance
+0/-0.1 mm
Clear Aperture
≥central 90% of diameter
Cleaning
See How to Clean Optics
