Sorry, this product is no longer offered for sale. The recommended replacement product is U-13X-LC.

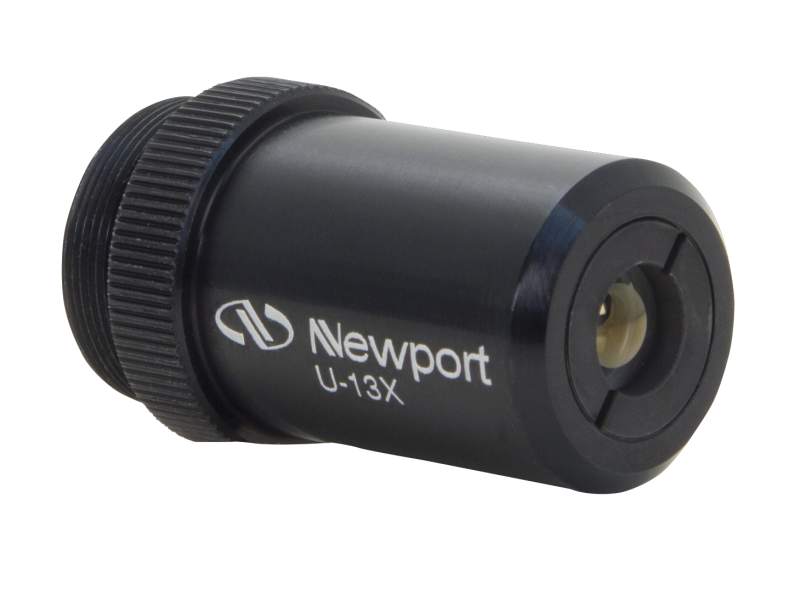

UV Objective Lens, 13x, 0.13 NA, 11.53 Focal Length, 245-440nm
The U-13X UV 13x Objective Lens has a rear conjugate corrected for infinity, making it ideal for UV laser applications. Computer-optimized optical designs yield wavefront quality better than 1λ for 300 nm. Damage threshold exceeds 8 J/cm2 with 12 nsec pulses at 1064 nm. Our standard AR.10 antireflection coating is optimized for 245–440 nm. The housing has a standard microscope objective thread for easy mounting.
Specifications
- Objective TypeUV Microscope
- Magnification13x
- Numerical Aperture0.13
- Wavelength Range245-440 nm
- Effective Focal Length (EFL)11.53 mm
- Working Distance6.82 mm
- Clear Aperture3.00 mm
Resources & Downloads
Other
U-13X_ROHS(146.4 kB, PDF)
2D Product Drawings
U-13X DWG-S(66.8 kB, PDF)
