Sorry, this product is no longer offered for sale. The recommended replacement product is PS-F-1.0.

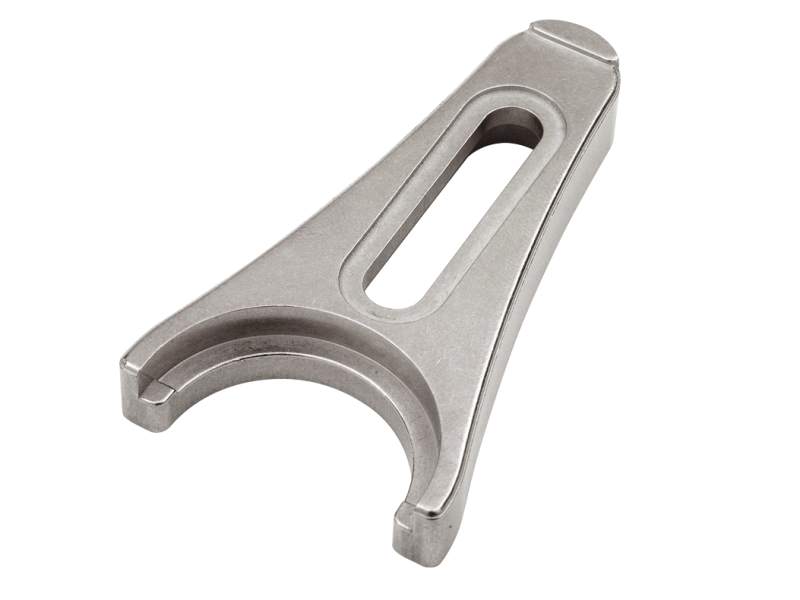

Clamping Fork, 1.0 in. Diameter Pedestals, 1/4-20 (M6) Slot

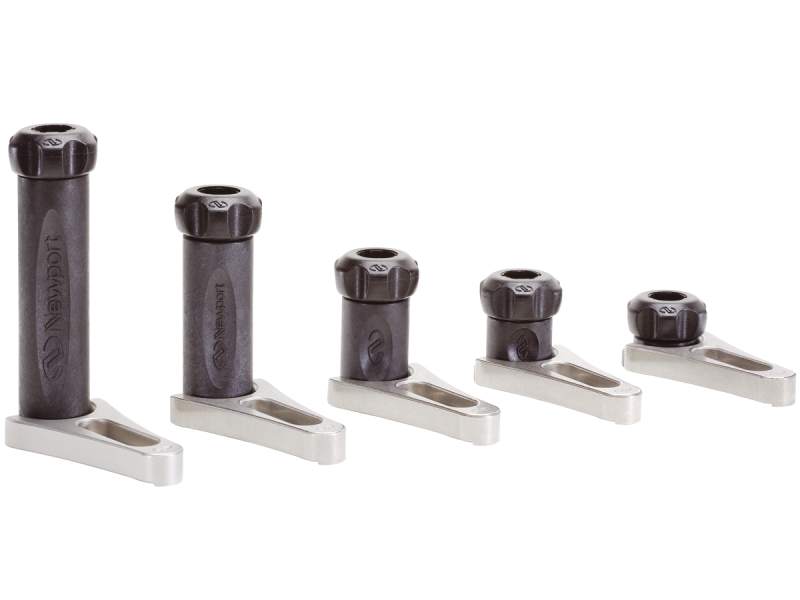

The PS-F Pedestal Base Clamping Fork secures a 1.0 in. (25.4 mm) diameter optical pedestal or pedestal base optical post holder anywhere on an optical table. This stainless steel clamping fork provides positioning flexibility with a 1.0 in. (25.4 mm) long 1/4-20 (M6) slot for secure mounting of optical pedestals. This product is also available in 10-piece saving pack
Resources & Downloads
Other
PS-F RoHS Certificate(278.5 kB, PDF)
2D Product Drawings
PS-F Drawing(45.4 kB, PDF)
