Sorry, this product is no longer offered for sale. It was discontinued on Apr 14, 2020The recommended replacement product is CONEX-SR50CC.

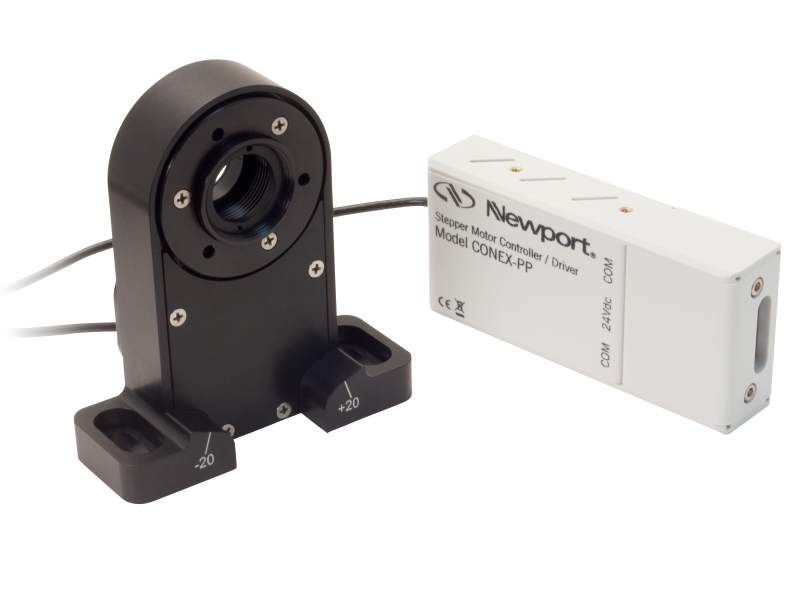

Motorized Rotation Stage, NSR1, CONEX-PP Integrated Controller

The CONEX-NSR1, with an integrated iPP stepper motor controller, is an economical and versatile rotary positioner for use as a filter wheel, a neutral density rotator, polarized optic rotator, flipper mount or basic rotation platform. It features a 1" threaded aperture, retaining ring and internal reference surface for 25.4 mm optics, a 1-° step resolution, and up to 120 °/s speed. The NSR1 serves as a base unit, and can be used as a rotator for 25.4 mm optics.

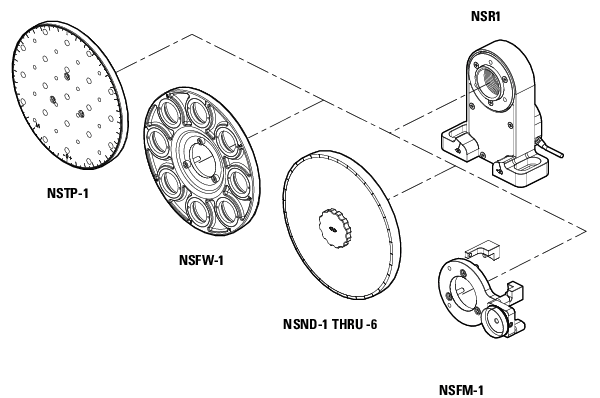

Accessories are also available, including a filter wheel (NSFW-1) for up to 8 - 25.4 mm optics, a 127 mm diameter variable ND filter adapter (NSND), a tooling plate (NSTP-1) featuring an array of tapped holes, and a unique set of adapters to transform the rotator into a motorized flipper mount (NSFM-1).

Power Supply and cables are sold separately.

Compact Controller and Stage

In terms of size, the CONEX-CC controller is comparable to a deck of cards. Depending on the motor type, up to 3 CONEX-PP or 6 CONEX-CC can fit on a CONEX-BP baseplate. Both controller and stage are compact and ideal for space-confined or access-limited applications. Newport also offers the stand alone version of these Low Profile Rotation Stages.

Scalable Architecture

The CONEX rotation units can be connected via daisy chain to create either multi-axis DC systems or multi-axis PP systems. For added convenience, the power can be shared with up to 5 CONEX-CC modules using the optional CONEX-PS-CB power chain cable. This allows for a convenient low cost multi-axis system. Additionally, analog and digital inputs can be implemented into the controller through the CONEX-IOD.

Out-of-the-box Control

For out-of-the box control, the CONEX controller is preconfigured and delivered with the motion device. To start moving a sample or sensor, it simply requires plugging in the power supply, connecting the USB communication and starting the free motion GUI.

Linear Amplifier in DC Units

The low-noise linear amplifier of the CONEX-CC provides the optimum drive solution for low-power DC motors; delivering smoother motion, with less electrical noise and significantly less motor heating.

Specifications

Technical Specs

Stage Type
NSR1
Travel Range
360°
Maximum Speed
120°/s
Maximum Torque
0.06 Nm
Minimum Incremental Motion
1.0°
Bi-directional Repeatability, Typical
±1.5°
Wobble, Typical
±300 µrad
Drive Type
2-phase stepper
Drive Mechanism
Belt
Reduction Gear
7.5:1
Feedback
Open-loop, no encoder

Bearings
Ball Bearings
Material
Aluminum
Aperture Diameter
25.7 mm
Weight
0.4 kg
Cable Length
3 m
Computer Interfaces
USB
MTBF
20,000 h (25% load, 10% duty cycle)
RoHS
Compliant

Stage Type
NSR1
Travel Range
360°
Maximum Speed
120°/s
Maximum Torque
0.06 Nm
Minimum Incremental Motion
1.0°
Bi-directional Repeatability, Typical
±1.5°
Wobble, Typical
±300 µrad
Drive Type
2-phase stepper
Drive Mechanism
Belt
Reduction Gear
7.5:1
Feedback
Open-loop, no encoder

Bearings
Ball Bearings
Material
Aluminum
Aperture Diameter
25.7 mm
Weight
0.4 kg
Cable Length
3 m
Computer Interfaces
USB
MTBF
20,000 h (25% load, 10% duty cycle)
RoHS
Compliant

Resources & Downloads

Software

CONEX-PP Utility Installer Win32.zip(1.7 MB, ZIP)
CONEX-NSR1_FW_GUI(289.9 MB, ZIP)

Manuals

CONEX-NSR1 Rotator User Manual(449.7 kB, PDF)
CONEX-PP Command Interface User Manual(779.7 kB, PDF)
CONEX-PP Controller GUI User Manual(2.4 MB, PDF)

2D Product Drawings

CONEX-NSR1.pdf(486.3 kB, PDF)

Literature

CONEX Datasheet(4.2 MB, PDF)
Conex-PP EU Declaration of Conformity(284 kB, PDF)
