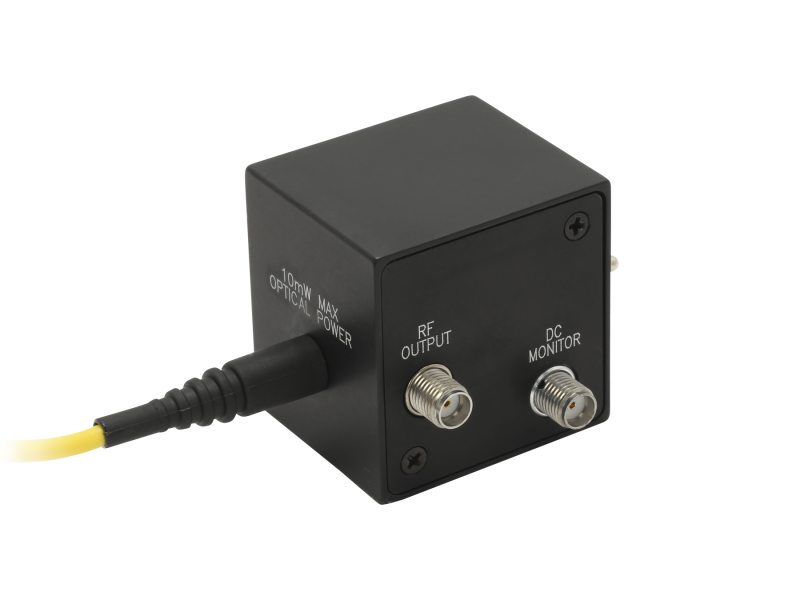

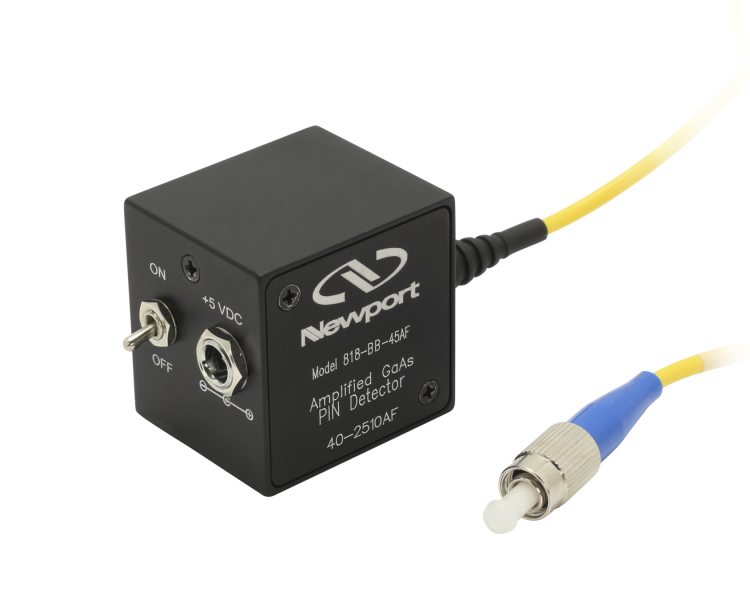

Amplified Photodetector, Biased, AC coupled, 400-900nm, GaAs, 10 GHz, FC/UPC

Technical Specs

  • Optical Input
    FC/UPC
  • Detector Material
    GaAs
  • Active Diameter
    0.060 mm
  • Detector Diameter
    0.060 mm
  • Detector Type
    Semiconductor PIN, biased
  • Wavelength Range
    500-890 nm
  • 3 dB Bandwidth
    20 kHz to 10 GHz
  • Fiber-Optic Connector
    FC/UPC
  • Fiber Type
    Singlemode
  • Bandwidth
    20 kHz to 10 GHz
  • Rise Time
    <35 ps
  • NEP
    50 pW/√Hz at 850 nm
  • Responsivity
    970 V/W at 850 nm
  • Output Connector
    SMA
  • Saturation Current
    45 mA
  • Amplified
    Yes
  • Bias Voltage
    5 V
  • Cut-off Frequency
    >10 GHz

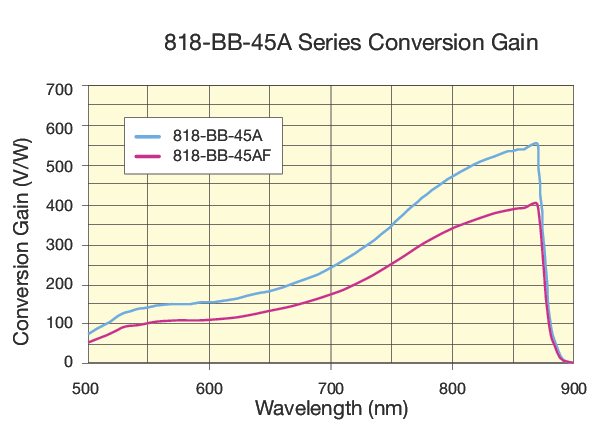

  • Conversion Gain, Typical
    380 V/W
  • Thread Type
    8-32 and M4
  • Fall Time
    <35 ps
  • Mounting Holes
    8-32 and M4
