Laser Diode Driver, 6A, 5V, USB, Not RoHS Compliant

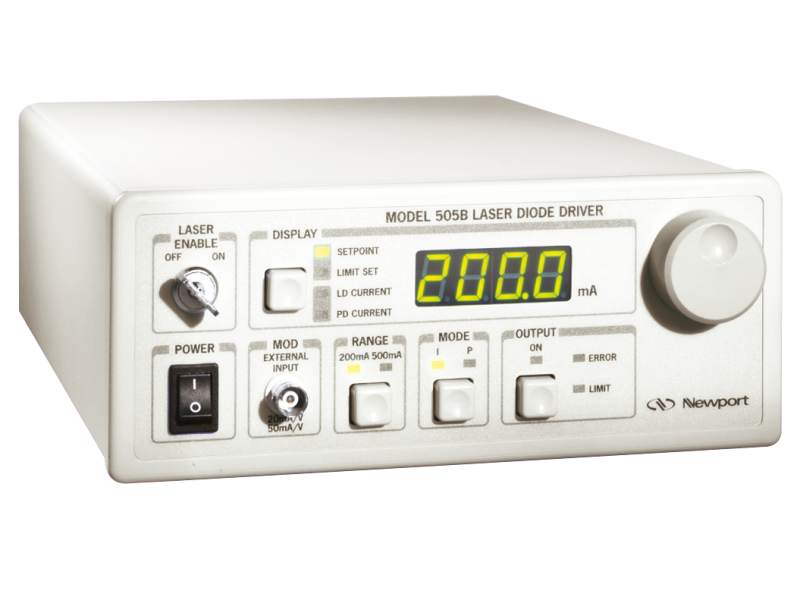

The 560B Laser Diode Driver offers all the performance of the most advanced laser diode controllers for a fraction of the price. Quiet and stable 3000 or 6000 mA current driver for use in the most demanding applications, such as spectroscopy and fiber optic communications. Intuitive front panel controls make this instrument extremely simple to use. There are two operating modes: constant current or constant laser power.
Dual current-level selection lets you optimize current resolution settings by precisely varying the output to the laser diode. Comprehensive laser diode safety features are built-in including redundant FET and relay shorting circuits to protect the laser diode at the beginning of the slow turn-on sequence. The current limit setting is fully independent. External analog modulation allows you to voltage-control or modulate the output. USB interface.

Note: Drivers and software are only compatible with Windows XP and earlier platforms. Not RoHS compliant.

How are you mounting your laser diode?

Specifications

Technical Specs

Laser Current
6 A
Laser Compliance Voltage
5 V
Temperature Coefficient
<50 ppm FS/°C
Computer Interfaces
USB
Power Requirements
100-120 VAC, 200-240 VAC
Laser Current Resolution
0.06 mA
Laser Output Noise/Ripple Low Bandwidth
<7.3 µA
Laser Output Noise/Ripple High Bandwidth
<10.9 µA
Transfer Function
300 mA/V
Current Output 24 h Stability
<50 ppm FS
Current Output 1 h Stability
<20 ppm FS
External Modulation High Bandwidth
DC to 300 kHz
External Modulation Low Bandwidth
DC to 10 kHz
Input Impedance
10 kΩ

Analog Input Range
-10 V to +10 V
Monitor Current Accuracy
±0.05
Monitor Current Range
0–50 mA
Photodiode Current Accuracy
±0.05
Photodiode Current Range
0–50.00 mA
Monitor Current 24h Stability
10 µA
Operating Humidity
<90% humidity non-condensing
Operating Temperature
0 to 40°C
Storage Temperature
-40°C to + 70°C
Laser Safety
Output On/Off keyswitch, interlock, output delay(meets CDRH US21 CFR 1040.10)
Weight
4.05 kg

Laser Current
6 A
Laser Compliance Voltage
5 V
Temperature Coefficient
<50 ppm FS/°C
Computer Interfaces
USB
Power Requirements
100-120 VAC, 200-240 VAC
Laser Current Resolution
0.06 mA
Laser Output Noise/Ripple Low Bandwidth
<7.3 µA
Laser Output Noise/Ripple High Bandwidth
<10.9 µA
Transfer Function
300 mA/V
Current Output 24 h Stability
<50 ppm FS
Current Output 1 h Stability
<20 ppm FS
External Modulation High Bandwidth
DC to 300 kHz
External Modulation Low Bandwidth
DC to 10 kHz
Input Impedance
10 kΩ

Analog Input Range
-10 V to +10 V
Monitor Current Accuracy
±0.05
Monitor Current Range
0–50 mA
Photodiode Current Accuracy
±0.05
Photodiode Current Range
0–50.00 mA
Monitor Current 24h Stability
10 µA
Operating Humidity
<90% humidity non-condensing
Operating Temperature
0 to 40°C
Storage Temperature
-40°C to + 70°C
Laser Safety
Output On/Off keyswitch, interlock, output delay(meets CDRH US21 CFR 1040.10)
Weight
4.05 kg
