Showing 10 of 12 total products
Compatibility:
Compare Description Drawings, CAD & Specs Avail. Price

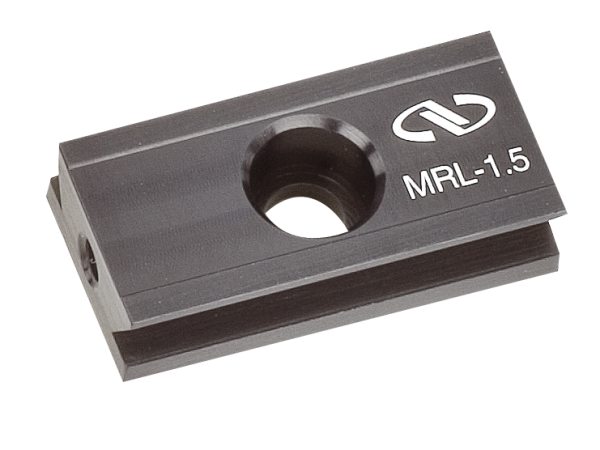

19 mm Miniature Optical Rails & CarriersMRL-1.5Optical Rail, Miniature, 1.5 in. Length, 8-32 Thread and 1/4-20 CLR
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$41

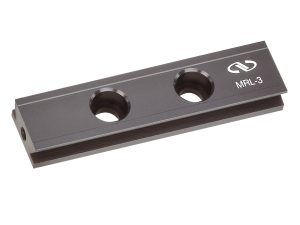

19 mm Miniature Optical Rails & CarriersMRL-3Optical Rail, Miniature, 3 in. Length, 8-32 Thread and 1/4-20 CLR
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$41

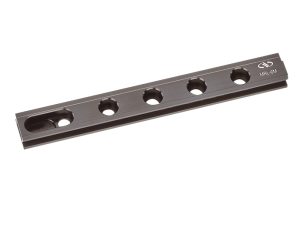

19 mm Miniature Optical Rails & CarriersMRL-6MOptical Rail, Miniature, 6 in. Length, 8-32 Thread and 1/4-20 CLR
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$63
19 mm Miniature Optical Rails & CarriersMRL-12MOptical Rail, Miniature, 12 in. Length, 8-32 Thread and 1/4-20 CLR
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$109

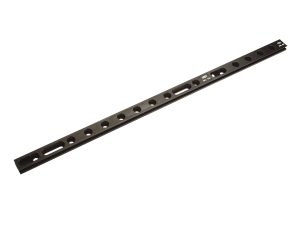

19 mm Miniature Optical Rails & CarriersMRL-18MOptical Rail, Miniature, 18 in. Length, 8-32 Thread and 1/4-20 CLR
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$160
19 mm Miniature Optical Rails & CarriersMRL-24MOptical Rail, Miniature, 24 in. Length, 8-32 Thread and 1/4-20 CLR
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$213
19 mm Miniature Optical Rails & CarriersM-MRL-1.5Optical Rail, Miniature, 37 mm, 19.1 mm Width, M4 Thread and M6 CLR
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$41
19 mm Miniature Optical Rails & CarriersM-MRL-3Optical Rail, Miniature, 75 mm, 19.1 mm Width, M4 Thread and M6 CLR
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$41
19 mm Miniature Optical Rails & CarriersM-MRL-6MOptical Rail, Miniature, 150 mm, 19.1 mm Width, M4 Thread and M6 CLR
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$63

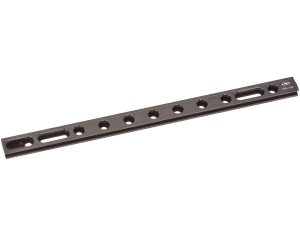

19 mm Miniature Optical Rails & CarriersM-MRL-12MOptical Rail, Miniature, 300 mm, 19.1 mm Width, M4 Thread and M6 CLR
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$109

Features

Low Profile Dovetail Design

These 19 mm miniature optical rails and carriers provide smooth carrier translation and wobble free clamp down with a precision dovetail design measuring just 0.375 in. (9.50 mm) high each. The dovetail construction allows components to be quickly attached, aligned, and rigidly held anywhere along the rail.

Six Standard Rail Lengths or Extend as Desired

Interconnecting link on MRL-6M and MRL-12M allows any length to be rigidly assembled in multiples of 6 or 12 in.
Miniature optical rails are available in six different standard lengths from 1.5 to 24. in. (37.0 - 600 mm) and attach easily together end-to-end to form custom lengths.

Three Versatile Rail Carrier Options

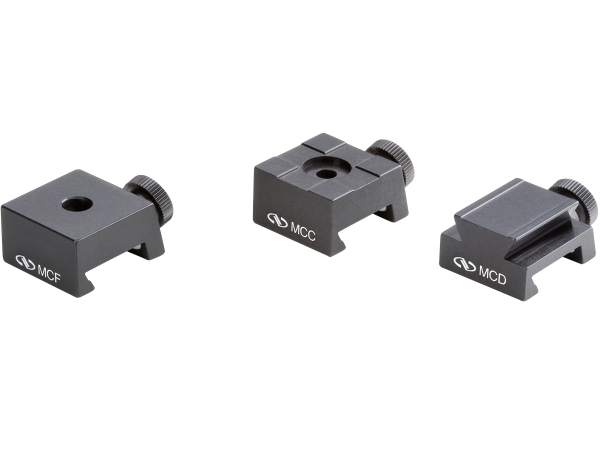

Miniature rail carriers can be positioned anywhere along an optical rail without removing other components with a simple snap down motion once the locking screw is released. Spring-loaded, hard polymer guides along the carriers' mating surfaces provide wobble free sliding motion and dependable linear alignment. They are tightened after realignment for a creep-free clamp down. MCC Mini Rail Channel Carriers have guide channels cut into the top surface to square-up the rail prior to mounting via the 8-32 (M4) clearance hole. The MCD Mini Rail Dovetail Carriers have a smooth dovetail mounting surface running perpendicular to the mounted direction. The MCF Mini Rail Flat Carriers have M6 clearance holes with 1/4-20 threads for mounting components to the surface.

Spacers for 3D Assemblies

With SS-2 Spacers three-dimensional structures, like beam steering devices, are easily assembled. The set includes 5 spacers.

Accessories

Miniature Optical Rail Carriers

Compare Description Drawings, CAD & Specs Avail. Price
MCDOptical Rail Carrier, Dovetail, Miniature Rail, MRL Series
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$41
MCFOptical Rail Flat Carrier, 1/4-20 (M6) CLR, MRL Series
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$41
MCCOptical Rail Carrier, Miniature, 8-32 (M4) CLR, MRL Series
In Stock
FREE 2-day shipping on thousands of
products on Newport.com Learn More
$41

Optical Rail Spacer Sets

Compare Description Drawings, CAD & Specs Avail. Price
SS-2Rail Spacer Set, 1/4-20 Thread, Qty 5
In Stock
$23

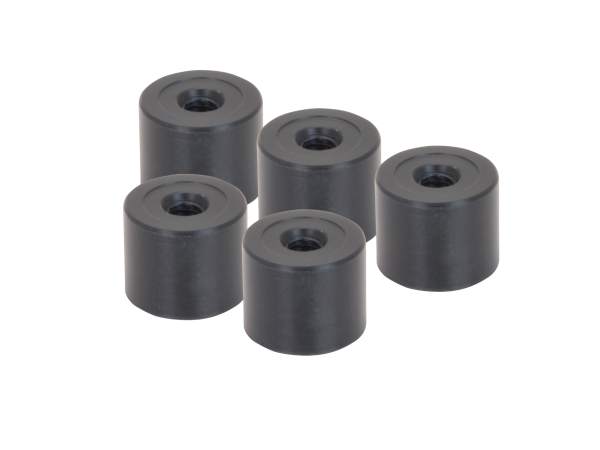

M-SS-2Rail Spacer Set, M6 Thread, Qty 5
In Stock
$23
