Compare Model Drawings, CAD & Specs Mirror Shape Diameter Coating Type Return Beam Accuracy Availability Price
$337
In Stock
50326-0505 Hollow Retroreflector 12.7 mm Bare Gold 5 arc sec
In Stock
$337
$266
50326-0510 Hollow Retroreflector 12.7 mm Bare Gold 10 arc sec $266
$475
In Stock
50326-0802 Hollow Retroreflector 19.1 mm Bare Gold 2 arc sec
In Stock
$475
$398
In Stock
50326-0805 Hollow Retroreflector 19.1 mm Bare Gold 5 arc sec
In Stock
$398
$322
In Stock
50326-0810 Hollow Retroreflector 19.1 mm Bare Gold 10 arc sec
In Stock
$322
$531
In Stock
50326-1002 Hollow Retroreflector 25.4 mm Bare Gold 2 arc sec
In Stock
$531
$449
In Stock
50326-1005 Hollow Retroreflector 25.4 mm Bare Gold 5 arc sec
In Stock
$449
$368
In Stock
50326-1010 Hollow Retroreflector 25.4 mm Bare Gold 10 arc sec
In Stock
$368
$572
In Stock
50326-1502 Hollow Retroreflector 38.1 mm Bare Gold 2 arc sec
In Stock
$572
$495
In Stock
50326-1505 Hollow Retroreflector 38.1 mm Bare Gold 5 arc sec
In Stock
$495
$444
In Stock
50326-1510 Hollow Retroreflector 38.1 mm Bare Gold 10 arc sec
In Stock
$444
$276
In Stock
50394-2530 Hollow Retroreflector 63.5 mm Bare Gold 30 arc sec
In Stock
$276

Specifications

Note: Specifications below are common to all products presented. See Individual product details for complete information.

  • Mirror Shape
    Hollow Retroreflector
  • Coating Type
    Bare Gold
  • Material
    Aluminum
  • Return Beam Accuracy
    See model
  • Surface Quality
    80-50 scratch-dig
  • Diameter
    See model
  • Coating Adhesion
    MIL-F-48616
  • Humidity Resistance
    MIL-F-48616
  • Operating Temperature Range
    -40 to 60°C
  • Thread Type
    10-24 x 0.2 in. depth

Features

Stable Monolithic Construction

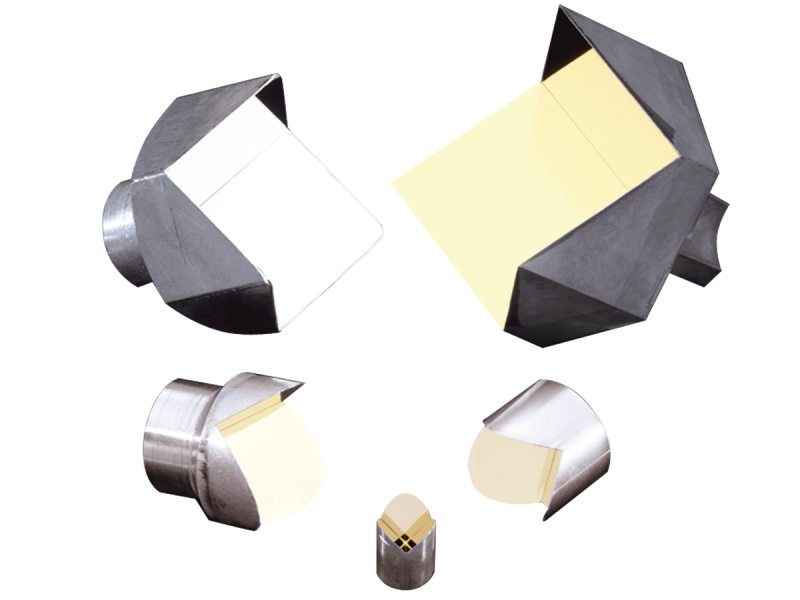

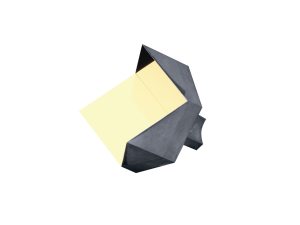

Our replicated hollow metal retroreflectors are monolithic, fabricated from a single piece of aluminum, resulting in return beam accuracy unaffected by vibration. Vibration sensitivity is reduced further by employing an integrated mount in the design.

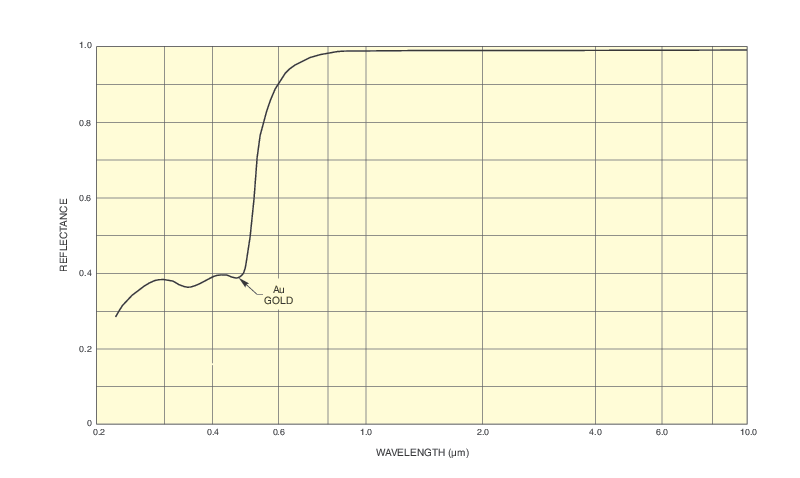

Gold Coating with High IR Reflectivity

Front surface coated with gold for high reflectivity in the IR and deep IR.

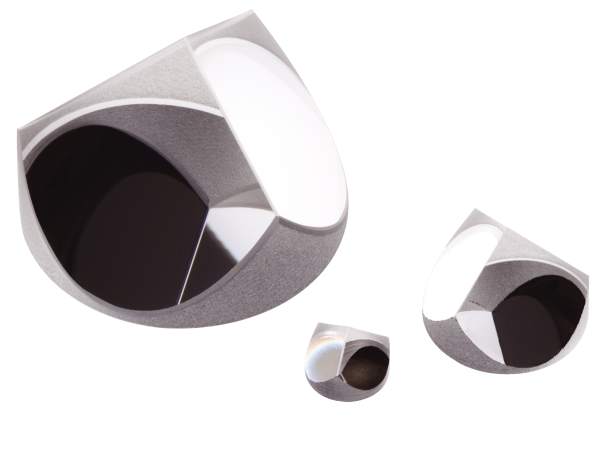

Advantages vs. Glass Retroreflectors

Unlike solid glass retroreflectors, the optical path is entirely in air so efficient performance is obtained without antireflection coatings which limit the operating wavelength range. Using a novel patented fabrication technique, parallelism up to 1 arc sec and wavefront distortion ≤λ/3 is economically achieved. These retroreflectors are offered in 12.7, 19.1, 25.4, 38.1, or 63.5 mm diameter apertures and 30, 10, 5, or 2 arc sec parallelism.

Alignment Free 180 Degree Reflection

Retroreflectors, also known as corner cubes as all three mirror surfaces are perpendicular, will reflect all incoming light 180° regardless of incidence angle. This enables 180 degrees reflection of a beam without requiring prior alignment (as with a flat mirror). Images reflected by a corner cube are reversed and inverted.
