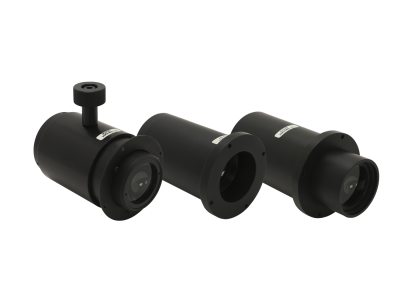

Q Series Condenser Lenses

Q series condensing lens assemblies are compatible with the model 60000 Q series lamp housing. Up to four condensers may be installed, which can provide simultaneous illumination of multiple samples. The lens assemblies can be used to create a unique light source configuration or reconfiguring an existing light source system.

Condenser Lenses for Q Series lamp housings
Up to 4 can be installed for simultaneous illumination
Asphere or plano-convex lenses
1.5 Inch flange for beam routing

See All Features

Show Filters:

Showing 4 of 4 total products

Compatibility:

Description	Compatibility	Condenser Type	F/#	Lens Material	Lens Transmittance Range	Lens Multiplication Factor	Avail.	Price

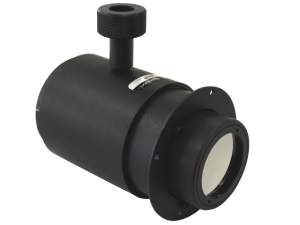

60008Condensing Lens Assembly, Q Series Lamp Housing, F/0.85 Asphere	UNIVERSAL	Asphere	F/0.85	Borofloat® 33	350 - 2500 nm	0.13	4 Weeks	$570

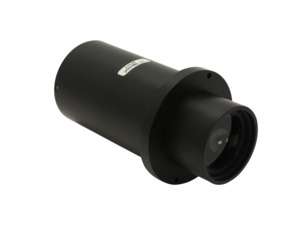

67017Condensing Lens Assembly, Q Series Lamp Housing, F/1 Asphere	UNIVERSAL	Asphere	F/1	UV Fused Silica	200 - 2500 nm		Contact Us	$1,095

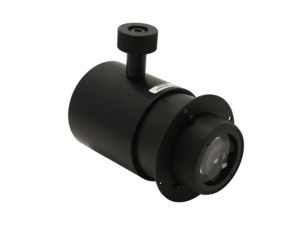

60076Condensing Lens Assembly, Q Series Lamp Housing, F/1 Plano-Convex	UNIVERSAL	Plano-Convex	F/1	UV Fused Silica	200 - 2500 nm	0.11	6 Weeks	$730

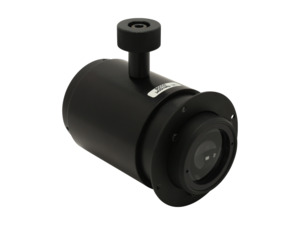

60006Condensing Lens Assembly, Q Series Lamp Housing, F/1.5 Plano-Convex	UNIVERSAL	Plano-Convex	F/1.5	UV Fused Silica	200 - 2500 nm	0.06	4 Weeks	$415
