1.5 in. Optical Breadboard Support Posts

XP Series 1.56 in. (39.7 mm) diameter support posts allow heavy optical breadboard systems to be safely supported above a flat surface. The XP Series posts can attach directly to Microlock Tiedowns, unique to Newport breadboards, and are available in four different heights. To achieve intermediate heights, P Series Platform Pillars can be attached between the breadboard and support post.

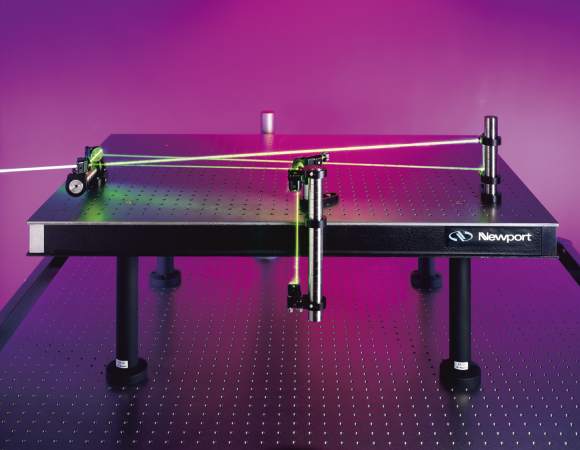

Mount an optical breadboard above an optical table surface
Attaches directly to Microlock tiedowns in optical breadboards
Heights of 5 in. (127 mm), 10 in. (254 mm), 15 in. (381 mm), and 20 in. (508 mm)

See All Features

Description	Compatibility	Mounting Holes	Height	Avail.	Price
XP-5Support Rod, Microlock Breadboard, 5 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	1/4-20	5 in.	In Stock	$148

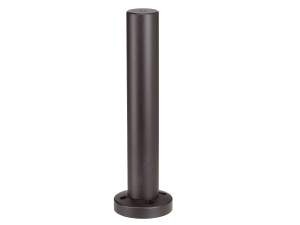

XP-10Support Rod, Microlock Breadboard, 10 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	1/4-20	10 in.	In Stock	$150

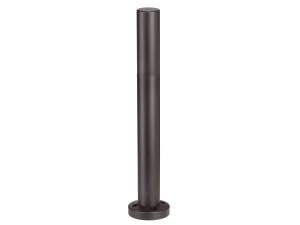

XP-15Support Rod, Microlock Breadboard, 15 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	1/4-20	15 in.	In Stock	$169

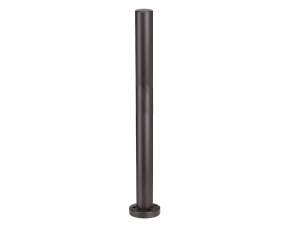

XP-20Support Rod, Microlock Breadboard, 20 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	1/4-20	20 in.	In Stock	$185

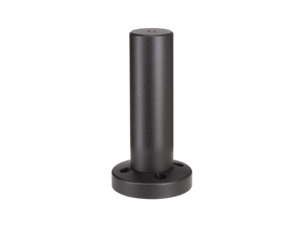

M-XP-5Support Rod, Microlock Breadboard, 127 mm Height, 39.7 mm Diameter, M6	METRIC	M6	127 mm	In Stock	$148
M-XP-10Support Rod, Microlock Breadboard, 254 mm Height, 39.7 mm Diameter, M6	METRIC	M6	254 mm	In Stock	$150

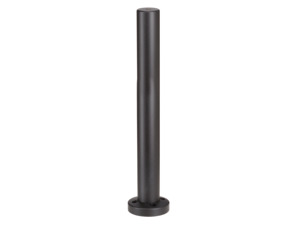

M-XP-15Support Rod, Microlock Breadboard, 381 mm Height, 39.7 mm Diameter, M6	METRIC	M6	381 mm	Contact Us	$169

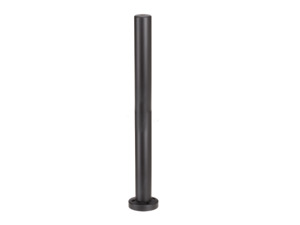

M-XP-20Support Rod, Microlock Breadboard, 508 mm Height, 39.7 mm Diameter, M6	METRIC	M6	508 mm	In Stock	$185

Specifications

Type
Optical Breadboard Support Post

Diameter
1.56 in. (39.7 mm)

Features

Support Heavy Optical Breadboard Assemblies

Breadboard support posts allow heavy optical breadboard systems to be safely supported above a flat surface or optical table. The robust stainless steel supports are specifically designed to support heavy breadboard assemblies. Optical breadboards provide a portable platform with a mounting hole grid for building stand-alone optical assemblies or for extending the mounting area available on an optical table. Newport optical breadboards range from economic Solid Aluminum Breadboard Plates all the way to the top-of-the-line Precision Grade Optical Breadboards.

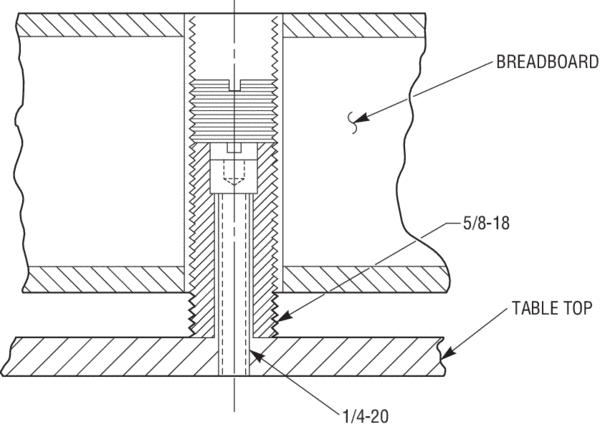

Compatible with Microlock Tiedowns

Microlock Tiedowns, optional on breadboards, are a unique Newport innovation that provide versatile and positive attachment of the breadboard directly to a table, XP Series Support Posts, or any other object with 1/4 -20 (M6) threaded holes. The Microlocks provide a vertical adjustment range of at least 1 in. (25 mm), positive locking of the height, and solid attachment to the primary structure of the board for optimum stability. Repositioning the Microlocks and/or adding more to a breadboard can be handled at the time of the breadboard order.
