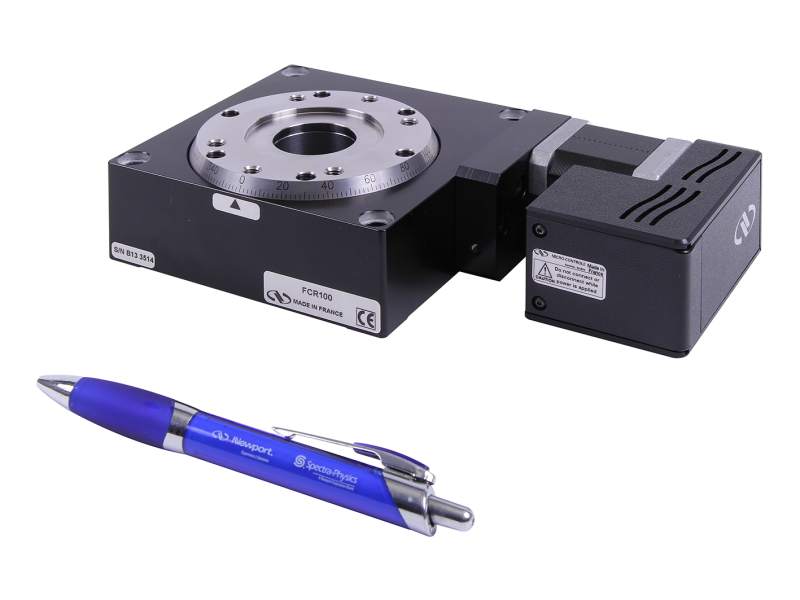

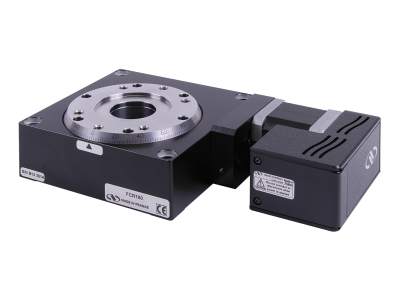

FCR100 Intelligent Stepper Motor Rotary Stages
FCR100 Intelligent Stepper Motor Rotary Stages
The economical FCR Series of rotary stages separates itself with a built-in plug-and-play stepper motor controller and driver, while maintaining good in-position and speed stability.
- Built-in stepper motor controller with iPP technology, eliminating external controller or driver integration
- Fully pre-configured with USB communication and enables out-of-the-box control
- Up to 4 FC units can be daisy-chained and controlled with the same GUI or multiple units via USB hub or RS-422 interface
- Most economical stage available without compromising MIM
- Stepper motor provides more torque and better speed stability at low speeds See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | FCR100Motorized Rotation Stage, Precision, Stepper Motor, Continuous 360° Motion |
Specifications
- Angular Range360°
- Maximum Speed20°/s
- Minimum Incremental Motion0.25 mdeg
- Maximum Torque0.5 Nm
- Centered Load Capacity300 N
- Uni-directional Repeatability, Typical±0.50 mdeg
- Uni-directional Repeatability, Guaranteed±1.0 mdeg
- Bi-directional Repeatability, Typical±2.5 mdeg
- Bi-directional Repeatability, Guaranteed±6.0 mdeg
- Accuracy, Typical±10 mdeg
- Accuracy, Guaranteed±20 mdeg
- Wobble, Typical±12 µrad
- Wobble, Guaranteed±25 µrad
- Eccentricity, Typical±1.4 µm
- Eccentricity, Guaranteed±3.0 µm
- Transversal Compliance20 µrad/Nm
- OriginOptical, centered
- Origin Repeatability±2.5 mdeg
- MTBF20,000 h (25% load, 10% duty cycle)
- Aperture Diameter30 mm
- Computer InterfacesRS422 and USB
- Weight2.25 kg
- RoHSCompliant
Features
Built-in stepper motor controller with iPP technology
Example of a multi-axis configuration. Note that FC-PS40 power supply and USB-RS422-1.8 adapter cable must be purchased separately.
The FCR's design brings together a rotary stage with a built-in controller and driver for easy integration. Not only is the controller pre-configured with intelligent stepper motor technology, iPP, but the stage is also ready for plug-and-play via USB connection. The built-in controller eliminates the need for an external controller and cables, thus saving work-space and cost.
Daisy-Chain up to 4 FC units
Example of a daisy-chaining configuration. Note that FC-PS40 power supply, FC-CB1 communication cable, and USB-RS422-1.8 adapter cable must be purchased separately.
With a RS-422 interface, the FC series is equipped to easily daisy-chain and synchronize communication with up to 4 stages.
Robust Design
The optimized aluminum body allows for extreme stiffness without compromising weight. The rigid body reduces deflection under load. Features of the FEM-Optimized FCR100 includes: robust construction of crossed roller bearing for high position accuracy and the stepper motor directly attached to the worm screw providing high output torque.

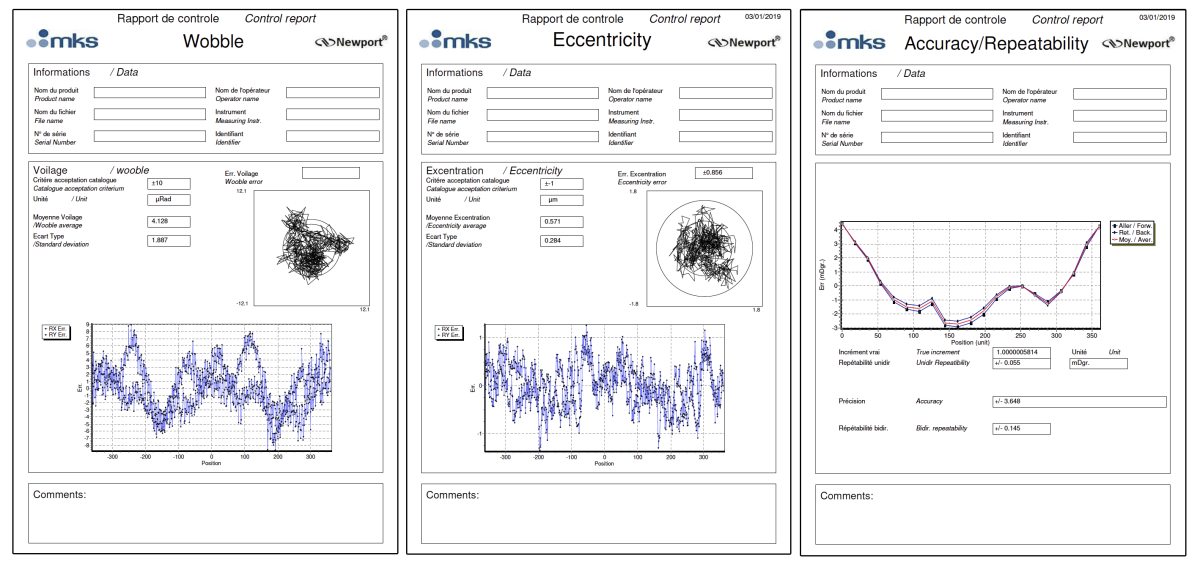

Metrology Report Included at No Additional Cost
Newport guarantees specification values which are measured and recorded following ASME B5.57 and ISO 230-2 standards. The typical performance values are two times better than the guaranteed specifications.
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | FC-CB1Communication Cable, daisy chain, RS422, 1 meter | |||||
 | FC-PS40Power supply, iPP step motor, RoHS | |||||
 | USB-RS422-1.8Cable Adapter, USB to RS422, 1.8 m Length |
