Heat-Reflecting Hot Mirrors
Heat-Reflecting Hot Mirrors
Hot mirrors are heat-reflecting mirrors that are designed to work as a shortpass edge filter by transmitting visible wavelengths at a 0° angle of incidence, while reflecting near-infrared, heat-generating wavelengths.
- Remove unwanted heat from an optical system
- Reflect NIR heat & transmit VIS light at 0°
- 25.4 mm diameter or 50.8 mm square filters See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

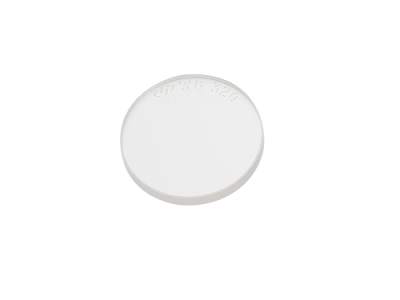

 | 10HMR-0Hot Mirror, 25.4 mm, 0° AOI, 420-690 nm Transmittance | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

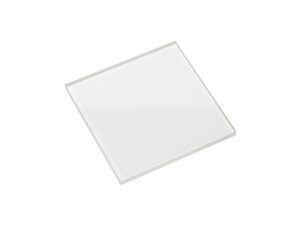

 | 20HMS-0Hot Mirror, 50.8 x 50.8 mm, 0° AOI, 420-690 nm Transmittance | FREE 2-day shipping on thousands of products on Newport.com Learn More |
Specifications
- TypeHot Mirror
- Angle of Incidence0° ±15°
- Transmittance Range420-690 nm
- Transmission≥85%
- Reflectance Band725-1550 nm
- ReflectanceRavg≥90% 725-1550 nm
- MaterialBorofloat® borosilicate float glass
- Surface Quality80-50 scratch-dig
- Surface Flatness6–8λ per 25.4 mm at 546.1 nm over the clear aperture
- Thickness3.3 mm
- Thickness Tolerance±0.2 mm
- Size Tolerance±0.4 mm
- Clear Aperture≥central 90% of dimensions
- Temperature Range-100 to 500°C
Features

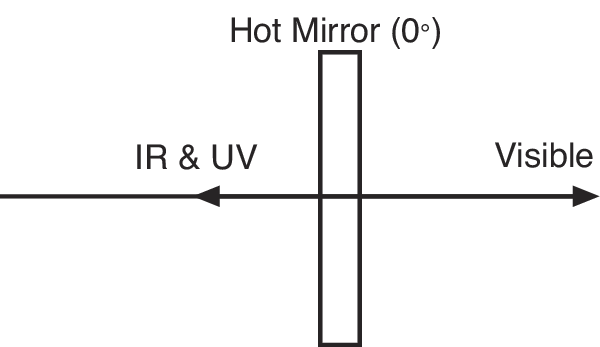

Reflect Heat Away From Optical Systems
Hot mirrors reflect IR and UV wavelengths while transmitting visible wavelengths at a 0° angle of incidence.
Hot Mirror Transmission by Wavelength
