Granite Base Plates for XM Motorized Stages
Granite Base Plates for XM Motorized Stages

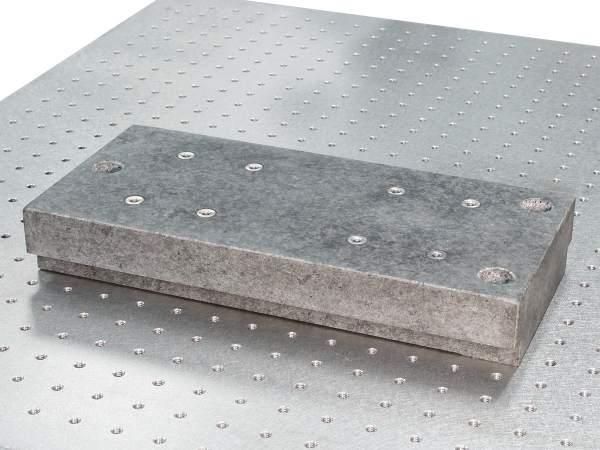

For critical positioning applications requiring tight positioning accuracy and repeatability of a motion system, flatness of the mounting surface becomes a major factor. Polished granite surfaces are among the flattest, commercially available structures.
- High Performance with surface flatness within 2 µm
- Compensates for non-flat tables
- Compatible with XM linear translation stages
- Edge handles for easy grip and positioning See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | GB100Granite Base, 150 x 250 x 50 mm, XMS100 Linear Motor Stages | |||||
| GB160Granite Base, 150 x 330 x 50 mm, XMS160 Linear Motor Stages | |||||
| GB210Granite Base, 220 x 460 x 50 mm, XML210 Linear Motor Stages | |||||
| GB350Granite Base, 220 x 670 x 50 mm, XML350 Linear Motor Stages | |||||
| GB50Granite Base, 150 x 200 x 50 mm, XMS50 Linear Motor Stages |
Features
Compensates for Non-flat Optical Tables
The GB series granite base plates feature 3-point mounting, to offset non-flat tables. Edge handles facilitate handling and locating the base plate on the work surface.
Compatible with XM Series Linear Stages
Granite’s tight flatness tolerance and extreme hardness make it an attractive option to complement Newport’s Ultra-Precision XM Series Linear Motor Stages.
