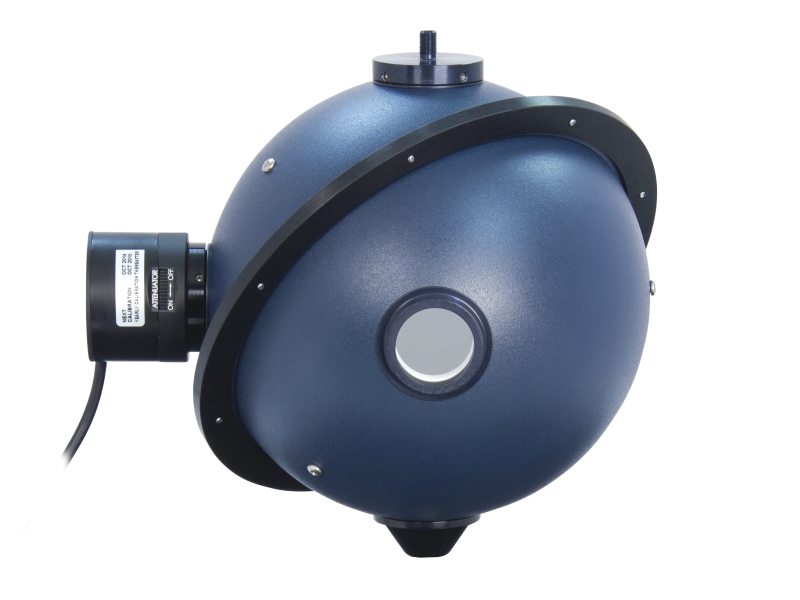

Integrating Sphere Detector, Collimated Beam, 5.3 in., 400-1100 nm

  • Detector Type
    Collimated Beam Integrating Sphere
  • Detector Input
    Free Space
  • Detector Material
    Silicon
  • Spectral Range
    400 - 1100 nm
  • Sensor Size
    Ø11.3 mm
  • Attenuator
    OD1, Built-in
  • Maximum Measurable Power
    4000 mW
  • Minimum Measurable Power
    100 nW
  • Maximum Measurable Power Benchtop Meter
    4.0 W
  • Maximum Measurable Power Handheld Meter
    2.0 W
  • Maximum Measurable Power Without Attenuator
    450 mW (Benchtop Meter)
    240 mW (Handheld Meter)
  • Calibration Module
    DB15 Connector Pigtail
  • Calibration Uncertainty without Attenuator
    ±2.5% @ 400-1000 nm
    ±3% @ 1001-1100 nm
  • Calibration Uncertainty With Attenuator
    ±2.5% @ 400-1000 nm
    ±3% @ 1001-1100 nm
  • Linearity
    ±1.0 %
  • Sphere Size
    5.3 in.
  • Sphere Material
    PTFE
  • Input Port Size
    1.0 in.
  • Connector Type
    DB15
  • Cable Length
    2 m
